10 Essential Bow Shackle Safety Tips for Lifting Operations

A bow shackle carries the full weight of your load, and one mistake can cause equipment failure, injury, or death. Follow these ten essential tips for safe shackle use in any lifting operation:

1. Check it before every use.

2. Pick the right type for the job.

3. Never go over the working load limit.

4. Keep the load centered on the bow.

5. Think about sling angles.

6. Fasten the pin the right way.

7. Never swap in a different pin.

8. Avoid sudden, heavy pulls.

9. Watch heat and chemical limits.

10. Take out damaged shackles.

These shackle safety basics match ASME B30.26 and OSHA rules. Knowing how to pick, check, and use shackles keeps your team safe. Using shackles right on every lift stops serious accidents.

Key Takeaways

• Check your bow shackle before each lift to find damage early.

• Pick the correct shackle type and pin for your lifting task.

• Never go over the working load limit stamped on the shackle.

• Put the load in the middle of the bow and do not load it from the side to keep its full strength.

• Remove damaged shackles from service right away and tag them 'DO NOT USE'.

1. Inspect Before Every Use

A careful visual check is your first defense against shackle failure. You must inspect before every use, with no exceptions. This practice follows ASME B30.26 and OSHA 29 CFR 1926.251 requirements. Both standards require a pre-use check of all rigging equipment before each lift. Skipping this step puts your whole operation at risk.

What to Look For

Your inspection rules for shackles follow a clear set of removal conditions. You need to check the shackle pin and body for any visible damage. Start with the load-bearing parts. Look for bent, twisted, distorted, stretched, elongated, cracked, or broken load-bearing parts. These conditions require immediate removal from service.

Look closely at the surface condition. Too much pitting or corrosion changes the metal's integrity. Nicks and gouges create stress points that weaken the shackle. Heat damage shows up as blue or straw discoloration, weld spatter, or arc strikes. Any of these signs means the shackle has lost its rated strength.

Check the pin threads carefully. Thread damage beyond 20% of the engaged length requires removal. Incomplete pin engagement also disqualifies the shackle. Measure the body and pin dimensions. A 10% reduction from the original or catalog dimension at any point means the shackle fails inspection. Check the manufacturer's markings. Missing or unreadable identification removes the shackle from service.

Consequences of a Defect

Using a defective bow shackle creates catastrophic risk. A hidden crack or bend can cause sudden failure under load. The shackle may break without warning, dropping the load instantly. This failure can injure workers below or damage expensive equipment.

Deformation of the body and pin often means the shackle was overloaded before. The metal has stretched beyond its elastic limit. It cannot return to its original shape or strength. Even a small bend greatly reduces the shackle's capacity. The bow may elongate, letting the pin slip or the load shift.

Corrosion eats into the metal surface, creating weak spots. These areas concentrate stress during lifting. A corroded shackle may look usable but fail at a fraction of its rated load. The results go beyond the immediate incident. Failed equipment requires investigation, documentation, and replacement. Your team loses time and productivity. More importantly, someone could suffer serious injury or death.

Remember that inspection takes only minutes. The cost of skipping this step far exceeds the time saved. Make inspection a non-negotiable habit before each lift. Your crew's safety depends on this simple practice.

2. Choose the Correct Type of Shackle

Picking the right shackle for your lift stops gear from breaking and keeps your team safe. You must match the shackle design to the load direction, sling type, and work area. Using the wrong style creates dangerous stress points that can cause sudden failure.

Bow vs. Dee Shackles

Bow shackles, also called anchor (bow) shackles, handle loads from many directions with ease. Their round shape lets the load shift and pull at angles without putting stress on one point. Dee shackles have a narrow "D" shape made for straight-line pulls only. You should never side-load a Dee shackle because its shape cannot handle angled forces.

The load angle directly affects the working load limit of any shackle. At 0 degrees, or in-line loading, you get 100 percent of the rated capacity. At 45 degrees of side load, the capacity drops to 70 percent. At 90 degrees, you lose half the rated capacity. As forces pull away from center, a bending moment forms along the bow. Stress builds where the bow meets the shackle ears, which is why even a small angle change greatly lowers capacity.

For construction and infrastructure work, alloy D shackles with screw pins work well for fast, repeated lifts. Offshore and marine operations need stainless bow shackles with safety pins for harsh, shaking environments. Utilities and telecom crews use small galvanised D shackles for light, daily rigging. Warehousing and logistics operations gain from bow shackles that handle multiple sling connections with ease.

Pin Types and Applications

Screw pin shackles let you install and remove them quickly. You thread the pin by hand and tighten it before lifting. These work well for temporary rigging, frequent connect and disconnect, and pick-and-place operations. However, you should not use them in high-vibration environments because the pin may loosen under constant movement.

Bolt-type shackles include a bolt, nut, and cotter pin for secure fastening. These resist loosening and give excellent security for critical lifts. Use them for semi-permanent or permanent installations, offshore platforms, oil and gas sites, and mining operations. The added parts take longer to install but provide superior vibration resistance.

Always pick the right shackle for the job by matching size and capacity to your specific lift. Check the manufacturer's markings and confirm the working load limit meets or exceeds your load needs. A proper match between shackle type and application keeps your operation safe and efficient.

3. Never Exceed the Working Load Limit

The working load limit is the heaviest weight a bow shackle can safely hold during normal use. Manufacturers set this number as a part of the shackle's tested breaking strength. They use a safety factor, usually between 4:1 and 6:1. This means the breaking strength is four to six times the rated load. For example, a 2-ton WLL shackle might break at 8 to 12 tons. You must pick a shackle with a working load limit at least equal to the total load on it. Crosby carbon steel shackles use a 6:1 design factor.

Reading the WLL Markings

You will find the WLL stamped into the metal on the shackle body or pin. This number is not the breaking strength. ASME B30.26 requires certain markings on every shackle. The body must show the maker's name or trademark, the rated load, and the size. The pin must show the maker's name or trademark and the grade, material type, or load rating. These markings must stay clear and readable for the whole life of the shackle.

A typical mark might say "WLL 25T" for a 25-ton capacity. You may also see a CE mark for European rules, an angle indicator, or a QUIC-CHECK mark for fast visual checks. Always confirm the WLL meets your load needs before rigging. Never go over the working load limit for any reason.

The Risks of Overloading

Overloading a shackle causes severe problems. When you pass the WLL, the metal stretches past its elastic limit. The shackle cannot go back to its original shape or strength. Permanent damage follows. The throat opening may widen, the bow may stretch, or the pin may bend. ASME B30.26 says to remove the shackle when wear goes past the maker's limits.

Visible cracks, especially at the bow crown or pin hole edges, mean the shackle may fail soon. Overloading also causes heat damage, which looks like color changes or weld spatter. Any of these signs means the shackle has lost its rated strength. A bent shackle may break without warning under load. This can drop the load instantly, hurting workers below or damaging costly gear. Always check for damage before each lift and take out any weak shackle right away.

4. Center the Load on the Bow Shackle

The load must sit in the middle of the bow, never on the pin. The pin holds the shackle together, but the bow carries the weight. When you center the load on the bow, the metal shares stress evenly across its widest section. This position gives you the full working load limit stamped on the shackle.

Rule 4: Center the Load on the Bow – Shackles are designed to handle their maximum capacity when the load is applied in a straight line and centered on the bow. To achieve this, use properly engineered washers or spacers to center the lug on the pin, preventing side-loading conditions.

Proper Load Alignment

For a single sling, aim for a 0 to 5 degree angle in the bow. This near-vertical alignment keeps the load centered on the bow and delivers maximum capacity. A straight-line pull along the shackle's centerline lets the bow carry the full rated load without bending forces.

Sometimes the rigging hardware does not line up on its own. You can pack the pin with washers or spacers to shift the lug into the middle of the bow. This simple step centers the load and stops the shackle from pulling to one side. Always check the alignment after you tighten the pin.

The Danger of Side-Loading

Side-loading happens when the load pulls at an angle instead of straight down the centerline. This condition drastically reduces the shackle's capacity. The bow bends, stress concentrates at the ears, and the metal weakens.

At 45 degrees, you lose about 30 percent of the rated capacity. At 90 degrees, you lose half. A 10-ton shackle pulled at 90 degrees acts like a 5-ton shackle. The load may exceed the reduced limit and cause sudden failure.

Always rig your slings to pull straight through the bow. Never let a sling leg pull sideways against the pin or the bow's edge. Check the setup before every lift and correct any angle that puts stress on one side.

5. Account for Sling Angles

How Angles Increase Tension

When you widen the angle between two sling legs, the tension in each leg climbs fast. A wider spread pushes the legs closer to horizontal. Each leg then carries more force to hold the same load. This extra force flows straight into your bow shackle and lifting points.

A two-leg hitch with a 10-ton load shows the effect clearly. At a 90-degree angle from horizontal, each leg carries 5 tons. Drop to 60 degrees, and each leg carries 5.77 tons. At 45 degrees, each leg pulls 7.07 tons. At 30 degrees, each leg carries 10 tons, which doubles the stress on the shackle. Keep sling angles at 60 degrees or higher whenever you can. If the angle gets too small, use a spreader beam or longer slings to open it back up.

Using the Angle Factor

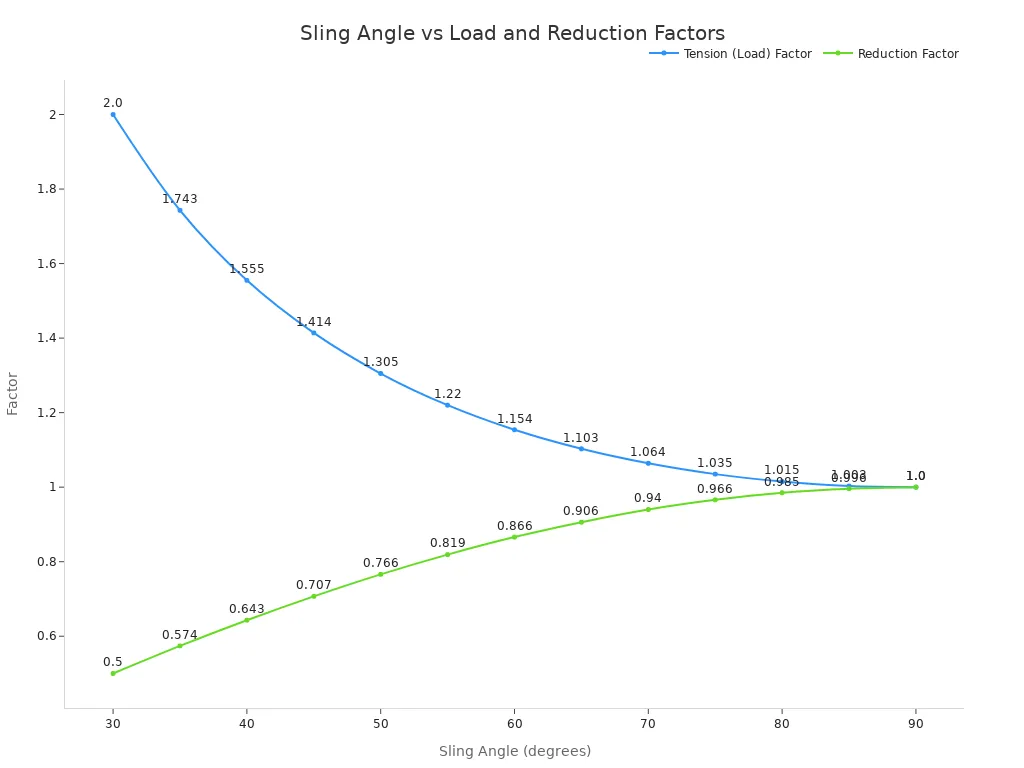

The angle factor is a multiplier that shows how much tension grows as the angle drops from vertical. At 90 degrees, the factor is 1.000, so no extra tension exists. At 60 degrees, the factor rises to 1.154. At 45 degrees, it reaches 1.414. At 30 degrees, it doubles to 2.000.

To find the load on each leg, divide the load weight by the number of legs, then multiply by the tension factor. A 1,000 lb load on two legs at 45 degrees gives (1,000 / 2) x 1.414 = 707 lbs per leg. You must compare this result against the shackle's working load limit before you lift.

A 60-degree angle raises tension by about 15 percent over a vertical pull. A 90-degree angle adds nothing. That gap matters when your load sits near the shackle's rated capacity. Always account for sling angles in your lift plan, and size every shackle for the real tension, not just the load weight.

6. Secure the Pin Properly

Full Engagement

You must put the shackle pin through the holes in the shackle ears. Then turn it into the body. Tighten the pin by hand until the shoulder sits firmly against the shackle ear. This hand-tight fit makes sure the pin is seated and secured before you attach any load. If needed, use a small bar or marlinspike to make it snug. Do not overtighten, because that can damage the threads or the shackle body.

Before every lift, check that the pin is fully engaged and tightened the way the manufacturer directs. Look for movement, vibration, or contact with other parts that could make the pin rotate or loosen during use. A pin that backs out even a little lowers the shackle's capacity and creates a serious drop hazard.

Preventing Unthreading

Mousing uses wire to keep a screw pin from rotating. Only use wire if the exact shackle's instructions allow it. Wire is not a general substitute for picking the right shackle and checking the pin before every lift. For long-term service or setups where the pin could rotate, follow the manufacturer's instructions and think about a bolt-type shackle with the specified nut and cotter pin.

Never force, hammer, or wedge a shackle that is too small into position. This practice damages the pin threads and distorts the bow. A forced shackle may seem secure, but the metal has already weakened. Always match the shackle size to the rigging hardware and let the pin engage smoothly by hand.

7. Never Substitute Pins

A shackle pin is not a common fastener you can swap out. You must never replace a lost or damaged pin with a bolt, a rod, or any pin you cannot identify. The pin and body work as a matched pair. The manufacturer rates them together as one unit. A substitute part breaks that match and takes away the safety margin.

The Risk of Non-OEM Parts

Original equipment manufacturer (OEM) pins carry a certain load rating. That rating matches the shackle body's working load limit. A non-OEM pin has no such rating. You cannot know its strength, its material grade, or when it might fail. It may look the same, but it can break without warning under a load the original pin would handle with ease.

The metal grade matters a lot. OEM pins use alloy steel that meets strict standards for strength and ductility. A hardware-store bolt may use mild steel with much lower strength. It may also have a different thread pitch that fits poorly. Poor fit means the pin can strip or back out during a lift. ASME B30.26 requires that pins meet the same performance standards as the shackle body. A substitute pin cannot meet that requirement.

Why a Bolt is Not a Pin

A bolt is made for clamping, not for lifting. Its threads and shank are sized for static tension in a joint, not for moving loads on a shackle. A bolt head also lacks the shoulder that sits against the shackle ear. Without that shoulder, the bolt cannot center the load or pass force the right way. The bow then carries stress it was not built to handle.

Using a modified or uncertified shackle creates serious legal and safety problems. OSHA 29 CFR 1926.251 requires that all rigging equipment meet the manufacturer's specifications. A shackle with a substitute pin breaks that rule. If an accident happens, you and your employer face citations, fines, and possible lawsuits. More importantly, a worker could suffer serious injury or death. Never modify a shackle. Never use a pin you cannot identify. Remove any shackle with a missing or damaged pin from service and replace it with a certified OEM part.

8. Avoid Shock Loading

What is Shock Loading?

Shock loading means a sudden, rapid application of force. It happens when a load jerks, drops, or swings into motion instead of rising smoothly. A crane that snatches a load off the ground creates shock loading. So does a load that falls a short distance before the sling goes tight.

Shock loading multiplies the effective load on a shackle far beyond its working load limit. The metal must absorb the energy of the sudden pull, not just the weight of the load. A brief spike can push stress past the shackle's rated capacity. The bow may stretch, the pin may bend, and the shackle may fail without warning. This kind of overloading often leaves no time to react.

Rule 8: Avoid Shock Loading – Never jerk a load or let it drop onto a slack sling. A sudden pull can spike the force on a shackle well past its rated capacity.

Smooth Lifting Techniques

Take up slack slowly before the load leaves the ground. Raise the hook until the slings go tight, then pause and check the rigging. This step lets you spot a shifted sling or a loose pin before the full weight comes on. Once everything looks right, lift with a steady, controlled motion.

Avoid jerking the controls or changing speed abruptly. A smooth start and stop keeps the force on the shackle close to the load's actual weight. Use proper rigging techniques, such as softeners on sharp edges and slings sized for the load. Never drag a load sideways or let it swing free. Train every operator to lift with patience, because speed on the controls creates the very spikes that break hardware.

9. Consider Temperature and Chemical Limits

Temperature and chemicals change how shackle metal acts. You must know these limits before you rig.

Effects of Extreme Temperatures

Normal alloy steel shackles keep their full Working Load Limit between -40°F and 400°F. Outside that range, you need special gear or expert advice. ASME B30.26 Section 26-1.6.1 says you must ask the manufacturer or a qualified person when temperatures go above 400°F or below -40°F.

Heat changes metal strength fast. Carbon steel starts to lose capacity above 400°F. At 800°F, a shackle may lose up to 50 percent of its rated load. Cold also makes problems. Some bow shackles get more brittle below -20°F. The metal loses its ability to bend and take shock. A sudden load spike can crack the shackle instead of flexing it.

Check the manufacturer's specs for safe operating temperatures.

Chemical Exposure and Corrosion

Chemicals attack shackle metal in two ways. Corrosion eats away the surface. Embrittlement changes the metal's inside structure. Both weaken the shackle without any visible warning.

Saltwater and high humidity cause serious corrosion. This corrosion can cut the working load limit by 20 to 30 percent. Acids and alkalis also harm shackles. Depending on the chemical and the material, you may need to derate the shackle by 10 to 50 percent.

Hydrogen Embrittlement: Hydrogen atoms get into the metal and make it brittle. The shackle may look fine but break all at once under load. You cannot see this damage during a visual inspection.

Ask the manufacturer for chemical exposure limits. Match your shackle material to your work area. When you are not sure, use a material that resists more or replace the shackle more often.

10. Remove Damaged Shackles from Service

Any shackle that shows signs of damage must leave service right away. This rule has no exceptions. A damaged shackle cannot go back to its rated strength. You cannot fix it with paint, grease, or good intentions. The metal has already changed. Your only safe action is removal.

How to Tag and Quarantine

Follow a clear procedure when you find a damaged shackle. This process stops accidental reuse and keeps your crew safe.

1. Check the shackle for heat damage, unauthorized welding, or other changes. Look for burn marks, discoloration, arc strikes, weld spatter, or signs of heating.

2. Remove the shackle from service right away if you find any such damage or unauthorized change.

3. Follow the manufacturer's or a qualified person's instructions for the removed shackle. Field repairs such as welding or straightening are never allowed.

4. Replace the shackle right away if it meets any removal criteria. These include wear over 10%, bent or cracked load-bearing parts, unreadable markings, damaged threads, or heat damage.

After removal, tag the shackle clearly. Write "DO NOT USE" on the tag. Include the date and the reason for removal. Then quarantine the shackle in a locked container or a designated scrap area. This step keeps someone from grabbing it by mistake. A shackle sitting on a workbench looks available. A tagged shackle in a locked bin sends a clear message.

A shackle with serious damage should be removed from service and clearly marked so nobody uses it by mistake. Do not repair, weld, heat, or reshape a lifting shackle without written approval from the manufacturer.

The Dangers of "Just One More Lift"

The phrase "just one more lift" has caused more accidents than any other excuse. You see a slightly bent shackle. The job is almost done. The load looks light. You think one quick lift will be fine. That thinking ignores the physics of metal failure.

A damaged shackle has already lost its safety margin. The working load limit no longer applies. The metal may hold at half its rated load, or it may fail at a quarter. You cannot predict the breaking point. Overloading a damaged shackle multiplies the risk. The sudden failure drops the load without warning, and workers below have no time to react.

Every damaged shackle you remove protects your team. Every damaged shackle you keep invites disaster. Make the call to remove it before the lift, not after. Your crew's safety depends on your willingness to say no to "just one more lift.

These ten tips are not a choice. They are your job in every lift. Check your gear first, pick the right one, use it the right way, and respect the limits. That keeps your crew alive. A bow shackle that passes inspection, fits the load, and stays within its rating will last for years. Following ASME B30.26 and OSHA rules protects your team and your business. Accidents happen when speed beats caution. Slow down, check your gear, and never take a chance with a damaged shackle. Safety is a choice you make before every lift. Make it every time.

FAQ

How often should I inspect a bow shackle?

Inspect the shackle before every single lift. ASME B30.26 and OSHA 29 CFR 1926.251 both require a pre-use check of all rigging gear. A quick visual exam takes minutes and catches cracks, bends, or thread damage before they cause failure.

Can I use a bow shackle for a straight vertical pull?

Yes. A bow shackle handles vertical pulls well. Center the sling in the bow at 0 to 5 degrees for full capacity. The round bow also accepts angled loads that a Dee shackle cannot take safely.

What size shackle do I need for an angled lift?

Size the shackle for the real tension, not just the load weight. Tension climbs as the sling angle widens. At 45 degrees, each leg carries about 1.414 times its share of the load. Always compare that figure against the working load limit.

Can I replace a lost shackle pin with a bolt?

Never. A bolt is made for clamping, not lifting. It lacks the rated strength and the shoulder that centers the load. Only use an OEM pin that matches the shackle body. A substitute pin can fail without warning.

What should I do with a shackle that shows wear?

Remove it from service at once. Tag it "DO NOT USE" with the date and reason. Then quarantine it in a locked bin or scrap area. Never repair, weld, or heat a lifting shackle. Replace it with a certified part.
