Product Introduction

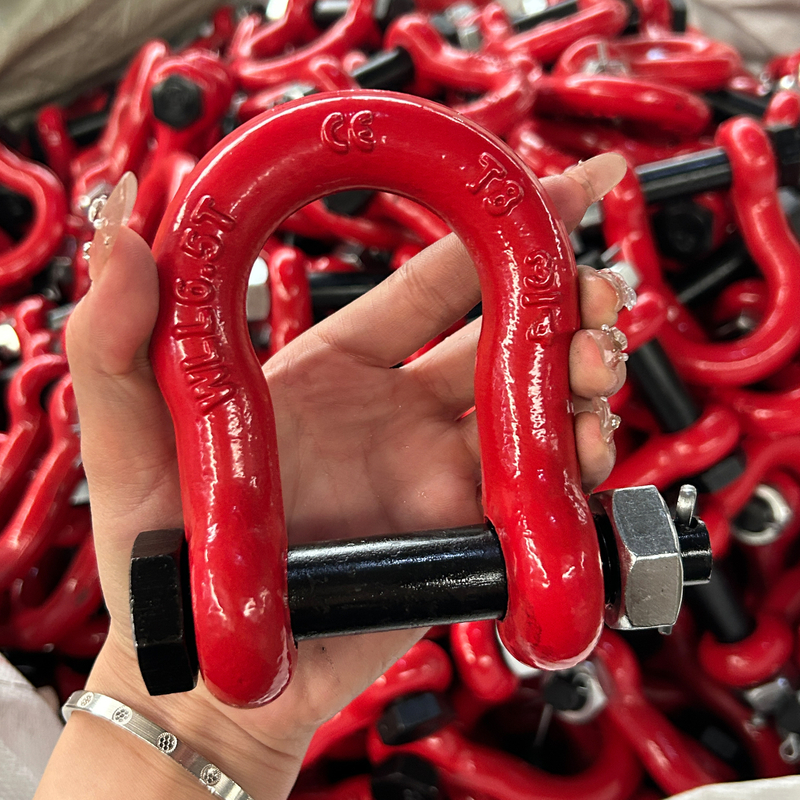

The G2130 Bow Shackle is a high-strength, alloy steel shackle designed for demanding lifting and rigging operations. Built with a bow-shaped structure, it provides superior load distribution and enhanced stability, making it ideal for industries like construction, maritime engineering, and heavy industry. With a focus on reliability, safety, and long-lasting performance, this product ensures secure lifting in various challenging environments. Order today to experience the highest level of safety and efficiency in your lifting operations!
Product Advantage
The bow-shaped design distributes weight evenly across the shackles, reducing localized pressure on the ropes and chains, minimizing wear, and extending their lifespan. This feature ensures safer and more reliable lifting operations, especially in heavy-duty tasks such as construction and heavy machinery handling.
Made from high-quality alloy steel, this shackle undergoes rigorous heat treatment to achieve superior tensile and yield strength. It can handle significant tensile and impact forces, making it perfect for high-intensity operations, ensuring durability and longevity in the toughest environments.
The hot-dip galvanizing process creates a strong, corrosion-resistant layer, providing long-lasting protection in harsh environments such as marine or industrial settings. This surface treatment extends the product's lifespan and reduces maintenance costs, ensuring the shackle performs reliably for up to 10 years.
The G2130 Bow Shackle is designed with a safety nut and cotter pin, which prevent loosening during operations. This safety feature, combined with a robust safety factor (4:1 or 6:1), ensures that the shackle maintains a secure connection even under high-stress conditions, offering peace of mind for critical lifting operations.
The shackle’s design and materials make it suitable for various industries, including construction, maritime, energy, and mining. Its ability to handle multi-directional forces and different lifting applications makes it a versatile choice for professionals in demanding fields.
Product Parameters
| Parameter Category | Details |
|---|---|
| Basic Information | - Product Name: G2130 Bow Shackle - Standards Compliance: ASME B30.26, ISO 2415-2004 - Material: High-strength alloy steel - Manufacturing Process: Forged, quenched, and tempered |
| Load Capacity | - Working Load Limit (WLL): 0.5T – 85T - Test Load: 2 × WLL - Breaking Load: ≥4 × WLL - Safety Factor: 4:1 or 6:1 |
| Dimensions | - Pin Diameter: 6mm – 100mm - Bow Inner Width: 12mm – 200mm - Overall Length: 30mm – 450mm - Unit Weight: 0.1kg – 50kg (varies by size) |
| Surface Treatment | - Standard: Hot-dip galvanizing (corrosion and rust resistance) - Optional: Electro-galvanizing, powder coating |
| Structural Features | - Design: Bow-shaped (evenly distributes load, adapts to multi-directional forces) - Pin Type: Screw pin with safety nut and cotter pin (anti-loosening) - Marking: Permanent laser engraving of WLL, size, and standard info |
Product Applications
Used in heavy lifting for cranes, hoists, and cables to connect construction materials like steel beams and precast concrete panels. It also secures temporary structures such as scaffolding and formwork.
Essential for lifting components during shipbuilding or repair, as well as for offshore platforms to secure subsea equipment and mooring systems in saltwater environments.
Links chains or straps to secure heavy cargo on trucks, ships, or railcars, ensuring safe and stable transport of industrial machinery and oversized items.
Utilized for lifting machinery and ore in both underground and open-pit mines, as well as in factory assembly for moving heavy equipment like turbines and presses.
Aids in lifting components for power plants and renewable energy projects, including wind turbines and solar panel installations.
Employed in search and rescue operations to lift debris or vehicles, as well as in towing applications for disabled vehicles in off-road settings.
FAQ
A: Yes, but when subjected to lateral or diagonal forces, the actual load-bearing capacity may be lower than the rated load. It’s recommended that the angle not exceed 45 degrees to maintain the full load-bearing capacity.
A: Yes, the hot-dip galvanizing treatment ensures excellent corrosion resistance, especially in harsh environments like marine or chemical industries, extending the service life to 5-10 years. Electro-galvanizing or powder coating is suitable for indoor, dry environments, but may require more maintenance.
A: These shackles are widely used in construction, maritime, logistics, mining, energy, and emergency rescue industries due to their versatility, strength, and reliable performance.
A: The G2130 Bow Shackle has a safety factor between 4:1 and 6:1, providing a sufficient margin of safety for critical lifting operations.
A: Regular inspection for wear and tear is recommended. If used in corrosive environments, periodic cleaning and re-coating may be necessary to maintain the surface protection and extend the service life.
