Product Advantage
✔ Ultra high strength: The fracture strength can reach 10000~30000 pounds (4.5~13.6 tons), meeting the rescue needs of heavy-duty off-road vehicles.
✔ Lightweight and durable: weighing only 1/5 of a metal shackle, easy to carry, and rust free, corrosion-resistant, and UV resistant.
✔ Safe and reliable: No risk of metal splashing, avoiding secondary injury in case of force fracture.
✔ Protecting the vehicle: Made of soft material that does not damage the winch, trailer hook, or body paint, suitable for multi angle towing.
✔ Wide compatibility: Suitable for various rescue equipment such as winches, trailer belts, rescue ropes, D-rings, etc.
| Feature | Synthetic Soft Shackle | Metal Shackle |
|---|---|---|
| Weight | Ultra-light (~200-400g) | Heavy (1-2kg+) |
| Safety | No metal projectile hazard | Risk of violent failure & shrapnel |
| Corrosion Resistance | 100% waterproof & rust-proof | Prone to rust, requires maintenance |
| Vehicle Protection | Zero damage to paint/winch lines | May scratch surfaces/abrade cables |
| Angular Load Capacity | Works at any pull angle | Limited by rigid connection stress |
| Ease of Use | Hand-tightenable, no tools needed | Requires wrench/spanner |
| UV Resistance | Excellent UV stability | Paint chips expose bare metal |
| Cold Weather Performance | No brittleness in freezing temps | Metal becomes brittle in extreme cold |
Product Parameters
| Parameter | Specification | Notes |
|---|---|---|
| Material | Ultra-High Molecular Weight Polyethylene (UHMWPE) / Dyneema® SK75/SK78 | Military-grade synthetic fiber |
| Breaking Strength | 10,000-30,000 lbs (4.5-13.6 metric tons) | Varies by diameter |
| Working Load Limit (WLL) | 1/3 of breaking strength (3,300-10,000 lbs) | Industry standard safety factor |
| Weight | 0.44-0.88 lbs (200-400g) | 80% lighter than steel equivalent |
| Diameter Options | 3/8", 7/16", 1/2", 5/8" | Color-coded for easy identification |
| Temperature Range | -60°F to +180°F (-51°C to +82°C) | No performance degradation |
| UV Resistance | 500+ hours UV exposure rating | With protective coating |
| Water Absorption | 0% | Fully hydrophobic material |
| Abrasion Resistance | Double-braided protective sleeve | Extends service life 3x |
| Certifications | Meets ISO 9001, CE standards | Third-party tested |
| Color Options | Orange, Yellow, Blue, Black | High-visibility available |
| Packaging | Individual PVC pouch or bulk pack | 10/25/50 units per case |
| Diameter | Breaking Strength | WLL | Weight | Recommended Use |
|---|---|---|---|---|
| 3/8" | 10,000 lbs (4.5T) | 3,300 lbs | 200g | ATV/UTV recovery |
| 7/16" | 17,000 lbs (7.7T) | 5,600 lbs | 300g | Jeep/4x4 standard |
| 1/2" | 23,000 lbs (10.4T) | 7,600 lbs | 350g | Full-size trucks |
| 5/8" | 30,000 lbs (13.6T) | 10,000 lbs | 400g | Heavy-duty recovery |
Product Applications
Synthetic soft shackles are versatile, high-strength solutions for recovery, rigging, and load management. Made from ultra-strong fibers like Dyneema®, they outperform metal shackles in safety, weight, and corrosion resistance.

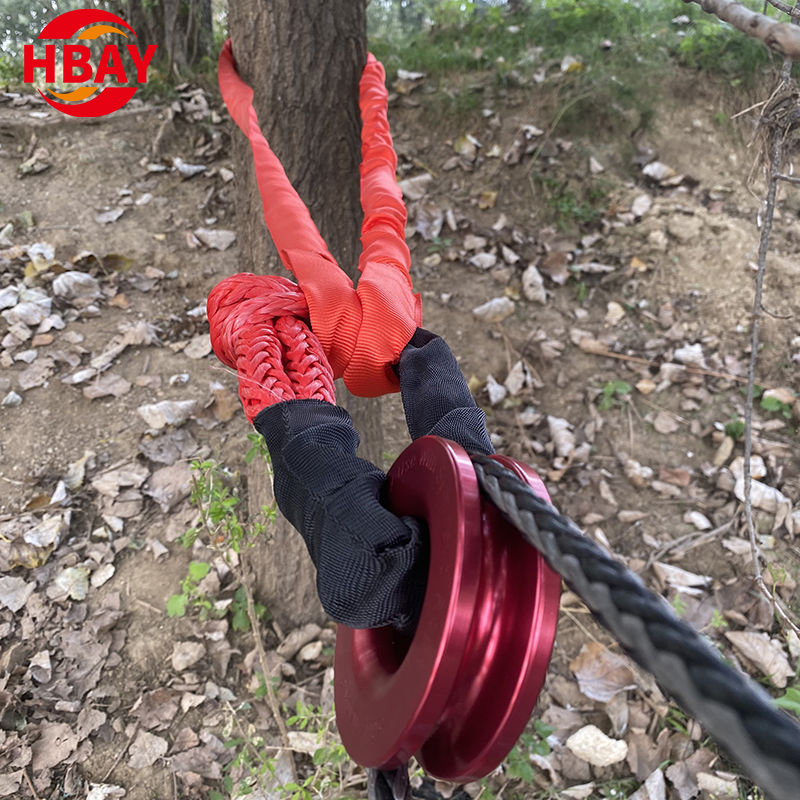

Off-Road Recovery: Safe for winching and towing, with no damage to vehicles or ropes.
Marine: Corrosion-proof, floats in water, ideal for anchors and rigging.
Industrial: Spark-free, non-conductive, perfect for lifting and cargo securement.
Agriculture: Rust-resistant for tractors, hay bales, and field repairs.
Military/Tactical: Lightweight, silent, and reliable in extreme conditions.
Overlanding/Camping: Compact and strong for tents, recovery, and gear tie-downs.
Product Operate Guide
Check for Damage: Look for cuts, fraying, or excessive wear on fibers.
Verify Load Rating: Ensure the shackle’s WLL (Working Load Limit) matches your recovery needs.
Clean if Dirty: Remove dirt/sand that could cause abrasion.
Loop Positioning: Pass the soft shackle’s loop through the anchor point (D-ring, tow hook, etc.).
Secure the Knot: Tighten the shackle’s knot by pulling the free end firmly.
Avoid Sharp Edges: Use edge protectors if contacting rough surfaces.
Align Load Evenly: Prevent side-loading or twisting.
Monitor Tension: Stay within the WLL—never exceed 1/3 of the breaking strength.
No Shock Loads: Apply force gradually (no jerking).
Rinse if Wet: Use fresh water after saltwater/mud exposure.
Dry Thoroughly: Store in a cool, dry place away from UV when not in use.
Retire if Worn: Replace if fibers appear damaged or stretched.
