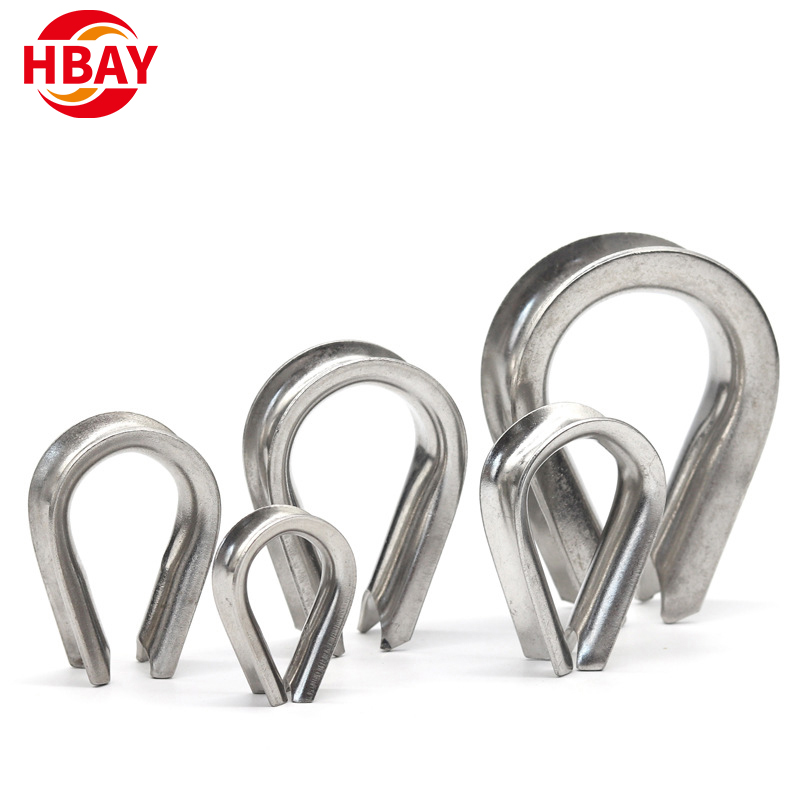

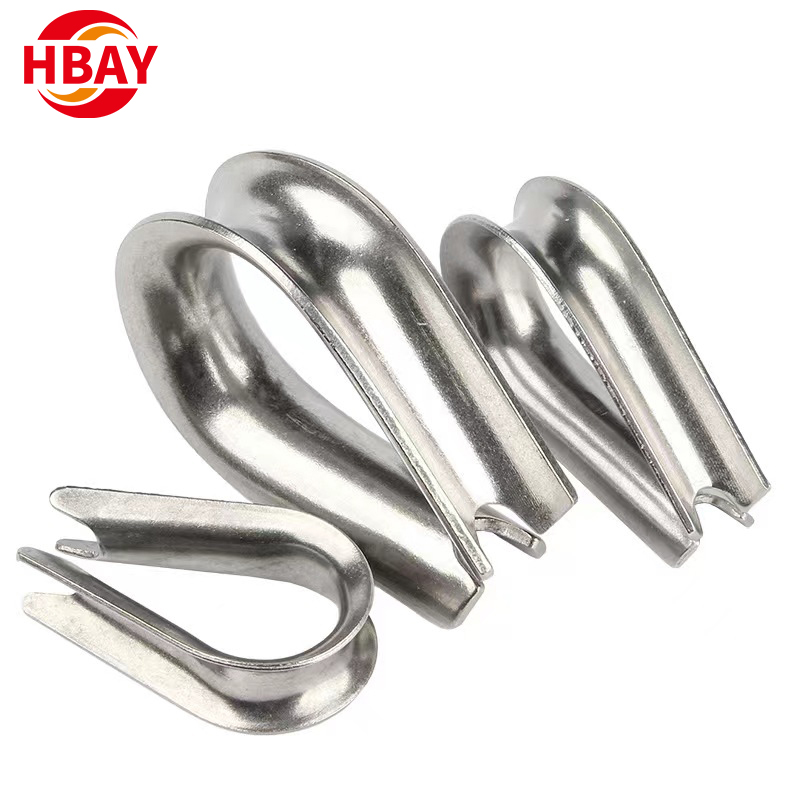

304/316 Stainless Steel Wire Rope Thimble for lifting

High strength material, safe and durable

The chicken heart ring is forged from high-quality carbon steel or alloy steel, and some products have undergone hot-dip galvanizing treatment, with a tensile strength of over 800MPa and a corrosion resistance improvement of over 50%. It is suitable for harsh environments such as humidity and high temperature. The strict ISO 9001 quality management system ensures that products comply with international standards such as GB/T 5974 and DIN 6899, ensuring safe and reliable lifting operations.

High strength chicken heart ring, hot-dip galvanized chicken heart ring, alloy steel forging, ISO 9001 certification, corrosion-resistant rigging

Optimize structural design to reduce wire rope wear

The unique heart-shaped structure can evenly distribute stress, reduce local friction of the steel wire rope, and extend its service life by more than 30%. The inner wall is smooth and free of burrs, avoiding the risk of rope cutting. It is suitable for high-intensity operations such as port hoisting, mining traction, and ship mooring, ensuring long-term stable operation.

Wear resistant chicken heart ring, steel wire rope protective ring, port lifting accessories, high-strength rigging connectors

Multi functional adaptation and wide applicability

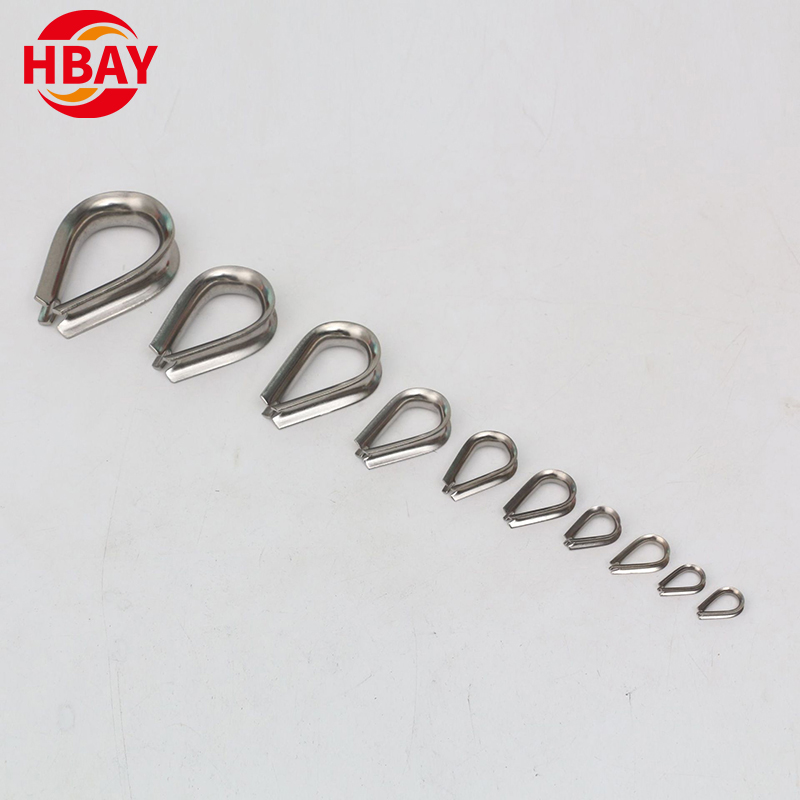

We offer a variety of specifications (10mm-100mm) to accommodate steel wire ropes of different diameters, with a load-bearing range of 1T-50T. Our heavy-duty lifting chicken heart rings meet the needs of various industries such as construction, logistics, and marine engineering. It can be flexibly matched with accessories such as shackles, hooks, pulleys, etc. to improve operational efficiency and is the core component of heavy-duty lifting systems.

Heavy lifting chicken heart rings, adjustable rigging accessories, multi specification steel wire rope loops, engineering machinery connectors

Through the above advantages, the chicken heart ring has become a safe, efficient, and durable rigging solution, helping enterprises reduce maintenance costs and improve operational safety.

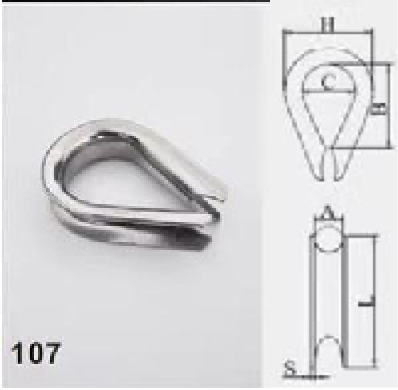

WIRE ROPE THIMBLE	AISI304/AISI316
	Rope(φA)	B	C	H	S	L	WT
	mm	mm	mm	mm	mm	mm	kg
	2	14	7	11.5	0.8	20	0.001
	3	16	10	16	0.8	23	0.002
	4	18	11	17	1	25	0.003
	5	22	12.5	20		32	0.005
	6	25	14	22	1	37	0.007
	8	34	18	29	1.5	48	0.017
	10	43	24	37	1.5	56	0.026
	12	48	27.5	42	1.5	67	0.040
	14	50	33	50	2	72	0.060
	16	64	38	55	2	85	0.079
	18	68	41	61	2.5	93	0.124
	20	72	43	65	2.5	101	0.143
	22	77	43	67	2.5	106	0.172
	24	77	49	73	2.5	110	0.198
	32	94	62	90	3	134	0.370

Applicable wire rope diameter: Ensure that the chicken heart ring matches the wire rope to avoid being too tight or loose, which may affect safety.

Breaking load (kN): The maximum tensile force that a product can withstand before breaking. The higher the value, the stronger the safety.

Working load (T): Recommended safe weight, usually 1/5 of the breaking load, in compliance with industry safety standards.

Material/Surface Treatment

Carbon steel: economical and practical, suitable for general industrial environments.

Alloy steel: High strength, suitable for heavy-duty and impact operations (such as mining and ships).

1、Port and dock lifting operations

Chicken heart rings are widely used in port container lifting, ship mooring and other scenarios. Their high strength and corrosion resistance can withstand long-term use in seawater environments. Paired with steel wire ropes and shackles to ensure safe lifting of heavy goods, reduce rope wear, and improve operational efficiency.

Port hoisting chicken heart rings, corrosion-resistant steel wire rope loops, container rigging accessories

2、Construction engineering and high-altitude operations

In construction sites such as tower cranes and bridge construction, chicken heart rings are used to secure steel wire ropes and ensure lifting stability. Its optimized structure can disperse impact force, prevent rope breakage, and is suitable for frequent lifting operations to ensure construction safety.

Construction chicken heart rings, high-altitude operation safety accessories, tower crane wire rope connection rings

3、Mining machinery and heavy-duty traction

The mining and ore transportation environments have extremely high requirements for rigging, and the high breaking load and wear resistance of the chicken heart ring can cope with high-intensity and high wear operations, extend equipment service life, and reduce maintenance costs.

Mining specific chicken heart ring, heavy-duty traction rigging, high wear-resistant steel wire rope ring

4、Shipbuilding and Ocean Engineering

In scenarios such as ship mooring and offshore platform construction, rust prevention treatment of chicken heart rings (such as hot-dip galvanizing) can resist salt spray corrosion, ensuring long-term reliability for offshore use and avoiding safety hazards caused by corrosion.

Ship heart rings, marine engineering rigging, rust proof steel wire rope connectors

5、Logistics transportation and heavy equipment lifting

Suitable for lifting and fixing large mechanical equipment, steel and other goods, the multi specification adaptability of the chicken heart ring can meet different load requirements, ensuring stability and safety during transportation.

Logistics hoisting chicken heart rings, heavy equipment rigging accessories, adjustable steel wire rope loops

Through the introduction of the above application scenarios, customers can clearly understand the actual use of heart rings in various industries and choose the most suitable product model.

Product Operate Guide

1. Check the product status

Before use, confirm that the chicken heart ring has no cracks, deformation, or severe rust, and that the surface coating is intact. Check if the specifications of the steel wire rope match, ensuring that there are no issues such as broken wires or excessive wear.

Chicken heart ring safety inspection, steel wire rope matching standard, pre use inspection of rigging

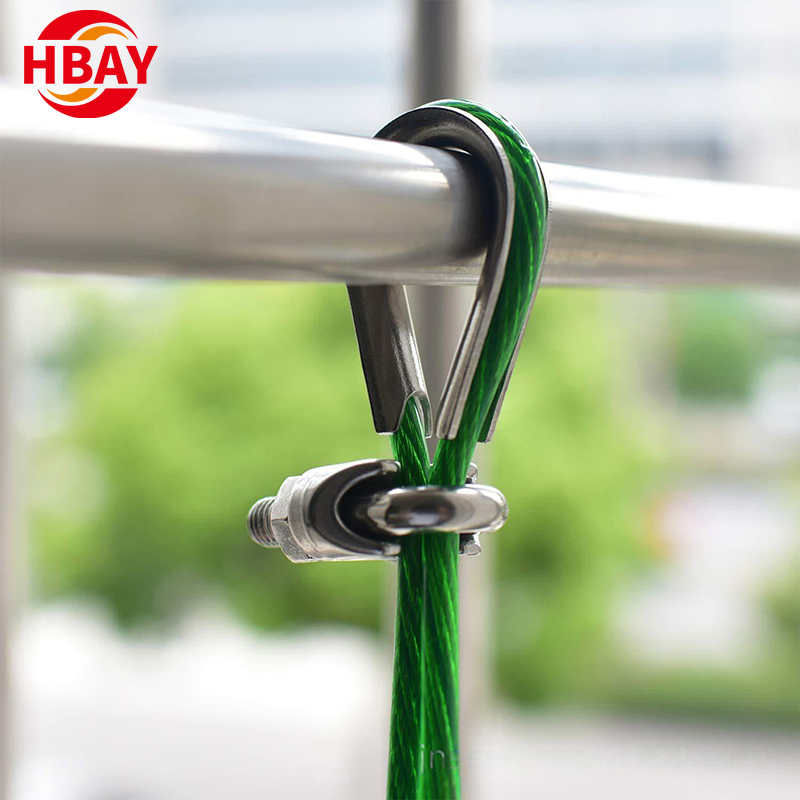

2. Install the steel wire rope correctly

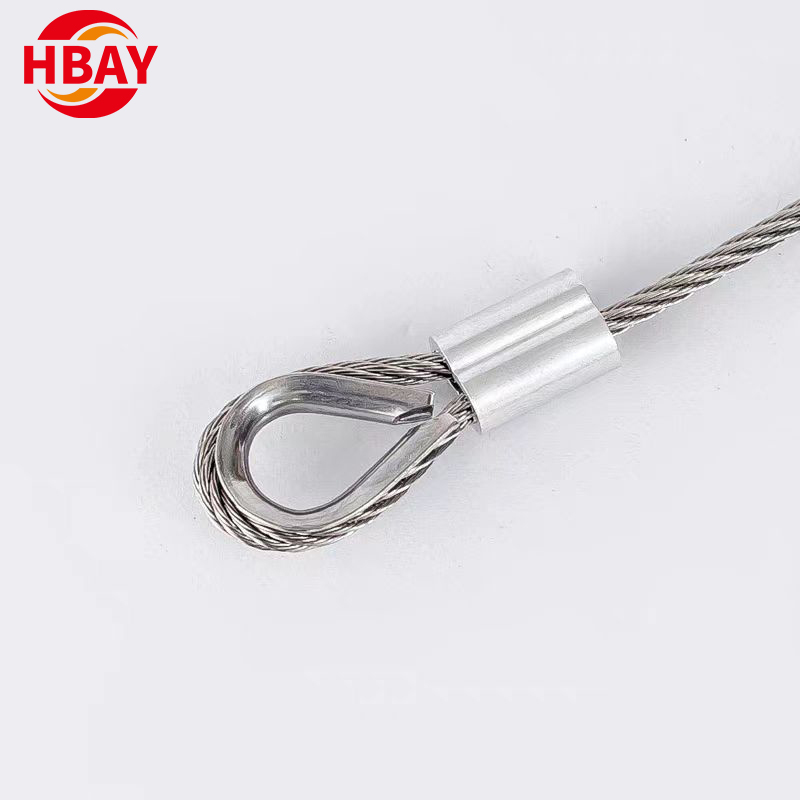

Thread the end of the steel wire rope into the chicken heart ring, bend it into a circular shape, and fix it with a rope clamp or compression sleeve. Ensure that the reserved length of the rope head is ≥ 3 times the diameter of the steel wire rope, and the spacing between the rope clamps is ≥ 6 times the diameter of the rope and evenly locked.

Installation method of steel wire rope, fixing technique of chicken heart ring, correct use of rope clamp

3. Connect load devices

Connect the chicken heart ring to the lifting equipment through a shackle or hook, and check whether each component is secure. Avoid lateral forces or impact loads and maintain a vertical lifting state.

Chicken heart ring load connection, vertical lifting specifications, safe operation of lifting equipment

4. Regular maintenance and upkeep

Remove surface dirt and check for wear after use. Long term exposure to the environment requires the application of rust proof grease. If the coating is damaged, it should be replaced in a timely manner to avoid accidents caused by a decrease in strength.

Maintenance and upkeep of chicken heart rings, rust prevention treatment of rigging, and regular safety inspections

5. Scrap standard

When cracks, deformations, aperture wear exceeding 10%, or corrosion affect the structure, it must be forcibly scrapped. Overloading or modification is strictly prohibited to ensure safe operation.

Standard for scrapping heart rings, conditions for replacing rigging, and safety usage guidelines

Q1. What is a Wire Rope Thimble?

A: Wire Rope Thimble is a metal ring accessory, usually made of stainless steel, carbon steel or galvanized steel, with a shape similar to a chicken heart (one end is arc-shaped, and the other end is an open or closed ring). Mainly used for end protection of steel wire ropes, cables or ropes, to prevent wear or loose strands, and to enhance the load-bearing capacity of connections.

Q2.What is the purpose of a Wire Rope Thimble?

A: Protect steel wire rope/rope: Cover the rope end to prevent wear, deformation, or loose threads.

Enhanced connection: Used in conjunction with clamps (such as wire rope clamps, shackles) to distribute stress.

Guiding function: Used in equipment such as pulleys and hooks to reduce friction.

Common application scenarios: lifting operations, ship mooring, power lines, outdoor cables, etc.

Q3.What are the types of heart rings?

A: Open type Wire Rope Thimble: One end is open for easy installation and needs to be fixed with a clamp.

Closed type Wire Rope Thimble: It is completely closed and has higher strength, but requires pre threading of a rope.

Galvanized/stainless steel Wire Rope Thimble: rust resistant, suitable for outdoor or humid environments.

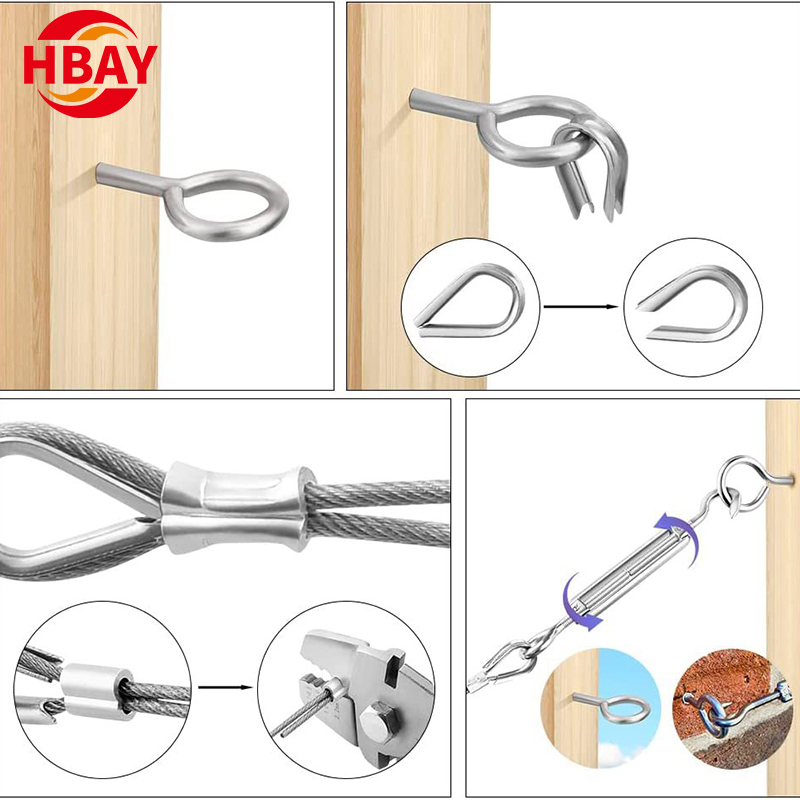

Q4. How to install a Wire Rope Thimble?

A: Thread rope: Insert the end of the steel wire rope into the heart-shaped ring, leaving enough length.

Fixed: Use a wire rope clamp (U-shaped clamp) to press the rope end tightly, usually using at least 2-3 clamps.

Inspection: Ensure that the clamp nut is tightened and the rope end bending length is ≥ 6 times the diameter of the steel wire rope.

Q5: Can a Wire Rope Thimble be welded?

A: Welding is not recommended as high temperatures may alter metal properties and affect strength.

Q6: Can Wire Rope Thimbles be used for lifting human bodies?

A: Strictly prohibited for personnel lifting, only for cargo lifting.

Q7: How to distinguish inferior Wire Rope Thimbles?

A: Check if the surface is smooth and free of burrs, the material is uniform, and labeled with specifications and manufacturer information.
