What Is A Bow Shackle For?

A Bow Shackle is a versatile and essential component in the rigging and lifting industry. Its unique design and ability to handle heavy loads make it indispensable in various sectors such as construction, shipping, and industrial applications. In this article, we will explore the functionality, uses, and benefits of Bow Shackles, helping you understand why they are crucial for safe and efficient lifting operations.

What is a Bow Shackle?

Structure of a Bow Shackle

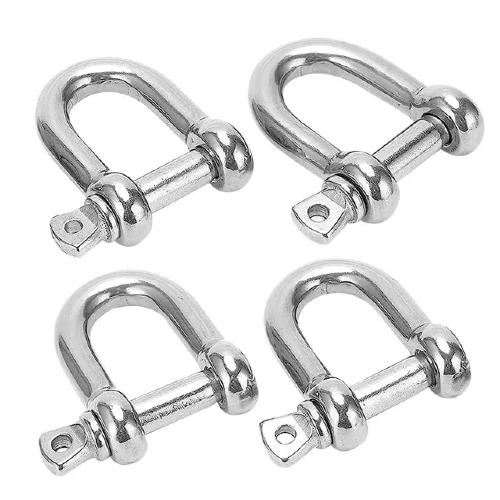

A Bow Shackle features a curved, U-shaped body with a pin that runs through it. The pin locks the two ends of the shackle together, ensuring a secure connection to lifting equipment or load-bearing components. The "bow" in the name refers to the curved shape of the shackle body, distinguishing it from other types of shackles such as the D-shackle, which has a straight design.

Differences Between Bow Shackles and Other Shackles

The main difference between Bow Shackles and D Shackles is their shape. Bow Shackles are better suited for lifting operations where load distribution is important. Their design allows for more effective and balanced loading, especially in multi-leg lifting slings or when using thicker ropes or cables. In contrast, D Shackles are typically used in situations where a more compact connection is required.

Core Functions of a Bow Shackle

Lifting and Load-Bearing

The primary function of a Bow Shackle is to connect lifting equipment such as ropes, chains, or slings to a load. This allows the load to be lifted securely. The design of a Bow Shackle ensures that it can withstand high tension and weight without compromising safety.

High Load Capacity

Bow Shackles are known for their high load-bearing capacity. They can support a wide range of weights depending on their size and material. This makes them suitable for heavy-duty applications, including lifting large machinery, construction materials, and even marine vessels.

Safety Assurance

One of the key features of the Bow Shackle is its safety. The pin that secures the shackle is designed to lock into place, preventing it from coming undone under pressure. Additionally, the rounded shape of the shackle helps distribute the weight evenly, reducing the risk of failure under heavy loads.

Applications of Bow Shackles

Construction and Heavy Lifting

In construction, Bow Shackles are essential for lifting and securing heavy materials such as steel beams, concrete blocks, and heavy machinery. They are commonly used in cranes and hoists to ensure the safe transport of these materials.

Marine and Shipping Applications

In the marine industry, Bow Shackles play a vital role in securing loads during transport or anchoring ships. They are used in rigging systems, anchor lines, and cargo handling. Due to their resistance to corrosion, stainless steel Bow Shackles are often preferred in these environments.

Industrial and Transportation

In various industrial sectors, including mining and logistics, Bow Shackles are used to secure large loads during transport. Their strength makes them ideal for heavy-duty tasks such as lifting large machinery, vehicles, and bulk materials.

How to Choose the Right Bow Shackle

Load Capacity Consideration

When selecting a Bow Shackle, it is essential to consider the load capacity. Each shackle has a specific weight limit, and exceeding this limit can cause the shackle to fail, posing a significant safety risk. Ensure that the Bow Shackle you choose can handle the weight of the load being lifted.

Material Selection

Bow Shackles are made from various materials, including carbon steel, stainless steel, and alloy steel. The choice of material depends on the environment in which the shackle will be used. For example, stainless steel Bow Shackles are ideal for marine environments because they are resistant to corrosion.

Environmental Considerations

If you're working in a corrosive or high-temperature environment, it is essential to choose a Bow Shackle that is designed to withstand those conditions. Galvanized and stainless steel shackles are often used in maritime or outdoor environments due to their rust-resistant properties.

Safety Standards and Certifications

Ensure that the Bow Shackle you select adheres to relevant safety standards such as ISO 9001, EN 13889, or ASME B30.26. These certifications ensure that the product meets safety and quality requirements for lifting and rigging applications.

Maintenance and Care of Bow Shackles

Regular Inspection

Regular inspection of Bow Shackles is crucial to ensure they remain in good working condition. Look for signs of wear, corrosion, or damage to the pin and body. If any defects are found, replace the shackle immediately.

Cleaning and Storage

To extend the lifespan of your Bow Shackle, it should be cleaned regularly to remove dirt, grease, and other contaminants. After use, store the shackle in a dry place to avoid rust and corrosion. For shackles used in marine environments, ensure they are rinsed with fresh water after exposure to saltwater.

Replacing Bow Shackles

Even with proper care, Bow Shackles will eventually wear out. It is essential to replace shackles that show signs of fatigue or excessive wear to avoid potential failure. Always replace shackles with those of the same size and load capacity.

Frequently Asked Questions About Bow Shackles

What is the maximum load a Bow Shackle can handle?

The maximum load capacity of a Bow Shackle varies depending on its size and material. It is essential to check the specifications of each shackle, but larger shackles can handle up to 20 tons or more.

How do I ensure my Bow Shackle remains corrosion-free?

To prevent corrosion, select a stainless steel Bow Shackle for environments where rust is a concern. Additionally, regular cleaning and proper storage will help prolong the life of the shackle.

Can Bow Shackles be used in high-temperature environments?

Yes, but only if the Bow Shackle is made from materials specifically designed to withstand high temperatures, such as alloy steel or heat-treated steel.

Conclusion

In conclusion, Bow Shackles are a crucial component in the lifting and rigging industry, offering a combination of robust design, high load capacity, and versatility across various applications—from construction and industrial lifting to marine transport and emergency rescue operations. By understanding essential factors like load capacity, material selection, and regular maintenance, you can ensure your Bow Shackles are used safely and effectively.

For those seeking reliable, high-quality Bow Shackles, Hebei Anyue Metal Manufacturing Co., Ltd. provides a comprehensive range of products designed to meet international safety standards. With their commitment to durability and performance, they are an ideal partner for businesses in need of safe and efficient lifting solutions. Reach out to them for personalized service and expert advice on selecting the right products for your specific needs. Investing in their premium Bow Shackles ensures long-term safety and reliability in your operations.
