How To Choose The Right Bow Shackle for Lifting

Introduction

Lifting heavy loads safely requires more than just strength—it demands precision in selecting the right hardware. A bow shackle plays a pivotal role in distributing weight, accommodating multi-leg slings, and handling angular loads without compromising structural integrity. Understanding how to align the Working Load Limit (WLL) with your load, choose the appropriate material and finish, and verify pin type ensures both safety and efficiency. Proper measurement, inspection routines, and awareness of environmental factors further prevent accidents, making every lift more predictable and reliable.

Assessing Load Requirements and Safety Factors

Calculating WLL for Your Lift

Determining the correct Working Load Limit (WLL) is the first critical step in safe lifting operations. Start by calculating the total load weight, including any attachments, rigging hardware, and slings. When using a multi-leg sling, each leg contributes differently to the total load; the WLL of the bow shackle must account for uneven distribution and potential angular stress. For example, a 2-ton load on a two-leg sling with a 45° lift angle requires a shackle rated at approximately 3 tons to maintain safety margins. Side-loading further reduces effective capacity: a 30° off-axis pull can diminish the WLL by up to 20%, emphasizing the need to adjust calculations according to actual rigging geometry.

This table illustrates how nominal WLLs must be adapted to multi-leg configurations and applied angles, ensuring the selected bow shackle maintains structural integrity under operational loads.

Understanding Safety Factors

Every shackle is designed with a Safety Factor—typically 4:1, 5:1, or 6:1—which defines the ratio between its minimum breaking strength and the rated load. A shackle with a 5:1 safety factor and 2-ton WLL possesses a breaking strength of 10 tons. Engineers must consider dynamic effects such as vibration, sudden acceleration, or uneven load distribution, which can introduce transient forces beyond static calculations. In practical scenarios, choosing a slightly higher WLL compensates for these stresses, preventing microfractures and extending service life. Comparing Rated Load vs Breaking Strength allows riggers to make informed decisions without over-specifying hardware unnecessarily, balancing safety and cost-efficiency.

Avoiding Overload and Shock Loading

Repeated exposure to loads beyond the rated capacity accelerates wear and significantly shortens a shackle’s lifespan. Signs of overload include visible deformation, pin elongation, hairline cracks, and abnormal bending of the bow. Implementing a strict inspection checklist prevents the use of compromised shackles:

● Examine for plastic deformation or elongation beyond manufacturer limits.

● Inspect threads and pin engagement for wear or galling.

● Verify that no corrosion has undermined the bow’s cross-section by more than 10%.

● Retire any shackle exhibiting cracks, surface fissures, or abnormal bending before lifting operations.

By adhering to these guidelines, operators maintain structural reliability, reduce the likelihood of sudden failures, and preserve compliance with industry standards.

Selecting the Right Shackle Material and Finish

Alloy, Carbon, or Stainless Steel

Choosing the appropriate material for a bow shackle depends heavily on the operating environment. Alloy Steel provides superior tensile strength and fatigue resistance, making it ideal for heavy industrial lifts where load capacities often exceed 10 tons. In contrast, Carbon Steel is cost-effective for standard construction or warehousing applications but requires protective coatings to resist corrosion. For marine or chemical settings, Stainless Steel 304/316 is preferred due to its excellent corrosion resistance and formation of a passive oxide layer, even under prolonged exposure to saltwater or acidic compounds. Operators should match the steel grade to both load requirements and environmental stressors to ensure longevity and safety.

Protective Coatings for Longevity

Beyond material selection, surface treatment significantly affects shackle durability. Galvanised Steel forms a zinc barrier against moisture, while Powder-Coated Finish provides chemical and abrasion resistance in industrial or marine settings. Applying anti-seize compounds to stainless steel pins prevents galling during repeated assembly and disassembly. Proper coating selection reduces maintenance frequency and prevents hidden structural degradation that can compromise WLL.

Heat and Wear Considerations

Thermal exposure and repeated mechanical stress can alter a shackle’s rated capacity. Heat Damage may manifest as discoloration, warping, or loss of temper, while wear exceeding 10% of the nominal cross-section can indicate imminent failure. Plastic Deformation or Elongation of the bow and pin signals that the shackle should be retired, even if no visible cracks exist. Conducting systematic inspections using calipers or templates ensures that structural integrity is maintained, particularly for alloy or stainless steel shackles subjected to high-frequency lifting operations.

Matching Shackle Type and Pin to Your Application

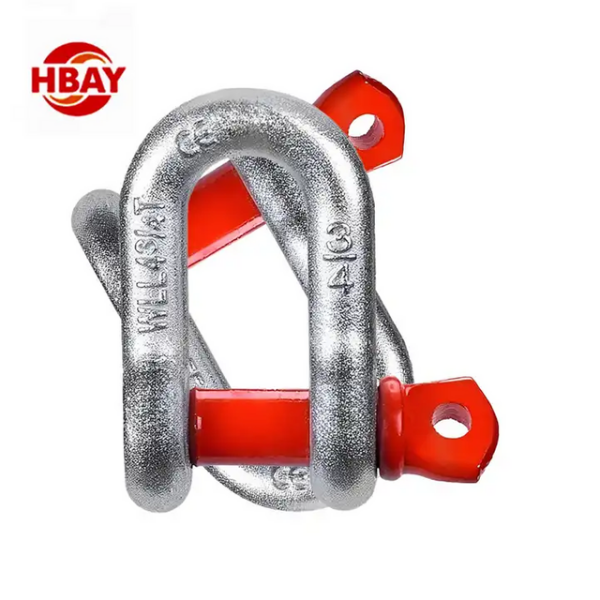

Bow Shackle vs D-Shackle

Selecting between a bow shackle and a D-Shackle depends on load orientation and spatial constraints. The rounded Bow / Crown / Ears allow for multi-directional loading, distributing stress evenly across the shackle body when using multi-leg slings or performing angular lifts. Conversely, a D-Shackle is optimized for straight, in-line pulls and performs best in confined spaces where side-loading must be minimized. Side-loading on a D-shackle can reduce the effective WLL by up to 50%, while bow shackles maintain capacity under moderate angular loads. Choosing the correct type prevents sling bunching and ensures consistent load distribution, which is critical for heavy industrial or marine applications.

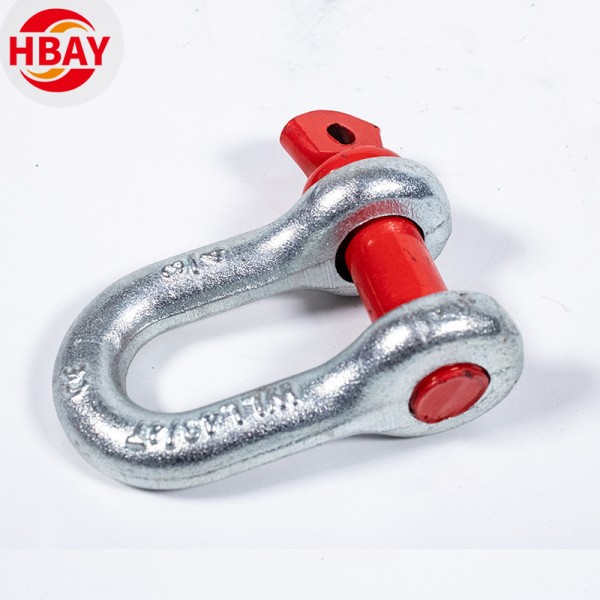

Pin Type Selection

Pin choice significantly affects operational safety and reliability. Screw Pins are convenient for temporary or quick-setup lifts but may loosen under vibration. Bolt-Type Pins, secured with a nut and cotter pin, are suitable for high-vibration or permanent installations, including offshore and critical lifts. Safety Pins provide the highest security for extreme conditions, locking the pin to prevent accidental disengagement. Pre-use inspection should verify Pin Engagement, checking for thread integrity, bends, or improper seating to ensure the shackle functions at its rated capacity.

Checklist for pin inspection:

● Confirm threads are undamaged and properly lubricated.

● Verify pin seats fully without play.

● Inspect for signs of wear, corrosion, or deformation.

Geometric and Dimensional Verification

Accurate measurements of the shackle body and pin are essential to avoid overloading and uneven stress. Key parameters include body diameter, pin diameter, and inside width. Using calipers or templates ensures that slings fit without compression or bunching, and the shackle’s WLL is not compromised. Overlooking these dimensions can lead to reduced load-bearing capacity, accelerated wear, or sudden failure during lifting. A reference table of standard shackle dimensions versus rated capacity provides a practical guide for selection across industrial, marine, and construction applications.

Inspection, Compliance, and Avoiding Common Mistakes

Routine Inspection Protocols

Maintaining the integrity of a bow shackle requires disciplined inspection at multiple intervals. Daily checks should include visual verification of the pin, bow, and eye for corrosion, cracks, or signs of elongation. Periodic inspections, typically monthly to quarterly depending on load frequency, should involve detailed measurements to detect Flaw Detection such as micro-cracks, thread wear, or surface deformation. Annual or service-based inspections must confirm adherence to rated capacity and confirm Inspection Frequency is being met according to internal maintenance protocols. Implementing a structured inspection routine ensures that potential hazards are identified before they compromise safety.

5 Common Mistakes That Reduce WLL

Several recurring errors diminish a shackle’s effective Working Load Limit (WLL). First, using the wrong pin type—such as a screw pin in a high-vibration environment—can allow loosening during lifting. Second, side-loading a D-shackle rather than using a bow shackle reduces capacity significantly. Third, selecting a shackle with a mismatched Grade S/T/M compromises load integrity. Over-tightening the pin may cause thread galling or local deformation, while ignoring minor bow elongation or surface wear accelerates fatigue. Addressing these mistakes requires both procedural rigor and visual cues; color-coded or stamped grade markings help ensure immediate recognition of appropriate shackle specifications.

Regulatory Compliance and Certification

Compliance with industry standards ensures both safety and traceability. Certified shackles should conform to ISO 8539, ASME B30.26, and EN 13889, with manufacturer markings and Traceability / Batch Code for accountability. Regular documentation of inspection results, along with adherence to workplace safety rules, maintains operational compliance and protects operators from liability. Quick reference compliance checklists can streamline audits and reduce oversight errors, particularly in environments with multiple lifting operations or offshore deployments.

Conclusion

Selecting the appropriate bow shackle ensures lifting operations remain safe, efficient, and aligned with load requirements. Evaluating Working Load Limit (WLL), safety factors, material, and finish, alongside proper pin type and dimensional verification, helps prevent common failures and extends the lifespan of rigging equipment. Regular inspections and adherence to operational standards further support reliability in complex or multi-leg lifting scenarios.

Products from Hebei Anyue Metal Manufacturing Co., Ltd. provide a range of certified bow shackles designed to meet these considerations. Their durable construction, variety of materials and finishes, and clear markings facilitate accurate load matching, simplify pre-lift checks, and help operators maintain safe and effective lifting practices.

FAQ

Q: What is the main difference between a bow shackle and a D-shackle?

A: Bow shackles have a rounded shape for multi-directional or angular loads, while D-shackles are narrower and suited for straight-line, in-line lifting applications.

Q: How do I determine the correct Working Load Limit (WLL) for a bow shackle?

A: Calculate the total load, account for multi-leg sling distribution and side-loading angles, then select a shackle with a WLL that safely exceeds this combined load.

Q: Which pin type should I use for temporary versus permanent lifting setups?

A: Screw pins are ideal for quick, temporary lifts, whereas bolt-type or safety pins are recommended for permanent or vibration-prone installations.

Q: How often should lifting shackles be inspected?

A: Inspect shackles before every use for visible wear or deformation, and perform periodic detailed inspections monthly or annually depending on load frequency and environment.

Q: Can bow shackles be used in marine or corrosive environments?

A: Yes, stainless steel or properly galvanized bow shackles offer corrosion resistance, making them suitable for marine, chemical, or high-humidity applications.

Q: What are the signs that a shackle needs to be retired?

A: Retire any shackle showing cracks, plastic deformation, elongation, corrosion beyond limits, or damaged threads that compromise pin engagement.
