A Side-by-Side Comparison of Eye, Clevis, And Swivel Lifting Hooks

Introduction

Choosing the wrong hook can make a safe lift harder to control. A Lifting Hook connects the load to slings, chains, hoists, or rigging hardware. Eye, clevis, and swivel hooks each solve different lifting problems. In this guide, you will learn how they compare in connection style, movement, replacement, safety, and practical use.



Eye, Clevis, and Swivel Lifting Hooks: The Core Differences

Choosing the right Lifting Hook starts with understanding how the hook connects to the sling or chain. Eye, clevis, and swivel hooks are often compared because their differences are not only about shape. Their top connection design affects installation, load movement, replacement, inspection, and long-term maintenance. A hook that works well in a fixed wire rope sling assembly may not be the best option for a chain sling that needs frequent adjustment, and a hook used only for alignment should not be confused with one designed to rotate under load.

Top Connection Design

The most visible difference is found at the top of the hook. An eye hook has a closed eye or loop, creating a stable attachment point for compatible fittings, chain links, wire rope slings, or synthetic sling assemblies. This design is commonly selected when the hook is expected to stay in place as part of a more permanent rigging setup.

A clevis hook uses a U-shaped clevis with a removable pin. This allows the hook to connect directly to chain, making it especially practical for chain sling assemblies where mechanical attachment is preferred. The pin-and-clevis design also makes it easier to remove the hook when replacement is needed.

A swivel hook includes a rotating top assembly. Depending on the model, the swivel area may use a bushing or bearing. This rotating feature is the key reason swivel hooks are chosen for applications where alignment, load orientation, or sling twisting may become an issue.

Installation and Replacement Style

Installation style is one of the biggest practical differences between these three hook types. Eye hooks are usually treated as permanent or semi-permanent components in a sling assembly. They provide a secure connection, but if the hook becomes damaged, replacing it may involve removing more of the sling assembly from service.

Clevis hooks are more service-friendly in chain applications. Since the hook is attached with a pin, it can usually be removed without cutting, welding, or replacing the entire chain sling. This is useful in workplaces where hooks experience wear, impact, or regular changeouts.

Swivel hooks require more careful selection during installation. The rigger must know whether the hook is only meant for positioning before the lift or whether it is rated to rotate while loaded. Choosing the wrong swivel design can create unnecessary risk during lifting.

Rotation and Load Movement

Eye hooks offer a fixed connection. They may help create a strong and stable setup, but they do not rotate with the load. Clevis hooks can provide limited side-to-side movement at the chain connection, but that movement should not be mistaken for full rotation.

Swivel hooks are designed specifically for alignment or rotation, depending on their construction. A positioning swivel hook helps align the hook before the load is applied, while a true bearing swivel hook can rotate under load to reduce twisting in the rigging system.

Quick Comparison Table

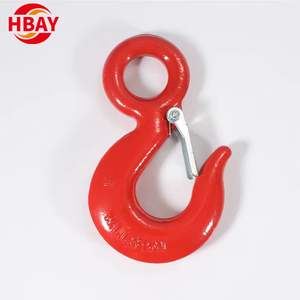

When to Choose an Eye Lifting Hook

An eye hook is often the better choice when the lifting setup needs a secure, consistent connection rather than frequent hardware changes. In many rigging assemblies, the closed eye at the top of the hook provides a dependable attachment point for approved fittings, links, or sling components. This makes it a practical option for controlled lifting tasks where the load path is predictable and the hook is expected to remain part of the same assembly over time. Compared with clevis and swivel designs, an eye Lifting Hook is less about quick adjustment or rotation and more about stability, secure connection, and repeatable use.

Best Applications for Eye Hooks

Eye hooks are well suited for straight, controlled lifts where the hook does not need to be removed from the sling on a regular basis. They are commonly used in fixed sling assemblies, wire rope slings, synthetic slings, and some chain sling systems when compatible hardware is used. Because the top eye is closed, the hook can become part of a stable lifting arrangement that performs reliably across repeated lifts.

They are especially useful when the lifting point, sling type, and load direction remain fairly consistent. For example, an eye hook may be appropriate for a production environment where similar loads are lifted in the same way each day. In this type of setup, stability and connection security matter more than fast replacement or on-the-job reconfiguration.

Main Advantages of Eye Hooks

The main strength of an eye hook is its closed-eye attachment. This design helps create a strong connection point when paired with the correct sling hardware. It also gives riggers a practical and familiar hook style for everyday lifting work.

Key advantages include:

● Provides a secure attachment point for fixed or semi-permanent rigging assemblies.

● Performs well in repeated lifting tasks where the setup does not change often.

● Offers practical positioning flexibility when connecting the hook to the load.

● Works with multiple sling types when the proper fittings and ratings are used.

● Supports stable lifting when the load is applied correctly in the hook bowl.

Limitations of Eye Hooks

An eye hook should also be inspected carefully before use. Signs such as throat opening, deformation, cracks, bending, excessive wear, or damaged identification markings can indicate that the hook is no longer safe for lifting service.

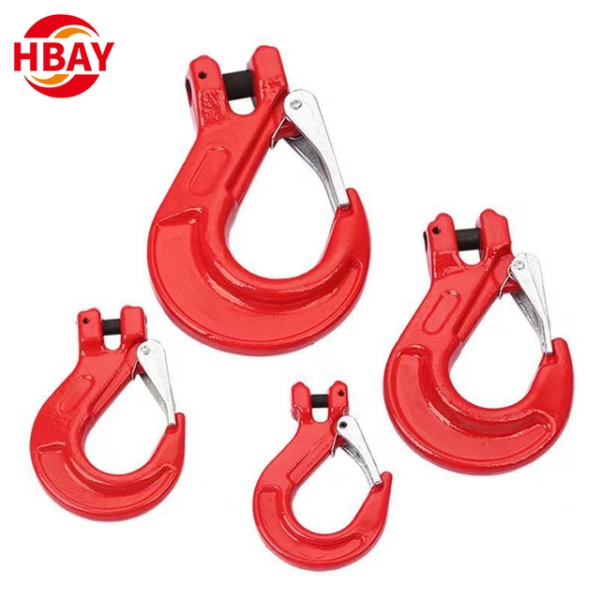

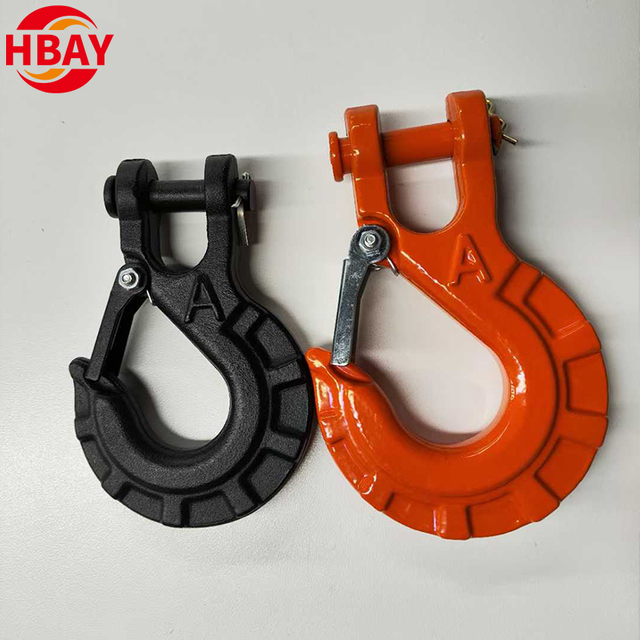

When to Choose a Clevis Lifting Hook

A clevis hook is usually the preferred option when a lifting setup depends on chain connection, field adjustability, and easier component replacement. Unlike an eye hook, which is often built into a more permanent sling assembly, a clevis Lifting Hook uses a U-shaped clevis and pin system that can connect directly to compatible chain. This makes it especially useful in industrial environments where rigging setups change, hooks wear out, or equipment needs to be serviced without replacing the entire sling assembly.

Best Applications for Clevis Hooks

Clevis hooks are best suited for chain sling assemblies that require a direct mechanical connection. The clevis opening fits around the chain link, while the pin secures the hook in place. This design is practical for lifting operations where chain slings are commonly used and where the hook may need to be changed, repaired, or reconfigured over time.

They are often found in industrial lifting, load securement, material handling, and rigging systems where flexibility matters. For example, a clevis hook can be useful in a maintenance shop, construction site, or production facility where different loads may require different chain assemblies. When the work demands faster adjustment than a permanent hook connection can provide, the clevis design becomes a practical choice.

Main Advantages of Clevis Hooks

Limitations of Clevis Hooks

Clevis hooks are not a universal solution for every sling type. They are mainly designed for chain applications, so they are not usually the first choice for wire rope slings or synthetic slings unless the full assembly is properly engineered with compatible hardware. Their movement is also limited. A clevis hook may pivot slightly from side to side at the chain connection, but it should not be treated as a rotating hook.

The pin area deserves close attention during inspection. The clevis pin, cotter pin, retaining hardware, and surrounding connection points must be checked for wear, deformation, looseness, or missing parts. If a clevis hook is replaced on a lifting chain sling, that change may be considered a repair, meaning the sling should follow the required inspection, proof testing, and safety procedures before being returned to lifting service.

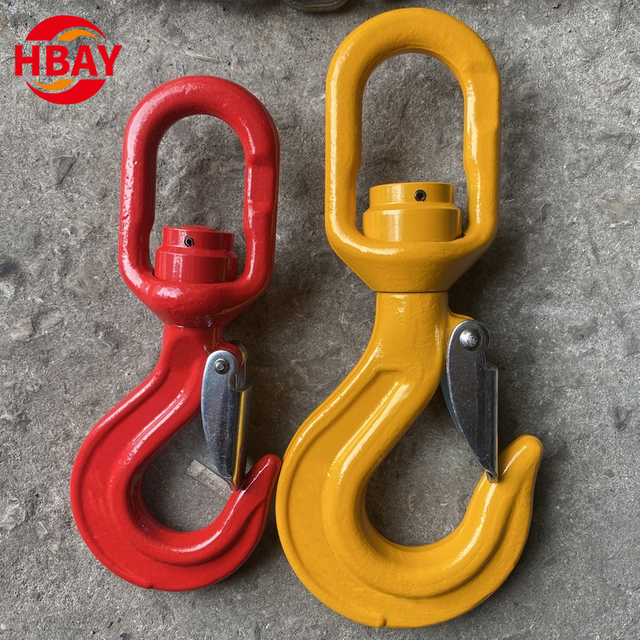

When to Choose a Swivel Lifting Hook

A swivel hook is the right choice when a lift involves more than simply raising a load in a straight line. In many rigging setups, the load may turn slightly, the sling may begin to twist, or the final placement may require careful alignment. A swivel Lifting Hook helps manage these situations by allowing the hook body or top fitting to rotate, depending on the design. This makes it especially useful when load orientation, sling stress, and handling control are important parts of the lifting operation.

Best Applications for Swivel Hooks

Swivel hooks are commonly selected for loads that may rotate, shift direction, or require precise positioning before being set down. They are helpful in equipment installation, machinery handling, maintenance lifting, and other alignment-sensitive tasks where a fixed hook may create unnecessary twisting in the sling or chain.

They are also useful when the rigging line could become stressed by torque. If a chain, wire rope, or synthetic sling twists during lifting, it can reduce control and increase wear on the assembly. A properly selected swivel hook helps the rigging system move more naturally with the load, especially in complex lifting environments where the load path is not perfectly predictable.

Positioning Swivel Hook vs. Bearing Swivel Hook

Not every swivel hook is designed for the same type of movement. This distinction is critical because using the wrong swivel design can create safety problems during the lift.

A positioning swivel hook should not be treated as a hook that can spin freely while carrying weight unless it is specifically rated for that purpose. A true bearing swivel hook is designed for more demanding movement and is the better choice when rotation may occur after the load is suspended.

Main Advantages of Swivel Hooks

The biggest advantage of a swivel hook is improved alignment. When the hook can rotate properly, the rigger can position the connection more easily and reduce unwanted side stress on the lifting line. This can make handling smoother when the load orientation changes during the lift.

Swivel hooks also help protect rigging components from unnecessary torque. By reducing twist in chains, slings, or lifting lines, they may help limit wear caused by forced rotation or misalignment. In applications where the load must be guided into a precise position, this added movement can improve both efficiency and control.

Limitations of Swivel Hooks

Swivel hooks are more complex than eye or clevis hooks because they include moving parts. The swivel mechanism, bearing or bushing area, and lubrication condition must be inspected regularly. Any stiffness, rough movement, looseness, or visible damage can affect safe performance.

Cost and selection accuracy are also important factors. A swivel hook is often more expensive than a simpler hook style, and the wrong model may not perform safely in the intended application. The user must confirm whether the hook is rated only for positioning or for rotation under load before it is used in the lifting system.



How to Select the Right Lifting Hook for the Job

Selecting the right Lifting Hook is not only a matter of choosing between eye, clevis, and swivel designs. The safer approach is to match the hook to the sling or chain type, the expected load movement, the working load requirement, and the maintenance conditions of the job. A hook that performs well in a fixed sling assembly may be inconvenient in a chain system that needs frequent adjustment, while a basic fixed hook may not be suitable when the load can twist or rotate during handling.

Match the Hook to the Sling or Chain Type

The first decision should be based on how the hook will connect to the rest of the rigging system. Eye hooks are often a strong fit for fixed or semi-permanent sling assemblies because their closed top eye works well with approved connecting links, fittings, and sling hardware. They are commonly used when the lifting arrangement stays consistent and does not require frequent hook removal.

Clevis hooks are usually better for direct chain connections. Their pin-style attachment allows the hook to be connected to compatible chain without a welded fitting, making them practical for chain sling systems that may need reconfiguration or replacement. Swivel hooks should be considered when the connection needs alignment flexibility or rotation control, but the exact swivel type must match the application.

Consider How the Load Will Behave During the Lift

Load behavior should be evaluated alongside load weight. A stable vertical lift with little or no rotation may only require an eye hook, especially when the lifting path is controlled and predictable. If the operation involves frequent changes to chain length, hook type, or attachment points, a clevis hook may provide better practical efficiency.

When the load may turn, swing into final position, or create torque in the sling, a swivel hook may be the safer option. This is especially important in equipment installation, machinery positioning, or confined lifting areas where alignment affects both safety and handling control. The goal is to choose a hook that supports how the load actually moves, not just how it looks before the lift begins.

Check Working Load Limit and Hook Engagement

Every hook must be rated for the load it will carry. The Working Load Limit should be clearly identified and suitable for the load weight, sling angle, lifting configuration, and number of lifting points. The hook should also fit the lifting point or connecting hardware correctly so the load sits deep in the hook bowl.

Avoid using any hook in a way that creates side loading, point loading, shock loading, or off-axis force unless the hook is specifically rated for that condition. Poor hook engagement can reduce safety even when the hook’s rated capacity appears sufficient.

Review Inspection and Maintenance Needs

Inspection requirements also influence hook selection. Eye hooks must be checked carefully because damage may affect the larger sling assembly. Clevis hooks require attention to the clevis pin, cotter pin, and retaining hardware. Swivel hooks need additional inspection for smooth rotation, bearing or bushing wear, looseness, and lubrication condition.

Remove a hook from service if it shows cracks, bending, excessive wear, deformation, increased throat opening, damaged latch function, or illegible identification markings.



Conclusion

Eye hooks suit fixed, controlled lifts, while clevis hooks support chain flexibility and faster replacement. Swivel hooks help control rotation, improve alignment, and reduce twisting. The right Lifting Hook depends on sling type, load movement, WLL, inspection needs, and real working conditions. Hebei Anyue Metal Manufacturing Co., Ltd. provides reliable lifting hook solutions that support safer, more efficient rigging operations.



FAQ

Q: Which Lifting Hook is best for fixed lifting assemblies?

A: An eye Lifting Hook is best for stable, fixed sling assemblies with limited hook replacement.

Q: When should a clevis Lifting Hook be used?

A: A clevis Lifting Hook suits chain slings needing direct attachment, faster removal, or easier replacement.

Q: Can swivel hooks rotate under load?

A: Only a bearing swivel Lifting Hook is designed to rotate under load; positioning swivels are not.

Q: What should buyers check before selecting a hook?

A: Check WLL, sling compatibility, load movement, hook engagement, and inspection requirements.
