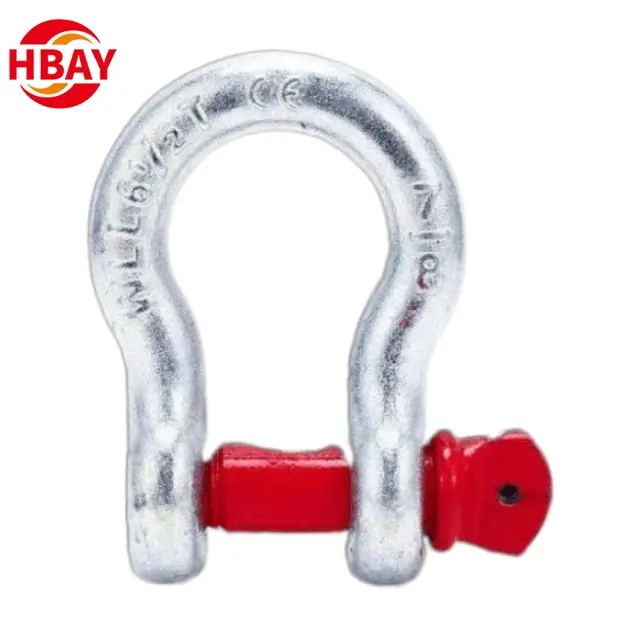

G209 3/4 Bow Shackle What Makes It So Strong

You need a shackle that gives you strength and safety every time. The G209 3/4 bow shackle stands out because it uses tough carbon steel and strong engineering. This shackle handles heavy loads with ease. You can trust its high load ratings. Engineers test each one to make sure it meets strict industry standards. When you choose this shackle, you get reliable performance and peace of mind for your lifting and rigging jobs.

Key Takeaways

• The G209 3/4 bow shackle can hold 4.75 tons. This means it can lift up to 10,500 pounds safely.

• Its hot-dipped galvanized finish keeps it safe from rust. This helps it last a long time in tough places.

• The bow shape spreads the weight out evenly. This makes it good for tricky lifts and stops it from bending.

• The screw pin design lets you connect things fast and easily. This makes rigging jobs safer and quicker.

• You should check the shackle before using it every time. This helps you find any damage or wear. It keeps everyone safe and the shackle working well.

G209 3/4 bow shackle specifications

Size and dimensions

You need to know the exact size when you choose a shackle for lifting or rigging. The G209 3/4 bow shackle gives you a strong and reliable option. It has a working load limit (WLL) of 4.75 tons, which means you can lift up to 10,500 pounds safely. This high WLL comes from careful engineering and strict testing.

Here is a quick look at the main specifications:

The mouth width measures 1.25 inches. This wide opening lets you attach thick slings, chains, or ropes without trouble. You get flexibility for many types of jobs. The bow shape also helps spread the load evenly, which keeps the shackle strong and safe.

Pin type and size

The pin is a key part of the G209 3/4 bow shackle. You get a 7/8-inch screw pin that fits tightly and locks in place. This size gives you extra strength and keeps the shackle from bending or breaking under heavy loads. The screw pin design makes it easy for you to open and close the shackle quickly. You can connect or disconnect your rigging gear without tools. This saves you time and reduces mistakes on the job.

Finish and corrosion resistance

You want your shackle to last, even in tough weather. The G209 3/4 bow shackle uses a hot-dipped galvanized finish. This coating protects the steel from rust and damage. The finish meets ASTM A153 standards, which means it passed strict lab tests for corrosion resistance.

Here is a summary of the finish and protection features:

You can use this shackle outdoors for many years. The galvanized layer keeps water and chemicals away from the steel. You get peace of mind knowing your equipment stays strong and safe, even in rain, snow, or salt air.

Tip: Always check the finish before each use. A good galvanized coating means your shackle will last longer and keep your team safe.

The G209 3/4 bow shackle stands out because every part—from the size to the finish—adds to its strength and reliability. You can trust it for heavy lifting, secure connections, and long service life.

Material & construction

Carbon steel properties

You want a shackle that can handle tough jobs. The G209 3/4 bow shackle uses high-quality carbon steel. This material gives you a strong base for heavy lifting. Carbon steel has a high tensile strength, so it resists breaking under pressure. You get a shackle that stays solid, even when you use it every day. The steel also has good ductility. This means it can bend a little without snapping. You can trust it to hold up in demanding conditions.

Forging process

The way a shackle is made matters as much as the material. The G209 3/4 bow shackle uses a forging process to boost its strength. Forging shapes the steel under high pressure and heat. This method makes the shackle tougher than cast shackles.

• Forged shackles are made by stamping round steel. This creates a solid structure without hidden defects.

• The forging process, including drop forging and heat treatment, helps the shackle resist bending and wear.

• Cast shackles can have problems like cracks or air pockets. These flaws make them weaker and less reliable.

• You get a shackle that stands up to heavy lifting and hoisting.

Note: Forged shackles like the G209 3/4 bow shackle give you more confidence on the job because they are less likely to fail.

Galvanized coating

You need protection from rust and weather. The G209 3/4 bow shackle comes with a hot-dipped galvanized coating. This layer shields the steel from moisture and chemicals. The coating sticks tightly to the surface, so it lasts for years. You can use the shackle outdoors or in harsh environments without worry. The galvanized finish also makes it easy to spot damage before it becomes a problem.

Always check the coating before each use. A good galvanized layer keeps your shackle strong and safe.

Design features

Bow shape and load distribution

You get a big advantage with the bow shape of the G209 3/4 bow shackle. The rounded bow lets you attach multiple slings or ropes without crowding. The shape spreads the force across the whole shackle. This helps prevent weak spots and keeps the shackle strong during heavy lifts. You avoid stress that can cause bending or breaking. The bow shape works better than a D shackle for lifting and rigging jobs.

You see that the bow shackle gives you more even load distribution. This means you can trust it for complex lifts and angled pulls.

Screw pin anchor design

You use the screw pin anchor to connect and secure your rigging gear. The pin design lets you open and close the shackle quickly. You do not need extra tools. The threads lock tightly, so the pin stays in place during lifting. You can check the pin easily before each use. The screw pin anchor gives you flexibility for temporary connections. You can remove the pin and reuse the shackle for different jobs. The design helps you work faster and safer.

Tip: Always make sure the pin is fully engaged and locked before lifting. This prevents accidents and keeps your team safe.

Structural integrity

You want your shackle to stay reliable under heavy loads. The G209 3/4 bow shackle goes through several tests to check its strength and safety. You can trust it because manufacturers inspect every part.

• Visual Inspection: You check for corrosion, cracks, and deformation.

• Pin Inspection: You make sure threads are in good condition and the pin is straight.

• Load Bearing Areas: You inspect for wear and elongation in critical areas.

• Measurement Check: You compare dimensions to manufacturer specifications.

• Functional Test: You verify operational aspects like thread engagement and locking mechanisms.

• Non-Destructive Testing (NDT): You use techniques like Magnetic Particle Inspection and Ultrasonic Testing to detect defects.

These tests help you spot problems early. You keep your equipment safe and ready for tough jobs.

Load ratings & safety

Working load limit (WLL)

You need to know how much weight your shackle can handle. The working load limit, or WLL, tells you the safe maximum load. For the G209 3/4 bow shackle, the WLL is 4.75 tons. This means you can safely lift up to 10,500 pounds. Manufacturers test each shackle to make sure it meets this limit. You should always check the WLL before you start any lifting job.

Here is a quick look at the main load ratings:

You can see that the shackle is built for tough jobs. The WLL keeps you and your team safe. Always use the shackle within its rated limit.

Proof load and breaking strength

You want to trust your equipment under heavy loads. Manufacturers test each G209 3/4 bow shackle with a proof load. The proof load is twice the working load limit. This test checks that the shackle will not bend or break during normal use. If the WLL is 4.75 tons, the proof load is 9.5 tons.

The minimum ultimate strength is even higher. This value is six times the working load limit. For this shackle, that means it must withstand at least 28.5 tons before breaking. These high numbers show you that the shackle has a big safety margin.

Tip: Never use a shackle above its working load limit. The extra strength is there for safety, not for regular use.

Fatigue and impact testing

You need a shackle that lasts through many lifts. The G209 3/4 bow shackle is fatigue rated. This means it can handle repeated loading and unloading without failing. Manufacturers test these shackles with thousands of cycles to make sure they stay strong.

• Each shackle passes impact tests at very low temperatures, down to -20°C (-4°F).

• The shackle must reach at least 42 joules (31 ft-lbs.) in the Charpy impact test.

• These tests meet DNV requirements for safety in harsh conditions.

• Crosby, the manufacturer, certifies these results and provides documentation if you need it.

You can use this shackle in cold weather and tough environments. The impact and fatigue tests show that it will not crack or break, even when you use it again and again.

Always inspect your shackle before each use. Look for signs of wear or damage. Regular checks help you stay safe on the job.

Standards & certifications

RR-C-271G compliance

You want your lifting gear to be safe and strong. The G209 3/4 bow shackle follows RR-C-271G rules. This standard tells how shackles should work for tough jobs. If a shackle meets RR-C-271G, it passed hard tests for strength and safety. You can count on it in hard situations.

Here is a table that shows why standards are important:

These standards help keep you and your team safe. They make sure the shackle will not break when you need it.

Type IVA, Grade A, Class 2

You should know what these ratings mean. Type IVA means the shackle has a bow shape. This shape spreads the load across the shackle. Grade A shows the shackle uses strong carbon steel. Class 2 means the shackle has a hot-dipped galvanized finish. These ratings help you pick the right shackle for tough jobs.

Tip: Always check the shackle’s markings for these ratings. You will feel better knowing your gear meets high standards.

Markings and traceability

You want to know who made your shackle and how it was made. Markings on the G209 3/4 bow shackle show the maker, size, and load limit. These markings help you track the shackle’s history. You can check if it meets safety and quality rules.

Certifications like CE and ISO9001 are important too. CE means the shackle meets European safety rules. ISO9001 shows the maker follows strict quality checks. Here is a quick table:

Certified shackles work well every time. Markings and certifications help you avoid unsafe gear and keep your team safe.

Applications & reliability

Lifting and rigging uses

The G209 3/4 bow shackle is used for many jobs. You can use it on building sites, in marine work, or for off-road recovery. It is good for quick setups and simple lifts. The bow shape lets you pull from different angles. The pin is easy to open and close. This helps you connect gear fast. The strong steel means you can use it again and again.

• Construction sites

• Marine lifting

• Off-road recovery

• Temporary rigging setups

Tip: Always look at the pin before lifting. A tight pin keeps your load safe.

Towing and tie-down scenarios

You need strong gear for towing and tying things down. The G209 3/4 bow shackle works well for pulling heavy equipment or cars. The big screw pin makes it even safer. You can use this shackle to hold loads in place when moving them. The U-shaped bow keeps your gear steady under stress.

Note: Always use the shackle under its load limit for towing and tie-down jobs.

Performance in harsh environments

You want your shackle to last in rough places. The G209 3/4 bow shackle has a special galvanized coating. This layer stops rust and damage, even near the sea. The shackle stays strong if it gets wet or touches chemicals. You get a tool that lasts a long time and keeps you safe. It meets CCS and U.S. Federal Specification RR-C-271F rules.

• Heavy-duty load securing

• Safety-critical attachment

• Corrosion-resistant galvanized steel construction

• Certified for marine and industrial use

Always check your shackle for rust or damage. Checking often helps you stop problems before they start.

You notice the G209 3/4 bow shackle is special because it uses strong materials, a smart shape, and follows strict safety rules. Stable lifts from different directions and bow-to-bow links help keep your load safe. Drop-forging and heat treatment make the shackle very tough and dependable. The high-quality materials stop rust, even when the weather is bad.

When picking shackles, always look at load charts and safety rules. You keep your team and gear safe by doing these things.

FAQ

What does the “4.75 ton” working load limit mean?

You can safely lift up to 4.75 tons (10,500 pounds) with this shackle. Always check the load before lifting. Never exceed the working load limit to keep your team and equipment safe.

Can you use the G209 3/4 bow shackle in saltwater?

Yes, you can use it in saltwater. The hot-dipped galvanized coating protects the steel from rust and corrosion. Always rinse the shackle with fresh water after use in saltwater for longer life.

How do you check if the shackle is safe to use?

Always inspect the shackle before each use:

• Look for cracks, rust, or bends.

• Check the pin for straightness and tight threads.

• Make sure markings are clear.

Can you use the shackle for overhead lifting?

Yes, you can use this shackle for overhead lifting. It meets strict safety standards and passes tough tests. Always follow the working load limit and inspect the shackle before every lift.
