A Look Back at the Development of G209 Bow Shackles

G209 bow shackles are tough metal parts used for lifting and rigging. Their shape helps keep heavy things safe and steady. Over the years, engineers made these shackles better. This makes lifting work safer and easier.

• They make strong links that help lifting systems hold more weight.

• Their smooth design keeps slings and ropes safe, so you do not need to replace them as often.

• On big jobs, a G209 3/4 bow shackle can stop expensive problems and save time.
  Learning about these changes shows why they are important for both experts and regular people.

Key Takeaways

• G209 bow shackles help make lifting and rigging safe. They make heavy work easier and safer. The bow shape spreads weight out evenly. This helps keep people safe and stops slings from wearing out fast. Always look for the G209 mark and safety labels like CE or ISO9001. These show the shackle is safe to use. Check shackles before using them every time. This can stop accidents and make sure they work well. G209 shackles are very important in many jobs. People use them in building and renewable energy because they are strong and last a long time.

Early Bow Shackles

First Uses

People have used shackles for hundreds of years. Early builders and sailors needed strong ways to connect ropes, chains, and heavy loads. Blacksmiths made the first shackles by hand. These early shackles often had simple shapes. Workers used them to lift stones, pull ships, and build large structures. The design was basic, but it helped people move heavy things safely.

Shackles became important in many industries. Farmers used them to pull equipment. Sailors used them to secure sails and cargo. Builders used them to lift beams and stones. Each group needed shackles that could handle different weights and forces. Over time, people saw the need for better designs.

Note: Early shackles did not have set rules for size or strength. This sometimes caused accidents when the metal bent or broke.

Bow Shape Evolution

The shape of the shackle changed as people learned more about lifting heavy loads. The bow shackle became popular because of its wide, rounded design. This shape made a big difference in how the shackle worked.

• The bow shape supports loads from many directions.

• It gives more space for slings and chains.

• The rounded design helps spread the force across the shackle.

• This makes the shackle safer and less likely to break.

A G209 3/4 bow shackle uses this improved shape. It can handle heavy-duty jobs and works well with different types of lifting gear. The bow shape also helps protect slings and ropes from sharp bends. This means they last longer and work better.

Today, the bow shackle is a key part of safe lifting and rigging. Its evolution shows how small changes in design can make a big impact on safety and efficiency.

G209 Standardization

Need for Standards

Industry standards are important for safety. Workers need to trust their shackles. Standards make sure each shackle is strong and good quality. This helps stop accidents and keeps people safe.

• G209 shackles use strong materials and pass tough tests.

• They are made for heavy lifting, so they work well.

• Shackles without standards might break and cause danger.

Different countries have their own rules for bow shackles. These rules help workers know what to expect. The table shows how G209 compares to other standards:

Note: Using shackles with standards lowers the chance of accidents. It helps keep workers and equipment safe.

Specification Development

The G209 rules were made in the United States. Safety experts worked together to write clear rules. They wanted every shackle to be strong and not break. The G209 standard sets limits for size, strength, and materials.

A G209 3/4 bow shackle must follow these rules:

These rules make sure G209 3/4 bow shackles are safe. The standard also needs proof tests and checks before use. This stops weak shackles from being used.

Tip: Always check for the G209 mark and certifications like CE or ISO9001. This means the shackle is safe and follows strict rules.

The G209 3/4 bow shackle is trusted in many jobs. Its design and tests help workers feel safe when lifting heavy things. Standards make lifting safer and easier for everyone.

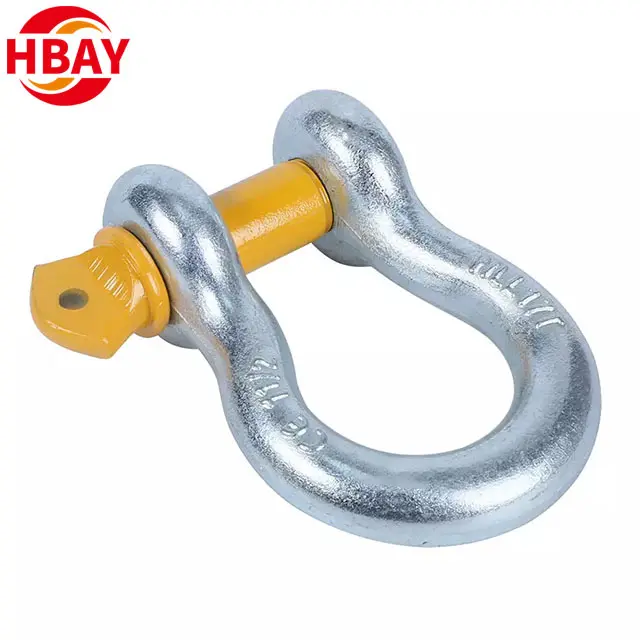

G209 3/4 Bow Shackle Design

Forging and Tempering

Manufacturers use forging to make each G209 3/4 bow shackle strong and reliable. In forging, workers heat metal until it glows. They shape it under high pressure. This process makes the metal dense and tough. After forging, the shackle goes through quenching. Workers cool the hot metal quickly in water or oil. This step locks in strength. Next, tempering happens. The shackle gets heated again, but not as hot as before. This step removes brittleness and adds flexibility. The result is a shackle that can handle heavy loads without cracking or breaking.

Forging and tempering give the G209 3/4 bow shackle its trusted strength. These steps help the shackle last longer, even in harsh weather or rough use. Many workers choose this shackle for tough jobs because it stands up to stress and keeps working.

Screw Pin Features

The screw pin is a key part of the G209 3/4 bow shackle. This pin holds the shackle closed during lifting. The design uses strong metal and careful shaping. The screw pin threads into the shackle body. This keeps the connection tight and secure.

• The screw pin design is forged for high performance, making it safe for heavy-duty lifting.

• The screw pin mechanism ensures a secure connection under heavy loads, stopping accidental disconnection.

• These shackles meet or exceed industry standards, so they are reliable in tough environments.

Workers can open and close the screw pin by hand. This makes it easy to attach or remove the shackle from chains, ropes, or slings. The screw pin also helps save time on the job. Safety improves because the pin stays in place, even when the load shifts or moves.

Grade 6 Strength

The G209 3/4 bow shackle is rated as Grade 6. This grade means the shackle has passed strict tests for strength and safety. Grade 6 shackles can handle very heavy weights. They also resist bending and breaking under stress.

The bow shape of the shackle gives extra benefits. It spreads the force from the load across the whole shackle. This helps prevent weak spots and makes lifting safer. The table below shows how the bow shape helps in lifting work:

Many users trust the G209 3/4 bow shackle for its durability. It works well in tough conditions. People pick it for lifting and rigging because it is reliable and safe.

Tip: Always check the grade and markings on your shackle before use. Grade 6 means the shackle is ready for heavy lifting and meets top safety standards.

Key Milestones

Tech Advances

G209 bow shackles have changed a lot with new technology. Early shackles were made from simple iron. Now, factories use forged alloy steel. This metal is much stronger and lasts longer. Machines shape and test each shackle. They make sure every shackle is the same size and strength.

Engineers improved the surface finish. Dacromet coating stops rust and keeps the shackle safe in wet places. Computer-aided design helps experts test new shapes before making them. This helps find the best design for safety and strength.

Some important advances are:

• Use of high-strength alloy steel for better load capacity.

• Improved screw pin designs for easier use and more security.

• Advanced coatings that protect against corrosion.

These changes help workers trust their equipment. They know each shackle will work as expected, even in tough jobs.

Regulatory Changes

Rules for shackles are much stricter now. Governments and safety groups want to keep workers safe. They set rules for how shackles must be made and tested. Companies must follow these rules to sell their shackles.

Today, workers look for shackles with clear markings. These markings show the shackle passed all tests. Certified shackles must display these marks for traceability. Workers should always use shackles with valid certifications. Regular testing and certification help everyone trust lifting equipment.

• Strict safety rules require certified lifting equipment.

• More ports and logistics centers mean more need for safe shackles.

• Replacing old equipment keeps safety standards high.

Regulatory changes push companies to make better, safer shackles. This protects workers and helps prevent accidents.

Modern Applications

Lifting and Rigging Uses

G209 bow shackles play a big role in many industries today. Workers use them to lift heavy machines, build bridges, and move large objects. These shackles connect slings, chains, and ropes to loads. The wide bow shape lets workers attach more than one sling at a time. This helps spread the weight and keeps the load steady.

G209 bow shackles work better than D shackles for jobs with loads coming from different directions. They can handle angles up to 45 degrees without losing strength. This makes them safer and more flexible for lifting tasks. Workers trust these shackles because they do not break easily and keep everyone safe on the job.

A G209 3/4 bow shackle is often chosen for tough lifting jobs. It can hold heavy weights and works well in places like shipyards, factories, and construction sites.

Tip: Always check the shackle before use. Look for cracks, rust, or bent pins to make sure it is safe.

Importance Today

G209 bow shackles are important in many new industries. They help build wind farms, solar plants, and other green energy projects. These shackles are strong and resist rust, so they work well in wet or salty places like the ocean.

• The G209 bow shackle market is expected to grow by 4-6% in the next five years.

• More money is being spent on building new energy projects.

• Offshore wind farms need high-quality shackles that do not rust.

Many companies choose G209 bow shackles because they meet strict safety rules. These shackles help workers finish jobs faster and safer. As more countries build new energy sites, the need for strong shackles will keep growing.

G209 bow shackles started as simple tools. Now, they are advanced lifting hardware. Changes in design and rules make them safer and stronger. Workers use these shackles for heavy lifting. Knowing their history helps people use them the right way. New ideas are making rigging hardware better:

The next group of shackles will be even safer and more reliable.

FAQ

What does "G209" mean on a bow shackle?

G209 is a standard code. It shows the shackle meets strict rules for size, strength, and safety. This code helps workers know the shackle is safe for lifting heavy loads.

How do I check if a G209 shackle is safe to use?

Look for clear markings like "G209," weight limits, and certifications. Check for cracks, rust, or bent pins. If you see damage, do not use the shackle.

Can G209 bow shackles be used outdoors?

Yes. G209 bow shackles have special coatings that protect them from rust and weather. They work well in rain, snow, and even salty air near the ocean.

What is the difference between a bow shackle and a D shackle?

Bow shackles are better for lifting with slings at different angles.

How often should I inspect my G209 bow shackle?

Check your shackle before every use. Regular inspections help find problems early. Replace the shackle if you see any damage or wear.
