Soft Shackle Vs Bow Shackle: Which Is Better?

Introduction

Soft shackles and bow shackles can both look “strong enough” on paper, but they behave very differently once load, surface contact, and working conditions come into play. A soft shackle may be safer and easier to handle on smooth rope or rounded points, while a bow shackle is often the better choice around steel hardware, sharp edges, or applications that require a clear WLL. Understanding that difference helps you choose a connector that fits the job instead of relying on the biggest strength number on the label.



Soft Shackle vs Bow Shackle: Core Differences

What a soft shackle is best designed to do

A soft shackle is made from high-strength synthetic rope, often using HMPE or similar fibers known for excellent tensile strength with very low weight. Its biggest advantage is flexibility: it can pass through tight spaces, wrap around smooth connection points, and avoid the clanking or surface damage associated with metal hardware. Because it has far less mass than steel, it also presents a lower impact hazard if a connection fails under tension. That makes it especially attractive for users who value fast handling, compact storage, and reduced risk around ropes, straps, or painted surfaces.

Smooth, rounded, and non-abrasive contact points are where this connector works best. A soft shackle can pair well with synthetic winch line, kinetic rope, webbing straps, and rope-to-rope connections, provided the bend radius is friendly to the fibers. It also floats, which can be useful in mud, water, or marine-adjacent work. The limitation is equally clear: synthetic fibers dislike sharp steel, burrs, heat, grit, and hidden abrasion.

What a bow shackle is best designed to do

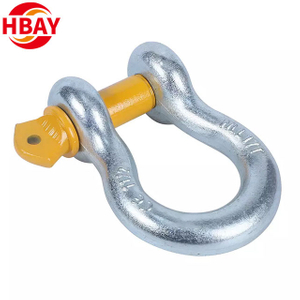

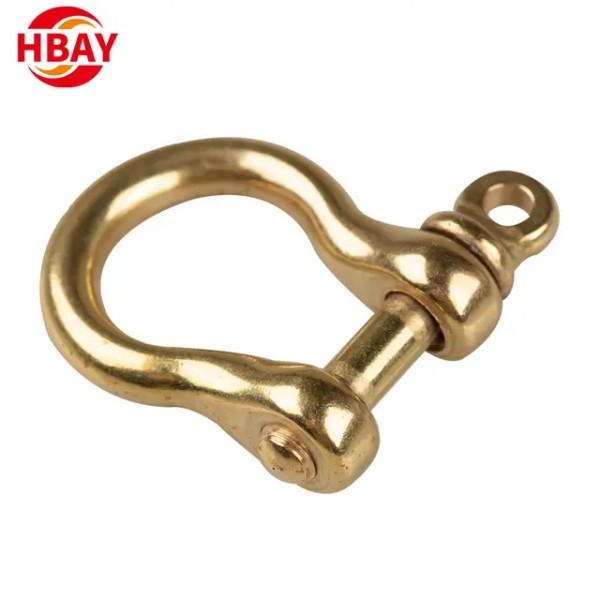

A bow shackle is a rigid metal connector with a wide, rounded body and a removable pin. Common versions are made from forged steel, galvanized steel, stainless steel, or alloy steel, depending on the environment and strength requirement. The bow shape gives it more internal space than a D shackle, making it useful with slings, chains, hooks, towing points, lifting lugs, and other hardware that may not align perfectly in a narrow connector. Its core advantage is durability against rough contact surfaces that would quickly damage synthetic rope.

Where steel hardware meets steel hardware, a bow shackle often makes more sense. It tolerates abrasion, hard edges, and repeated contact with metal plates better than a soft shackle. Certified models also tend to have visible WLL markings, size details, and manufacturer identification, which helps in lifting, rigging, and controlled industrial use. That visibility matters when a connector must be inspected, documented, or matched to a known load.



Safety and Failure Modes: What Can Go Wrong With Each Shackle

Bow shackle risks: side loading, pin damage, and steel projectile hazard

A bow shackle is strongest when the load is applied correctly through the intended line of pull. Problems begin when it is side loaded, pulled at a poor angle, or forced into hardware that prevents proper seating. Side loading can spread the bow, bend the pin, damage threads, and reduce the usable capacity of the connector. Even a high-quality steel shackle can become unsafe when the load path is wrong.

The other risk is mass. Steel hardware under tension can become hazardous if a strap, chain, rope, recovery point, or pin fails suddenly. That does not mean a bow shackle should be avoided in every dynamic application, but it does mean line-of-pull control is essential. No one should stand near a loaded line, and the connector should never be used with a damaged pin, wrong replacement bolt, or unclear load rating.

Soft shackle risks: cutting, fraying, heat, and hidden fiber damage

A soft shackle reduces some impact risk because it has far less mass than steel, but it introduces a different failure mode: fiber damage. Sharp edges, burrs, grit, and repeated rubbing can cut or weaken the rope. Heat can glaze or melt fibers, while chemicals and UV exposure can degrade them over time. Once the fibers are compromised, the shackle may no longer behave like its published rating suggests.

This is why contact surface inspection is critical. A soft shackle should not be placed through a rough steel hole simply because it fits. The sleeve should be checked for wear, the rope should be flexed and examined, and the knot should remain correctly formed. If the connector feels stiff, looks fuzzy, shows cut strands, or has visible heat damage, retirement is safer than reuse.



Application Fit: Which Shackle Works Better in Each Use Case?

Lifting and rigging applications

For lifting and rigging, a bow shackle is usually the more appropriate choice because these applications depend on known WLL, traceability, proof testing, and predictable hardware behavior. Slings, hooks, chain assemblies, lifting lugs, and controlled load paths often require metal connectors that can be inspected against recognized standards. The wide bow shape is useful when multiple sling legs or wider components need room to seat correctly. A screw pin style may suit temporary connections, while a bolt-type version is often preferred for longer-duration or more secure installations.

Soft shackles may be used in some specialized industries, but they are not a casual substitute for certified rigging hardware. The question is not only whether the rope is strong enough. The bigger issue is whether the product is approved for that use, whether the contact surfaces are safe for fibers, and whether the inspection team can verify service condition. When formal lifting is involved, documentation can matter as much as tensile strength.

Towing, recovery, and utility pulling

In towing, recovery, and utility pulling, the choice depends on whether the connection is rope-friendly or steel-heavy. A soft shackle can work well with straps, synthetic ropes, and smooth attachment points because it is light and easy to handle. It also avoids metal-on-metal noise and reduces the chance of scratching finished surfaces. Where dynamic loads are present, the reduced mass can be a meaningful safety advantage.

A bow shackle becomes more suitable when the connection involves steel tow points, rough plates, hooks, chains, or hardware with questionable edge radius. It can also serve as a protective bridge between abrasive metal and softer equipment. The goal is to avoid asking synthetic rope to survive against surfaces that are better handled by steel. For mixed hardware, the safest setup often uses each connector where its material performs best.

Marine, outdoor, and corrosive environments

Wet and corrosive environments create a different trade-off. A soft shackle will not rust, and it floats, making it attractive around water, mud, and temporary outdoor use. However, salt, grit, UV exposure, and poor storage can still degrade synthetic fibers. Rinsing, drying, and storing away from sunlight or chemicals helps preserve service life.

A bow shackle can perform well outdoors when the material and finish match the environment. Galvanized steel offers useful corrosion protection for many general applications, while stainless steel is often chosen for marine or highly corrosive settings. Corrosion pitting, seized threads, and unreadable markings are warning signs, not cosmetic details. A rusty connector may still look strong, but damaged threads or hidden cracking can make it unreliable.

Temporary connection vs long-term installation

Soft shackles are best treated as removable connectors. They are quick to install, easy to pack, and convenient when the connection is temporary and surfaces are smooth. Leaving them exposed long term may invite UV damage, contamination, abrasion, or unnecessary wear. Their strength comes from healthy fibers, not permanent exposure.

Long-term installations usually favor metal hardware, but the pin type matters. A properly secured screw pin bow shackle may work for temporary or frequently changed setups, while a bolt-type shackle is often better when vibration, movement, or extended installation time is expected. Any permanent or semi-permanent connection should still be inspected regularly. Hardware that is forgotten is often hardware that fails unnoticed.



Strength and Ratings: Soft Shackle vs Bow Shackle

Soft shackle ratings depend on rope condition and contact surface

A soft shackle is often advertised by breaking strength, which refers to the point where the rope may fail during testing. That number can look impressive, especially when compared with the WLL stamped on a metal shackle. However, breaking strength is not the same as a normal working rating. If the rope bends tightly, rubs against a rough hole, or touches a sharp edge, its usable strength can drop quickly.

Surface condition matters as much as the printed number. A smooth, rounded contact point allows the fibers to share load more evenly, while a narrow steel plate, burr, or abrasive edge can concentrate force on one small section of rope. That is why a soft shackle may be suitable for smooth, non-abrasive connections but less suitable for steel hardware that can cut or grind synthetic fibers.

Bow shackle ratings are easier to check, but only when used correctly

A bow shackle is usually marked with a Working Load Limit, or WLL, on the body. This tells the user what load the shackle is designed to handle in normal service when it is used correctly. Size, maker’s mark, and sometimes traceability markings may also be stamped into the metal. These details make the shackle easier to verify before use.

The rating still depends on proper loading. A bow shackle should not be side loaded, pulled at a severe angle, or used with a bent pin, damaged threads, unreadable markings, or a non-original replacement pin. It is often the better option for chains, hooks, lifting points, tow points, and abrasive steel hardware, but only when the load path matches the way the shackle was designed to work.



Conclusion

Choosing between a soft shackle and a bow shackle comes down to load rating, contact surface, load direction, and inspection needs. Soft shackles are useful for lightweight, low-impact connections on smooth surfaces, while a bow shackle remains more suitable for steel hardware, abrasive points, and applications that require clear WLL markings.

Hebei Anyue Metal Manufacturing Co., Ltd. provides metal shackle products for buyers who need durable, traceable hardware for lifting, towing, rigging, and general connection work. Selecting the right shackle helps reduce misuse, simplify inspection, and keep each connection better matched to the job.



FAQ

Q: Is a soft shackle stronger than a bow shackle?

A: Not always. Soft shackles often show breaking strength, while a bow shackle usually shows WLL. Compare rating types, contact surface, and load direction before choosing.

Q: When should I use a bow shackle instead of a soft shackle?

A: Use a bow shackle when connecting to steel hardware, sharp edges, chains, lifting points, or abrasive surfaces where synthetic fibers could be cut or damaged.

Q: Are soft shackles safer than metal shackles?

A: Soft shackles are often safer in impact risk because they are lightweight. However, they can fail quickly on sharp or rough surfaces without proper protection.

Q: Can a bow shackle be used for lifting?

A: Yes, but only if it is properly rated, marked with WLL, inspected, and suitable for the load path. Unmarked or damaged shackles should not be used.

Q: What is the main difference between WLL and breaking strength?

A: WLL is the safe working limit for normal use. Breaking strength is the failure point under test conditions, usually much higher but not a working rating.

Q: How do I know if a shackle should be replaced?

A: Replace metal shackles with bent pins, cracks, corrosion pitting, or unreadable markings. Replace soft shackles with cuts, fraying, heat damage, or distorted knots.
