Wire Rope Clip Vs Wire Rope Sleeve: Which Should You Use?

Wire rope clips and wire rope sleeves are commonly used to create secure wire rope terminations. However, they differ in installation methods, connection design, and maintenance requirements.

A wire rope clip provides a mechanically fastened connection that can be adjusted or removed. A wire rope sleeve creates a permanent termination through controlled compression.

This guide compares their construction, strength, applications, installation requirements, and safety considerations to help you choose the appropriate fitting for your wire rope assembly.

Understanding Wire Rope Clips: Features and Applications

Construction and Materials of Wire Rope Clips

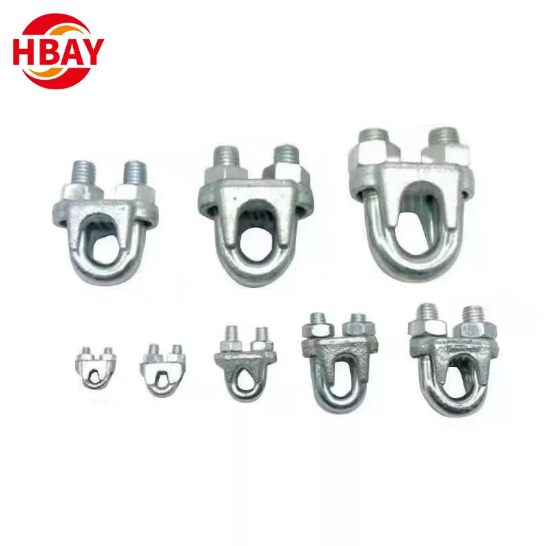

Wire rope clips generally consist of a U-shaped bolt, a saddle, and two nuts. The U-bolt fits around the rope, while the saddle supports the section carrying the main load.

Common materials include forged steel, malleable iron, and stainless steel. Different materials and manufacturing methods provide different mechanical properties.

Galvanized steel clips offer corrosion protection for many outdoor applications. Stainless steel versions may be selected when additional corrosion resistance is required.

However, suitability depends on the clip's design, working conditions, and manufacturer specifications.

How Wire Rope Clips Secure Wire Ropes

Wire rope clips secure a termination by clamping the rope's dead end against its live end.

The live end carries the primary load, while the dead end is the shorter tail extending beyond the loop.

Correct installation requires positioning the saddle on the live end and the U-bolt over the dead end for conventional U-bolt clips.

The nuts must be tightened to the manufacturer's specified torque.

The required number of clips, spacing, and rope turnback length depend on the rope diameter and the fitting manufacturer's instructions.

Common Uses and Industries Utilizing Wire Rope Clips

Wire rope clips are used in construction, marine operations, agriculture, and general industrial rigging.

Typical applications include:

• Guy wire terminations and tensioning systems.

• Cable bracing and support arrangements.

• Selected marine and agricultural cable assemblies.

• Adjustable wire rope loops.

• General-purpose wire rope connections where permitted.

Their removable construction makes them convenient when adjustments or disassembly may be necessary.

However, not every clip design is suitable for lifting operations or safety-critical applications.

Advantages of Using Wire Rope Clips

Wire rope clips offer several practical benefits for suitable applications.

Installation flexibility: Clips can be installed using commonly available tools, including a torque wrench.

Adjustability: The connection can be repositioned or modified when permitted by the installation requirements.

Convenient inspection: The external components remain accessible for visual examination.

Initial cost: Clip assemblies may require lower initial investment than professionally swaged terminations.

These advantages depend on correct clip selection and installation.

Improper tightening, insufficient clip quantity, or incorrect orientation can reduce termination efficiency and create serious safety risks.

Tip: Always follow the clip manufacturer's specified quantity, spacing, turnback length, and tightening torque. There is no universal minimum clip count suitable for every rope diameter.

Understanding Wire Rope Sleeves: Features and Applications

Construction and Materials of Wire Rope Sleeves

Wire rope sleeves, also called ferrules or swage sleeves, are tubular fittings designed to form permanent rope terminations.

They are commonly manufactured from aluminum, copper-based alloys, or steel, depending on the intended application.

During installation, the wire rope passes through the sleeve to form an eye or another approved termination arrangement.

A suitable press or swaging tool compresses the sleeve around the rope.

This mechanical deformation creates the completed connection.

Material selection must account for compatibility with the rope construction, sleeve dimensions, and applicable assembly requirements.

How Wire Rope Sleeves Function to Secure Wire Ropes

Wire rope sleeves secure a connection through controlled mechanical compression.

The sleeve is positioned around the required rope sections and compressed using approved tooling.

Correct compression creates sufficient mechanical engagement between the sleeve and wire rope.

Unlike removable clips, a swaged sleeve generally cannot be adjusted or reused after installation.

Termination strength depends on several factors:

• Correct sleeve material and dimensions.

• Compatibility with the wire rope construction.

• Approved pressing equipment and dies.

• Proper compression sequence.

• Final dimensional verification.

An improperly swaged sleeve can fail even when the sleeve itself is manufactured from a high-strength material.

Typical Applications and Industries for Wire Rope Sleeves

Wire rope sleeves are commonly used in applications requiring permanent cable terminations.

The actual suitability of a sleeve depends on its certification, wire rope compatibility, and applicable technical requirements.

Benefits of Using Wire Rope Sleeves

Swaged sleeves create compact, permanent terminations without external nuts or U-bolts.

This construction is useful where limited space or a streamlined connection is desirable.

Properly manufactured sleeve terminations can provide high connection efficiency. However, their strength must be verified for the specific sleeve and rope combination.

Once installed, the sleeve does not require nut retightening.

Nevertheless, the assembly still requires periodic inspection for corrosion, deformation, rope damage, and other signs of deterioration.

Comparison Between Wire Rope Clips and Wire Rope Sleeves

Differences in Installation Processes

Wire rope clips are installed mechanically using a specified arrangement of fittings.

The installer positions each clip correctly and tightens the nuts according to the manufacturer's instructions.

A torque wrench is normally required to achieve the specified tightening torque.

In comparison, wire rope sleeves are installed using specialized pressing or swaging equipment.

The sleeve must be compressed using suitable dies and a controlled process.

Both methods require proper training, but their tooling and inspection requirements differ.

Strength and Durability Comparison

Termination strength depends on the fitting design, rope construction, and installation quality.

A properly manufactured swaged termination may provide high efficiency compared with the wire rope's minimum breaking force.

Wire rope clips can also create secure terminations when used within their approved application limits.

However, their efficiency and permissible use depend on the specific fitting.

Neither method should be considered universally stronger without comparing certified termination performance.

Cost Considerations Between Clips and Sleeves

Wire rope clips usually cost less upfront due to simpler design and installation. They save money on tools and labor, making them ideal for short-term or adjustable applications.

Wire rope sleeves involve higher initial costs, including the price of sleeves and swaging equipment or professional installation. However, their long-term durability and low maintenance may offset these costs in permanent setups.

Safety and Reliability Factors

Both connection types can provide reliable performance when designed and installed for their intended applications.

The main differences are summarized below.

For lifting or other safety-critical applications, select a termination explicitly approved for that service.

Suitability for Different Wire Rope Sizes and Types

Wire rope clips are available for different rope diameters and constructions.

However, the clip size must match the intended wire rope, and certain rope constructions may require specialized fittings.

Wire rope sleeves also require precise compatibility with the rope's diameter and construction.

Coated ropes, compacted ropes, and specialty constructions may have additional termination requirements.

Always verify the approved fitting range before making an assembly.

When to Use Wire Rope Clips

Situations Ideal for Wire Rope Clip Usage

Wire rope clips work best for temporary or adjustable connections. Use them when you need to form loops quickly or change loop sizes often. They are great for guy wires, tensioning cables, or short-term rigging tasks. Clips also suit emergency repairs or setups requiring frequent disassembly. Their ease of installation makes them popular on construction sites and farms where speed matters.

Load and Tension Considerations

Wire rope clip assemblies must be designed for the expected loading conditions.

Their performance depends on the clip rating, rope construction, installation configuration, and termination efficiency.

The correct number of clips must be selected from the manufacturer's installation table.

Adding more clips does not automatically make an otherwise unsuitable termination safe for a prohibited application.

For dynamic loading, vibration, or critical service, additional engineering assessment may be necessary.

Environmental Factors Influencing Choice

Galvanized clips resist rust in outdoor or marine environments, making them suitable for exposed conditions. Stainless steel clips offer better corrosion resistance for harsh climates or chemical exposure. However, clips may corrode faster than sleeves in very aggressive environments. Choose clips only if you can maintain and inspect them regularly to prevent failure.

Maintenance and Inspection Tips for Wire Rope Clips

Regular inspection is essential for maintaining connection reliability.

Check for loose or damaged nuts, corrosion, deformation, and changes in the rope's position.

Verify tightening torque according to the manufacturer's inspection and retightening instructions.

Clips showing significant damage, distortion, or unacceptable corrosion should be removed from service.

Inspection frequency should reflect the application, operating conditions, and applicable safety requirements.

Tip: Do not rely on a fixed number of clips or a single spacing rule. Use the installation data provided for the exact fitting model and rope diameter.

When to Use Wire Rope Sleeves

Scenarios Best Suited for Wire Rope Sleeves

Wire rope sleeves are suitable for applications requiring a permanent connection.

They are often selected for manufactured wire rope assemblies, fixed cable terminations, and approved lifting sling configurations.

Their compact design is particularly useful when a connection must remain in place without regular adjustment.

However, sleeve selection must correspond to the intended application and applicable assembly standards.

Load Capacity and Tension Handling

Sleeves handle heavy loads and high tension better than clips. When swaged correctly, they create a solid bond that resists slipping under dynamic or static stresses. This makes sleeves suitable for critical lifts, overhead hoisting, or any application where failure risks life or property. Always select sleeves rated for your wire rope’s diameter and load requirements. Proper swaging ensures the connection meets or exceeds the rope’s breaking strength.

Environmental and Operational Considerations

Aluminum and copper-based sleeves offer different corrosion and mechanical characteristics.

Steel sleeves may be selected for applications requiring particular strength or compatibility properties.

Environmental exposure should guide the choice of fitting material.

Although swaged sleeves do not require nut retightening, they are not maintenance-free.

Regular inspection remains necessary, especially in marine, industrial, or high-vibration environments.

Inspection and Maintenance of Wire Rope Sleeves

Although sleeves are low maintenance, regular inspection is essential. Check for cracks, corrosion, or deformation in the sleeve and adjacent rope strands. Look for any signs of slippage or wear around the swaged area. Replace sleeves showing damage or if the rope itself shows fatigue near the connection. Avoid reusing sleeves once removed, as their deformation prevents proper reseating. Document inspections to track sleeve condition over time and ensure ongoing safety.

Installation and Safety Tips for Wire Rope Clips and Sleeves

Step-by-Step Installation Guide for Wire Rope Clips

Wire rope clips must be installed according to the instructions for the specific model and wire rope.

A general installation sequence includes:

1. Select a clip approved for the rope diameter and construction.

2. Determine the required turnback length and clip quantity from the manufacturer's instructions.

3. Form the rope eye using a suitable thimble where required.

4. Position the saddle on the live end and the U-bolt over the dead end for conventional U-bolt clips.

5. Install the remaining clips at the specified locations.

6. Tighten the nuts evenly using the specified torque.

7. Apply the required initial loading or proof procedure where specified.

8. Recheck the assembly according to the manufacturer's instructions.

The required spacing, tightening torque, and clip quantity vary by product.

Therefore, general examples should never replace the manufacturer's installation chart.

Step-by-Step Installation Guide for Wire Rope Sleeves

Sleeve installation requires an approved combination of rope, fitting, dies, and pressing equipment.

The general process involves:

1. Verify compatibility between the sleeve and wire rope.

2. Prepare the rope end according to the applicable assembly procedure.

3. Insert the rope through the sleeve and form the intended termination.

4. Position the sleeve and rope sections correctly.

5. Compress the sleeve using approved equipment and the specified pressing sequence.

6. Check the finished dimensions with the required inspection tools.

7. Inspect the assembly for visible defects.

8. Complete any required testing and documentation.

The compression pattern and final dimensional tolerances must follow the sleeve manufacturer's instructions.

Common Mistakes to Avoid

Incorrect installation can significantly reduce termination reliability.

Typical mistakes include:

• Installing a conventional U-bolt clip with the saddle on the dead end.

• Using too few clips for the specified rope diameter.

• Applying incorrect tightening torque.

• Using incompatible sleeve materials or dimensions.

• Selecting incorrect swaging dies.

• Failing to verify compressed sleeve dimensions.

• Ignoring rope damage near the termination.

• Reusing damaged fittings.

Avoiding these errors requires suitable training and proper installation procedures.

Safety Standards and Compliance

Wire rope connections may be subject to industry-specific safety requirements.

Applicable references can include OSHA regulations, ASME standards, and relevant ISO standards.

However, the correct requirements depend on the type of assembly and intended use.

Buyers and installers should verify:

For overhead lifting, personnel-support systems, and other critical applications, the required termination type should be established before assembly.

Regular inspection and replacement guidelines

• Inspect clips and sleeves before each use in critical applications.

• Check for corrosion, deformation, slippage, or cracks.

• Retighten clip nuts periodically, especially after heavy loads or vibrations.

• Replace clips showing wear, corrosion, or thread damage.

• Remove sleeves from service if deformation, cracks, or rope damage appear.

• Maintain inspection records to track component lifespan and maintenance history.

Conclusion

Wire rope clips and wire rope sleeves serve different purposes in wire rope termination systems. Clips provide a removable, adjustable connection, while swaged sleeves create permanent terminations through controlled compression.

The appropriate choice depends on the rope construction, required load capacity, operating environment, and applicable safety standards. Correct installation and regular inspection remain essential for both methods.

Hebei Anyue Metal Manufacturing Co., Ltd. supplies wire rope fittings for industrial applications. When selecting clips or sleeves, buyers should confirm product specifications and compatibility with their intended wire rope assemblies.

FAQ

What Is a Wire Rope Clip and How Does It Work?

A wire rope clip is a mechanical fitting that clamps the dead end of a wire rope to its live end. Conventional U-bolt clips use a U-bolt, saddle, and nuts to create an eye or termination.

When Should I Use a Wire Rope Clip Instead of a Sleeve?

Wire rope clips may be suitable for adjustable or removable connections where the fitting is approved for the intended application. Permanent connections are often better served by appropriately swaged sleeve terminations.

Why Is Proper Installation Important for Wire Rope Clips?

Incorrect installation can reduce termination strength and cause rope slippage. The correct clip quantity, orientation, spacing, and tightening torque must follow the manufacturer's instructions.

How Do Wire Rope Clips Compare in Cost to Wire Rope Sleeves?

Clips may have a lower initial installation cost, while sleeves require suitable swaging equipment or professional assembly. Long-term costs depend on production volume, maintenance, and inspection requirements.

What Maintenance Is Needed for Wire Rope Clips?

Inspect clips for loose nuts, corrosion, deformation, and rope movement. Verify tightening torque and replace components according to the manufacturer's instructions and applicable safety requirements.
