What Is The Difference between A Bow Shackle And An Anchor Shackle?

Are a Bow Shackle and an anchor shackle the same thing? The terms are often used interchangeably, which can confuse buyers choosing hardware for lifting, towing, rigging, or marine use. In this guide, you will learn the practical differences, when each term matters, and how to choose based on shape, load rating, pin type, and environment.

Bow Shackle vs Anchor Shackle: What Is the Real Difference?

Why the Two Terms Are Often Used Interchangeably

In many rigging, lifting, towing, and marine hardware discussions, bow shackle and anchor shackle are used to describe a similar piece of equipment: a shackle with a large, rounded, O-shaped body and a removable pin. This rounded body gives both designs more internal space than a D shackle or chain shackle, making them useful when the connection is not limited to a single straight-line pull.

This overlap is the main reason buyers search for the difference. A product may be labeled as a bow shackle in one place and an anchor shackle in another, even when the general shape and intended function appear nearly identical. For buyers comparing hardware before purchase, the key is not only the name but also the actual body shape, opening size, pin style, working load limit, and intended loading direction.

The Subtle Shape Difference

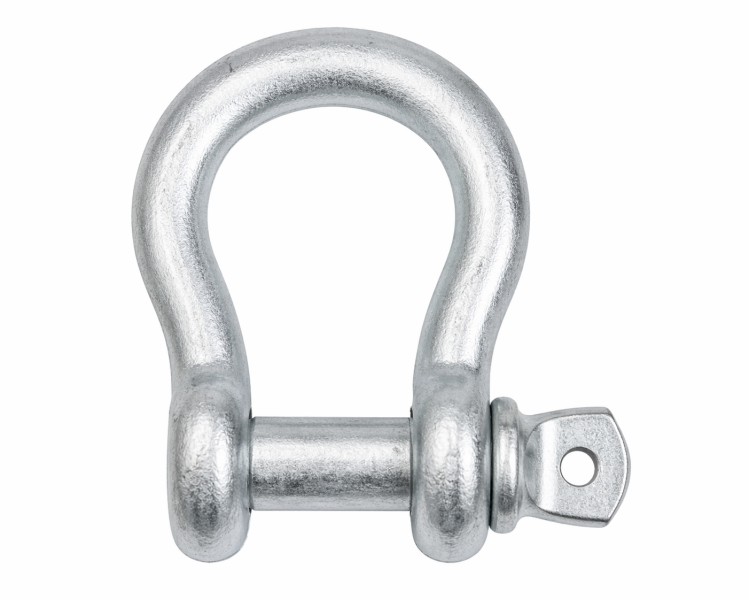

Although the terms often overlap, there can be a small design distinction. A Bow Shackle typically has a wider and more clearly rounded bow area, giving it a fuller, more open body shape. An anchor shackle also has a rounded body, but its internal opening may be slightly more compact depending on the manufacturer or specification.

Because the difference is often subtle, users should avoid choosing by product name alone. Actual dimensions, jaw opening, pin diameter, and working load limit provide a more reliable basis for comparison than the label printed in a catalog.

Why the Difference Matters in Use

The size of the bow affects how easily the shackle accepts wide straps, rope eyes, sling legs, or bulky attachment points. A larger bow gives the hardware more connection space, which can help reduce crowding when multiple components meet at one point. A more compact rounded shackle may still work well for simpler load setups where only one connection is needed and the load path is easier to control.

In practical use, the distinction becomes more important when the load is angled, shifting, or connected through more than one point. A wider bow can make rigging easier in multi-leg sling assemblies or towing setups where the pull may not stay perfectly centered. However, shape alone does not determine safety. The shackle must still match the load weight, fit the connected hardware properly, and be used within its rated working load limit.

How Shape Affects Load Direction, Strength, and Connection Space

Internal Clearance and Multi-Point Connections

The wider body of a Bow Shackle gives it more internal clearance than a narrow D shackle or chain shackle. This extra space is one of the main reasons bow-style shackles are used when a connection point needs to accept more than one component. In practical rigging, the shackle may need to connect multiple sling legs, larger rope eyes, wide lifting straps, or hardware with thicker attachment points. A wider bow gives these parts more room to sit naturally inside the shackle body instead of being forced into a tight angle.

This matters because poor fit can affect how the load is transferred through the shackle. When too many components are crowded into a small opening, they may overlap, twist, or press unevenly against the pin or body. That can create poor alignment and uneven loading, especially in lifting or pulling setups where the load shifts during use. A Bow Shackle or anchor shackle with enough internal space helps the connected parts settle more evenly, reducing the chance of unnecessary stress at one point.

Side Loading and Angled Pulls

Both bow shackles and anchor shackles handle angled loads better than D shackles because their rounded bodies allow the load to sit across a broader curve. This makes them useful when the pull does not remain perfectly straight, such as in multi-leg sling assemblies, recovery work, marine use, or general rigging where the load direction can shift. The rounded shape helps reduce the concentrated stress that would be more likely to twist a narrow shackle body.

However, this does not mean bow or anchor shackles can be side loaded without limits. Angled loading can reduce the working load capacity of the shackle, even when the shackle is designed to tolerate some side pull. The larger the angle away from a straight in-line load, the more carefully the user must evaluate the setup. Manufacturer guidance should always be followed when the load is not centered, because rated capacity can change depending on the loading angle, shackle size, and design.

Key checks before using a bow or anchor shackle with an angled pull include:

● Confirm that the shackle is rated for the expected load direction.

● Check whether the working load limit must be reduced for the angle.

● Make sure sling legs or fittings sit on the shackle body rather than crowding the pin.

● Avoid twisting, racking, or forcing the shackle into a position it was not designed to handle.

Strength Trade-Off Compared with D Shackles

The larger rounded body of a bow or anchor shackle improves flexibility, but that flexibility can come with a strength trade-off. Compared with a more compact D shackle of similar material and size, the broader loop may offer slightly less direct strength for a simple straight-line pull. This is not a weakness in the design; it is a difference in purpose. Bow and anchor shackles are built for connection space and loading flexibility, while D shackles or chain shackles are generally better suited to high in-line tension where the load stays centered.

For a straight pull between two aligned points, a D shackle may be the more efficient choice because its narrower body keeps the load path closer to the centerline. For applications involving wide straps, multi-leg slings, or changing pull angles, a Bow Shackle or anchor shackle is usually more practical. The right choice depends on whether the application needs maximum in-line efficiency or more room and flexibility at the connection point.

Choosing a Bow Shackle or Anchor Shackle by Application

When a Bow Shackle Is the Better Choice

A Bow Shackle is usually the better choice when the connection point needs more room than a standard narrow shackle can provide. Its wider, rounded body makes it suitable for multi-leg slings, wide straps, synthetic slings, recovery straps, and bulky fittings that would otherwise feel crowded in a smaller opening. In these applications, the benefit is not only easier attachment but also better positioning of the connected components inside the shackle body.

A bow shackle is also useful when the load may pull from different angles during rigging, towing, or recovery. For example, a towing or pulling setup may shift as the load moves, while a multi-leg sling assembly may place force on the shackle from more than one direction. The wider bow helps reduce crowding and gives the connection more flexibility, but the shackle still needs to match the required working load limit and loading angle.

When an Anchor Shackle Is a Practical Choice

An anchor shackle is a practical option for many general lifting, rigging, towing, securing, and marine hardware applications. Since it also has a rounded body, it can handle a wider range of connection angles than a D shackle when used correctly. It works especially well when the job calls for a rounded shackle body but does not require the maximum internal clearance of a wider bow design.

For general use, the choice often comes down to fit, rating, and hardware compatibility rather than the name alone. If the anchor shackle gives the connected hardware enough space and meets the required load rating, it can be a reliable choice for standard rigging or securing work.

Matching the Shackle to the Working Environment

The working environment should guide material selection as much as shackle shape. Galvanized shackles are commonly used in general industrial environments where corrosion exposure is moderate. The zinc coating helps protect the steel from rust, making galvanized hardware a cost-effective choice for many lifting, towing, and securing tasks.

Stainless steel shackles are better suited for marine, wet, saltwater, or high-corrosion environments. In these conditions, corrosion resistance can directly affect long-term reliability, especially when hardware is exposed to moisture, spray, or outdoor weather. Material choice should always be considered together with working load limit, fit, pin type, and the way the shackle will be loaded in the actual application.

Key Selection Factors Before You Buy or Use One

Working Load Limit Comes First

Before choosing a bow shackle or anchor shackle, the working load limit should be the first specification you check. The shackle must meet or exceed the load requirements of the job, but the required rating is not based only on the weight being lifted or pulled. The actual stress on the shackle can change depending on the rigging arrangement, the load angle, and how many components are connected to the shackle body. Two shackles that look almost identical may have different ratings, especially if they use different materials, pin designs, or manufacturing standards.

A safe selection process should never rely on appearance alone. The marking, size, pin diameter, and working load limit should be verified before the shackle is used in any load-bearing application.

Pin Type Affects Safety and Convenience

The pin style can change how convenient, secure, or suitable a shackle is for a specific job. Screw pin shackles are commonly used when fast connection and removal are important. They are practical for temporary rigging, lifting setups that change often, or applications where the hardware needs to be assembled and taken apart quickly. However, the pin should be checked and tightened properly before use, especially if movement or vibration could loosen it.

Bolt-type shackles are a better choice for longer-term, more secure, or vibration-prone applications. Their bolt, nut, and retaining pin arrangement helps keep the connection stable when the load may rotate, shift, or remain connected for an extended period. Captive pin designs are useful in situations where losing the pin would create a problem, such as marine work, elevated job sites, or outdoor environments where dropped parts are difficult to recover. In these cases, the right pin type improves both safety and handling efficiency.

Fit and Load Alignment Should Be Checked

A shackle should allow the connected straps, slings, ropes, chains, or fittings to sit naturally inside the body without being forced into position. If the attached component is too wide for the opening, it may bunch, pinch, or press unevenly against the shackle. This is one reason a Bow Shackle is often preferred for wide straps or multiple sling legs, while a more compact shackle may suit simpler connections.

Load alignment is just as important as fit. Multiple sling legs should rest on the body of the shackle, not directly on the pin. When the load is placed incorrectly, the pin may experience bending force or the body may twist under stress. Poor alignment can reduce performance and increase the risk of deformation, uneven wear, or unsafe loading during lifting, towing, or rigging work.

Common Mistakes When Comparing Bow Shackles and Anchor Shackles

Choosing Only by Name

One common mistake is assuming that every product labeled “bow shackle” or “anchor shackle” follows the exact same design. In reality, product names are not always used consistently across suppliers. Since the two terms often overlap, the label alone does not tell you enough about the shackle’s actual shape, capacity, or best use.

Before buying or using one, check the details that directly affect performance:

● Body dimensions and internal opening

● Working load limit

● Pin type and pin diameter

● Material or surface finish

● Markings and rating information

This is especially important when comparing similar-looking shackles from different sources. Two rounded shackles may appear nearly identical, but one may have a wider bow, a different pin system, or a lower rated capacity.

Ignoring Angled Load Capacity

Another mistake is treating rounded shackles as if they can handle any side load without capacity loss. Bow shackles and anchor shackles are generally better suited to angled pulls than D shackles because of their rounded bodies, but they still have limits. When the load angle changes, the stress pattern through the shackle also changes, which can reduce the safe working capacity.

Side loading, twisting, or racking can create unsafe stress if the setup is not planned correctly. Users should confirm whether the shackle is rated for the intended loading angle and follow the manufacturer’s reduction guidance when the pull is not straight in line.

Using the Wrong Shackle for In-Line Loads

A bow or anchor shackle is often selected because it provides more space, more angle flexibility, or easier multi-point connection. However, that does not mean it is always the best choice. If the load is strictly in line and only one direct connection is needed, a D shackle or chain shackle may be more efficient because its narrower body is designed around straight-line tension.

The safest choice depends on the full rigging setup, including load direction, connection hardware, sling arrangement, working load limit, and fit inside the shackle body.

Conclusion

Bow shackles and anchor shackles are often used interchangeably, but a Bow Shackle usually has a wider, more defined bow area. Choose by working load limit, load direction, pin type, material, and fit, not by name alone. Hebei Anyue Metal Manufacturing Co., Ltd. provides reliable shackle products that support safer lifting, rigging, towing, and marine applications.

FAQ

Q: Is a Bow Shackle the same as an anchor shackle?

A: A Bow Shackle and anchor shackle are often used interchangeably, but bow shackles usually have a wider rounded body.

Q: When should a Bow Shackle be used?

A: Use a Bow Shackle for wide straps, multi-leg slings, bulky fittings, or angled load directions.

Q: Is an anchor shackle better for straight pulls?

A: Not always. A D shackle may suit straight in-line pulls better than a Bow Shackle or anchor shackle.
