How To Use A Bow Shackle Safely in Rigging

A small connector can decide whether a lift stays safe or fails. A Bow Shackle is one of the most important load-bearing parts in rigging, even though it looks simple. In this guide, you will learn how to choose, inspect, secure, align, and use it safely while avoiding overload and side loading.

Choosing the Right Bow Shackle for the Rigging Task

Selecting the right Bow Shackle is the first safety decision in any rigging setup. A shackle should never be chosen only because it “looks strong enough” or fits through the nearest lifting point. Its shape, working load limit, pin design, material, and compatibility with the rest of the rigging assembly all affect whether the connection can safely carry the load. Bow shackles are especially useful when a rigging point may involve multiple sling legs or load forces that are not perfectly straight, but that flexibility does not remove the need for proper selection.

Match the Bow Shackle to the Load and Application

A Bow Shackle must match the lifting method, load weight, attachment point, and connected rigging hardware. In practical rigging, it may be used to connect wire rope slings, chain slings, synthetic slings, hooks, hoists, lifting lugs, or other load-bearing hardware. The rounded bow gives more room for wider connections and multi-leg sling arrangements, which makes it more adaptable than a narrow shackle body in many lifting scenarios.

Before use, check that the shackle fits naturally into the system. The pin should pass through the lifting point without forcing, and the bow should allow the sling or connected hardware to sit without twisting, bunching, or side pressure. If the connection point is too narrow, the load may shift off-center and create uneven stress. If it is too wide or poorly matched, the shackle may not seat correctly during the lift.

Check the Working Load Limit Before Use

The Working Load Limit, or WLL, must be clearly marked on the shackle and suitable for the actual force created during the lift. This is not always the same as the static weight of the load. Sling angle, lifting method, load movement, and the number of connected sling legs can all increase the force placed on the Bow Shackle.

Select the Right Pin Type

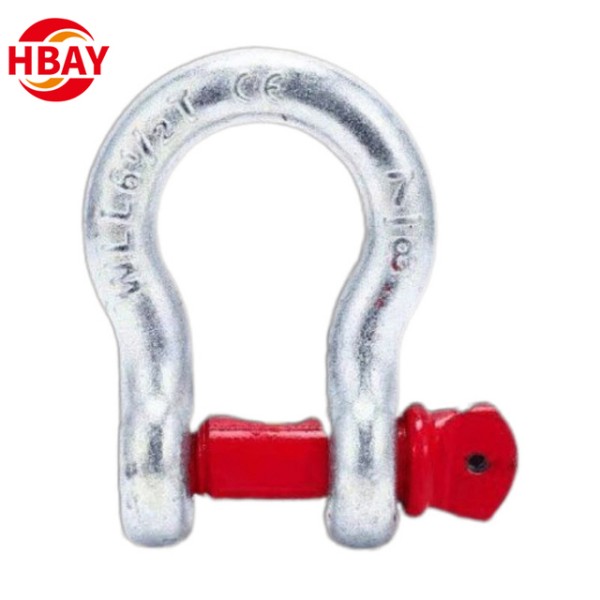

Pin choice should reflect how and where the Bow Shackle will be used. Screw pin bow shackles are convenient for temporary rigging because they can be installed and removed quickly. They are suitable for short-duration tasks where the connection is checked frequently and not exposed to constant movement that could loosen the pin.

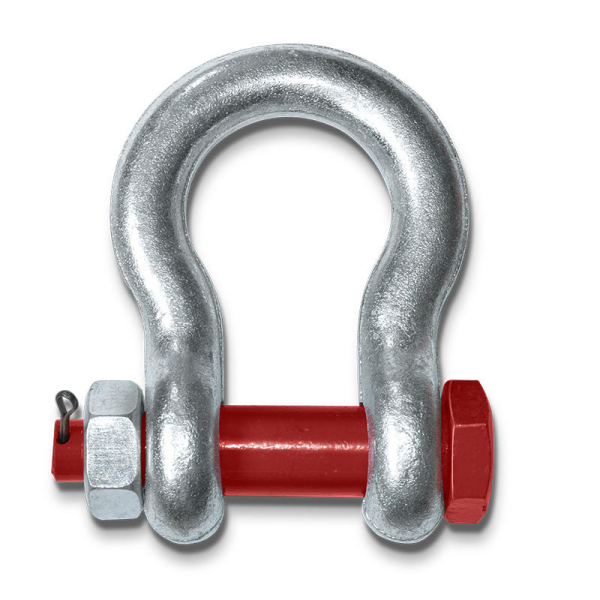

Bolt-type bow shackles are better for long-term connections, overhead lifting, and vibration-prone environments. Their nut and retaining pin provide extra security against accidental loosening. For safety-critical lifting, the pin must always be the correct original pin, not a standard bolt or improvised replacement.

Consider the Working Environment

The working environment can affect shackle strength, surface condition, and service life. Saltwater, moisture, chemicals, abrasive dust, and extreme temperatures may increase corrosion, wear, or material stress. In marine or wet conditions, corrosion-resistant materials or protective coatings may be needed. In harsh environments, inspections should be more frequent, and any shackle showing rust, pitting, thread damage, or deformation should be removed from service before it becomes a lifting hazard.

Inspecting a Bow Shackle Before Rigging

Inspection should happen before every rigging operation, even when the Bow Shackle was used safely the previous time. Lifting hardware can be damaged by overload, side loading, impact, corrosion, or poor storage, and some early warning signs are easy to miss during a rushed setup. A careful visual and hands-on inspection helps confirm that the shackle body, pin, threads, and markings are still suitable for lifting service.

Check the Shackle Body

Start with the bow and ears of the shackle. Look for bending, twisting, stretching, cracks, deep nicks, gouges, corrosion, or unusual wear around the load-bearing areas. The body should keep its original shape, and the pin holes should not appear elongated or distorted. Any visible deformation may suggest that the shackle has previously been overloaded, pulled from an unsafe angle, or exposed to side loading beyond its safe capacity.

Surface damage also matters. A small nick or gouge can become a stress point when the shackle is loaded, especially during repeated lifting cycles. Corrosion and pitting should be treated seriously because they reduce the effective metal section and may hide deeper damage.

Inspect the Pin and Threads

The pin must be the correct original pin for that shackle, not a loose replacement from another piece of hardware. Check whether the pin is straight, clean, and free from cracks, rust, or thread damage. It should turn smoothly and seat properly without wobbling or binding. If the pin is difficult to install, do not hammer it, force it, or modify the shackle to make it fit.

Confirm Safety Markings

A lifting shackle should have readable identification marks. These usually include the Working Load Limit, size, and manufacturer or traceability information. If these markings are missing, worn away, or too unclear to verify, the shackle should not be used for lifting. Guessing the rating by appearance is unsafe because shackles of similar size may have different capacities depending on material, grade, and design.

Remove Unsafe Shackles from Service

Remove the Bow Shackle from service if you find cracks, serious corrosion, heat damage, damaged threads, deformation, missing markings, or signs of unauthorized repair. The same rule applies when the pin is mismatched, the body has been welded or modified, or there is any doubt about the shackle’s integrity.

How to Use a Bow Shackle Safely During a Lift

Using a Bow Shackle safely during a lift depends on how the load is positioned, how the pin is secured, and how the force moves through the rigging assembly. Even a correctly rated shackle can become unsafe if the sling legs are placed in the wrong area, the pin is only partly engaged, or the load is pulled off-center. Before the lift begins, the shackle should be installed so the connection is stable, the load path is clear, and the pin cannot loosen during movement.

Place Sling Legs in the Bow, Not on the Pin

The bow is the rounded load-bearing section designed to provide more room for sling eyes, chain fittings, or other connected hardware. When multiple sling legs are used, they should normally sit in the bow rather than on the pin. This allows the load to spread more naturally across the shackle body and reduces the chance of creating a concentrated bending force on the pin.

Loading several sling eyes directly on the pin can create unsafe stress. The pin is intended to close the shackle and carry load in a controlled way, not to act as a wide support bar for multiple sling legs. If sling eyes crowd the pin, they may pinch, twist, or pull unevenly. This can bend the pin, damage the threads, or reduce the stability of the entire connection.

Secure the Pin Correctly

The pin must be fully installed before any tension is applied. For a screw pin Bow Shackle, tighten the pin until it is fully engaged and seated against the shackle body. The threads should not be partly exposed because partial engagement reduces the strength and reliability of the connection. If the pin does not turn smoothly or does not seat properly, stop and inspect the shackle instead of forcing it.

For a bolt-type Bow Shackle, the bolt should pass completely through both ears, the nut should be tightened correctly, and the cotter pin or retaining device should be installed. This setup is especially important for overhead lifting, longer-duration connections, or environments where vibration and movement could loosen a screw pin.

Never replace the original pin with a standard bolt, rod, or mismatched part. The pin and body are designed as a matched load-bearing set, and an improvised substitute may not have the correct strength, diameter, material, or thread fit.

Keep the Load Centered and Aligned

The load should pull through the intended load path of the Bow Shackle. In most rigging setups, this means keeping the force centered and avoiding a connection that drags the shackle to one side. When the load is off-center, the shackle may rotate, bind, or experience eccentric loading, which can reduce its safe working capacity.

If the shackle is connected to a narrow lifting lug, suitable spacers or washers may help keep the lug centered on the pin. These should be appropriate for the application and should not interfere with the pin seating or the movement of the rigging hardware. The goal is to prevent the connected part from sliding toward one ear of the shackle and creating uneven stress.

Lift Slowly and Avoid Shock Loading

A safe lift begins with controlled tension. Take up slack gradually, then pause long enough to check that the shackle is aligned, the sling legs are seated correctly, and the pin has not shifted. The load should be stable before the lift continues. If anything twists, binds, or pulls sideways, lower the load and correct the setup.

Avoid sudden jerks, dropped loads, rapid hoist movements, or abrupt stops. Shock loading can create forces far above the actual weight of the load, even when the load itself appears to be within the shackle’s Working Load Limit. Gradual lifting gives the rigger time to identify movement problems before the connection is placed under full force.

Managing Side Loading and Connection Angles

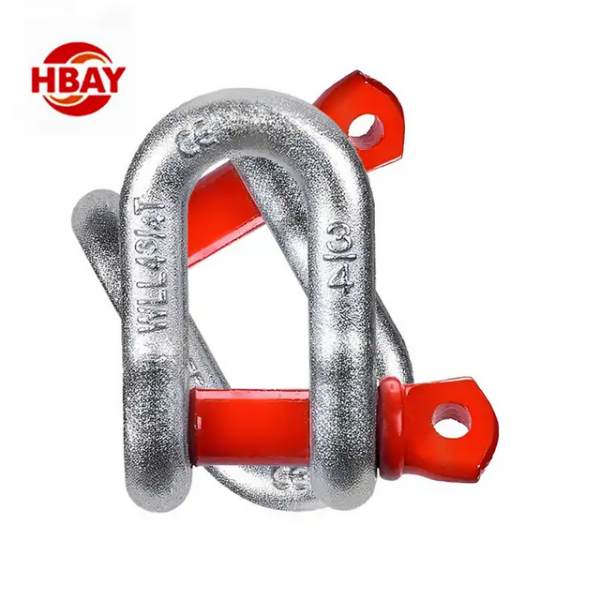

A Bow Shackle is often chosen because its rounded shape can handle wider connection points and more varied load directions than a narrow D shackle. However, this does not mean it can be side loaded without limits. In rigging, the safest condition is still a controlled load path where force travels through the shackle as intended. When the angle changes, the stress pattern changes, and the safe capacity of the shackle may be reduced.

Understand How Side Loading Reduces Capacity

Side loading happens when the force pulls across the shackle at an angle instead of straight through its main load line. Bow Shackles are more tolerant of this condition than D shackles, but their full Working Load Limit usually applies only under proper in-line loading. As the side angle increases, the shackle body and pin experience uneven stress, which can reduce safe lifting capacity.

Control Multi-Leg Sling Angles

Multi-leg sling assemblies can place more force on a Bow Shackle than the load weight alone suggests. As sling legs spread wider apart, tension increases in each leg, and that added force transfers into the shackle. This is why riggers should not select a shackle based only on the weight of the object being lifted.

Before lifting, check the sling arrangement, the included angle between sling legs, and the expected force at the connection point. If the angle is too wide, the assembly may need a larger shackle, a different lifting method, or a revised rigging plan. The goal is to keep the load stable while preventing the shackle from being pulled beyond its safe working range.

Use Safe Shackle-to-Shackle Connections

When two shackles must be connected, the connection method matters. Bow-to-bow or bow-to-pin connections are generally preferred because they allow the load to sit more naturally and reduce concentrated stress. Pin-to-pin connections should be avoided because the pins can press against each other in an unstable way, creating point loading, rotation, and possible pin damage during the lift.

Common Bow Shackle Mistakes to Avoid

Even when the correct Bow Shackle is available, unsafe habits can turn a simple rigging connection into a serious risk. Most shackle-related failures are not caused by the shape of the hardware itself, but by poor selection, incorrect pin use, missed inspection signs, or assuming the shackle can handle any load direction without adjustment.

Exceeding the Working Load Limit

Never choose a Bow Shackle by appearance, size, or weight in the hand. Two shackles that look similar may have different capacities depending on material, grade, design, and manufacturing standard. The Working Load Limit must be checked before every lift and must be suitable for the actual rigging force, not just the visible size of the shackle.

Key risks of exceeding the WLL include:

● Permanent stretching or deformation of the shackle body

● Pin bending or thread damage

● Sudden connection failure during lifting

● Hidden damage that makes the shackle unsafe for later use

Using the Wrong or Substitute Pin

The pin and body are designed as a matched load-bearing system. A standard bolt, threaded rod, or pin from another shackle may not have the correct diameter, strength, thread engagement, or heat treatment. Even if it appears to fit, it may not support the rated load safely. If the original pin is missing or damaged, the shackle should not be used unless a correct approved replacement is available.

Ignoring Damage from Previous Use

A Bow Shackle may look usable after a lift, but previous overload, side loading, shock loading, corrosion, or poor storage can leave visible or hidden damage. Cracks, bending, heavy rust, worn threads, heat marks, or unclear markings are warning signs. If there is any doubt about the shackle’s condition, remove it from service before the next rigging operation.

Conclusion

Using a Bow Shackle safely depends on correct selection, careful inspection, secure pin installation, controlled lifting, and proper load alignment. Although it is a small component, it plays a major role in stable rigging. Hebei Anyue Metal Manufacturing Co., Ltd. provides reliable metal hardware designed to support safer, stronger, and more efficient lifting operations.

FAQ

Q: How do you inspect a Bow Shackle before rigging?

A: Check the Bow Shackle for deformation, cracks, corrosion, damaged threads, and readable WLL markings.

Q: Can a Bow Shackle be side loaded?

A: A Bow Shackle can handle limited angled loading, but side loading reduces its rated capacity.

Q: What pin type is safest for overhead lifting?

A: Bolt-type pins are safer for overhead or long-term lifting because they resist loosening.

Q: When should a Bow Shackle be removed from service?

A: Remove a Bow Shackle if it has damage, missing markings, heat exposure, or questionable integrity.
