How To Read Markings on A Bow Shackle

Introduction

Accurately reading the markings on a bow shackle is essential for safe and efficient lifting operations. Confusion over WLL, material grade, or pin type can lead to misjudged loads, improper rigging, and increased risk of failure. Understanding manufacturer marks and trace codes ensures each shackle meets safety standards and can be traced to its production batch. Readers will learn how to interpret WLL, identify the correct grade (S, T, or M), select appropriate screw pin or safety pin types, and apply these insights to multi-leg rigging setups without compromising safety.

Ensuring Safety Before Every Lift

Verifying WLL and Load Compatibility

The Working Load Limit (WLL) is the maximum weight a bow shackle is engineered to handle safely under normal operating conditions. When planning a lift, calculating the effective load is essential, especially in multi-leg sling arrangements. For instance, a two-leg sling at a 60° included angle distributes load unevenly, meaning each leg carries more than half the total weight. Misjudging this can inadvertently exceed the WLL, compromising the shackle’s structural integrity.

Side-loading further reduces effective WLL, sometimes by 50% or more depending on the angle. Always ensure the tension aligns squarely with the shackle bow; the pin must remain unloaded in double shear to maintain rated capacity.

Example Table: Shackle Sizes vs WLL (Grade S/T/M)

This comparison highlights the importance of selecting the right shackle grade relative to both the nominal load and the rigging configuration. Adjusting for sling angle and load direction ensures the WLL is not exceeded and prevents catastrophic failures.

Reading Manufacturer Marks and Trace Codes

Manufacturer markings provide critical verification of authenticity and compliance. Every compliant bow shackle should display the Manufacturer Mark, WLL, material grade, and a batch or trace code. These identifiers allow tracing back to the production batch, heat treatment records, and quality tests. Regulatory adherence, such as AS 3776 in Australia, mandates that unmarked or illegible shackles must be removed from service.

Pro-Tip: Quick Validation Steps

● Verify the brand against known manufacturers and certified distributors.

● Check batch codes for traceability in inspection logs.

● Confirm material grade matches the intended load and environment (e.g., marine vs industrial).

Neglecting these checks can introduce counterfeit or substandard hardware into critical lifting assemblies, elevating safety risks and regulatory liability.

Pin Inspection and Type Identification

Correct pin selection is essential to maintain effective WLL. Screw Pin shackles offer rapid assembly but can unscrew under vibration if not properly moused. Safety (Bolt) Pins remain locked via a nut and cotter, ensuring permanent or semi-permanent installations withstand dynamic or rotational loads.

Inspect pins visually for bends, thread damage, or improper seating before each lift. A partially threaded screw pin or damaged bolt reduces the load-carrying capacity significantly. Proper pin engagement guarantees the shackle performs as designed, preventing the load from transferring incorrectly to the pin, which could lower the effective WLL by over 50%.

Inspection Checklist:

● Confirm full threading and smooth rotation of screw pins.

● Verify cotter pins or mousing wire is correctly installed.

● Look for corrosion or galling, particularly on stainless steel pins in marine environments.

Following these steps preserves operational integrity, prolongs shackle life, and ensures safety across diverse rigging applications.

Understanding Material and Grade Indicators

Steel Grades and Their Applications

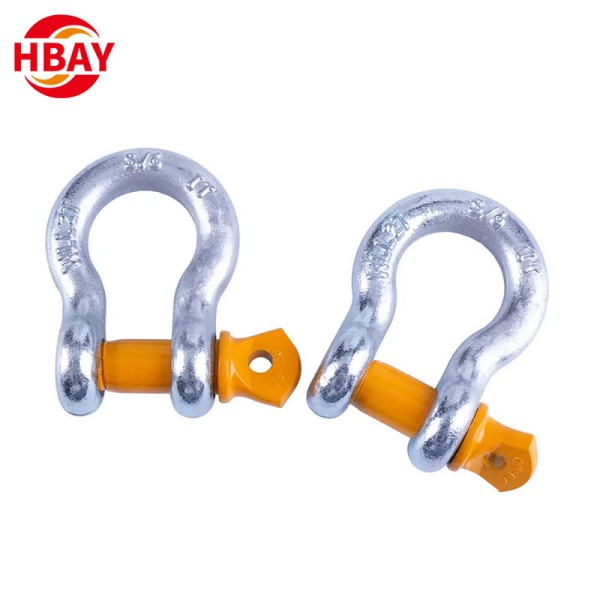

Bow shackles are available in different steel grades, each engineered for specific load capacities and chain system compatibility. Grade S is commonly produced from carbon or standard alloy steel and is suitable for general lifting tasks without high-strength chain systems. Its pin is typically color-coded blue to identify the grade quickly. Grade T is high-tensile alloy steel designed to match Grade 80 chain systems, offering a higher WLL relative to its body size. A yellow pin identifies this grade, ensuring compatibility and avoiding weak links in multi-leg slings. Grade M or Grade 100 alloy delivers the highest WLL-to-weight ratio, intended for the strongest chain systems. A purple pin visually distinguishes it from lower grades.

Selecting a shackle grade must consider both the load and the chain system to maintain structural integrity and comply with safety standards. Using a lower-grade shackle with a higher-grade chain significantly reduces the effective WLL.

Corrosion Resistance and Environmental Suitability

Material choice determines how a shackle performs in specific environments. Galvanised steel provides surface protection via zinc coating, making it suitable for outdoor industrial applications but less reliable in continuous saltwater or highly chemical environments. 316 stainless steel is marine-grade, offering excellent resistance to corrosion, acids, and saltwater exposure. Stainless pins, however, are prone to galling if assembled dry or under high torque. Applying a light anti-seize compound on threads mitigates this risk while preserving the shackle’s WLL and service life.

Detecting Heat or Wear Damage

Shackles exposed to excessive heat or dynamic loads may experience Heat Damage, Elongation, or Distortion, which compromises mechanical properties even if visual cracks are absent. Surface discoloration in blue, straw, or bronze hues signals possible tempering changes that reduce yield strength. Regular inspection of load-bearing surfaces ensures that Wear >10% of the original cross-section is detected promptly. Signs of Galling on stainless pins require immediate attention and lubrication adjustments. A visual checklist should include crown thickness, pin diameter, and ear-to-pin fit, supported by reference dimensions from manufacturer specifications. Documenting these measurements helps prevent gradual fatigue failures and maintains compliance with inspection criteria.

Interpreting Bow and Pin Geometry

Bow Shape and Load Distribution

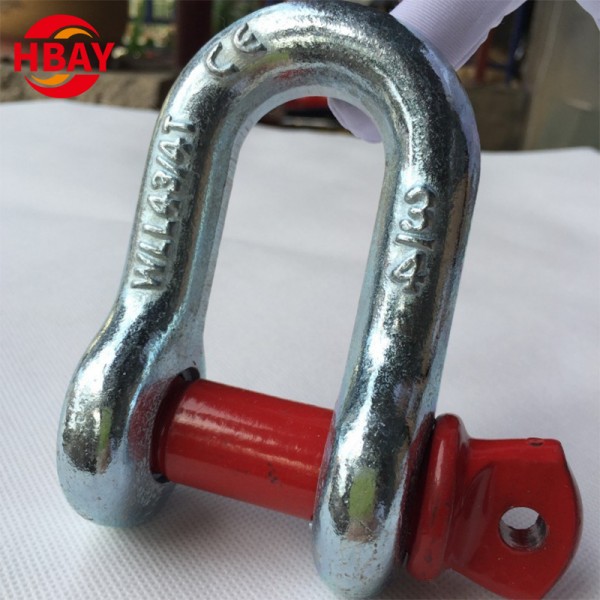

The geometry of a bow shackle directly impacts how loads are transmitted. A rounded Bow allows multiple sling legs or fittings to sit side by side without interference, improving tolerance for angular forces. In contrast, a D-shackle concentrates the load along a narrow Crown, making it ideal for single in-line attachments but highly sensitive to Side-Loading. Misapplied D-shackles in multi-leg arrangements can produce stress concentrations that exceed the WLL and cause premature deformation.

Throat Opening and Dimensional Verification

Measuring the Throat Opening and overall bow dimensions is critical for detecting overload or permanent deformation. Use calipers to compare the current opening against manufacturer specifications. An increase beyond the permissible tolerance indicates plastic deformation and necessitates immediate removal from service. Check for Elongation or asymmetry across the Ears and crown, as these are early indicators of fatigue. Dimensional inspections should be part of routine pre-use checks, ideally every six months or after heavy-duty operations.

Pro-Tip: Always document measurements and note any deviations. Overlooking minor expansions can progressively compromise load capacity without visible cracks, especially in high-cycling or vibration-prone applications.

Correct Pin Placement in Rigging

Proper Pin Engagement ensures the shackle’s load is carried by the bow rather than the pin. When using a Screw Pin, fully thread the pin, then align the mousing hole for wire installation to prevent rotation. For Safety (Bolt) Pins, ensure the nut is tightened and the Cotter Pin is spread correctly. Incorrect placement or partially engaged pins can reduce effective WLL by 50% or more.

Avoiding Common Misuse and Failure Modes

5 Common Mistakes That Reduce WLL

Selecting the wrong pin type is a frequent contributor to reduced WLL. A Screw Pin left unmoused can back out under vibration, while a Safety Pin improperly secured with a loose cotter compromises load integrity. Side-loading a shackle, regardless of grade, concentrates stress on the crown and ears, which can exceed design limits. Over-tightening screw pins can damage threads and reduce effective shear capacity. Finally, using a shackle with a Grade Mismatch or worn markings impairs compatibility with chains and slings, creating hidden weak points in lifting assemblies.

Overload and Shock Incident Handling

Shackles exposed to sudden shocks or overloads must be treated with extreme caution. Overload Indicators, such as visible bending, elongation, or crown spreading, signal that the internal safety factor has been compromised. Even if no cracks are visible, Plastic Deformation reduces WLL and can propagate under subsequent loads. Always prioritize human safety over hardware cost; equipment that fails any visual or dimensional check should be retired immediately. Conducting post-incident inspections with calipers or gauges ensures that subtle distortions are detected before re-use.

Regulatory and Standards Compliance

Compliance with standards like AS 3776, ASME B30.26, and RR-C-271 is non-negotiable for overhead lifting. These regulations define requirements for material properties, proof load testing, WLL marking, and periodic inspection. Maintaining detailed inspection records allows supervisors to demonstrate adherence during workplace audits and prevents unsafe shackles from entering service. A quick compliance checklist should include verification of markings, dimensional integrity, pin security, and environmental suitability. Regular training ensures that riggers understand how regulatory requirements intersect with practical rigging decisions.

Conclusion

Properly interpreting the markings on a bow shackle ensures safe load handling, correct pin selection, and reliable performance in multi-leg rigging applications. By verifying WLL, material grade, and manufacturer traceability, operators can prevent overloading and identify potential wear or deformation before use.

Products from Hebei Anyue Metal Manufacturing Co., Ltd. provide clearly marked shackles with standardized grades and robust construction, helping users maintain compliance, conduct efficient inspections, and execute lifts with confidence. Following inspection protocols, using mousing or cotter pins appropriately, and documenting checks supports both safety and operational consistency.

FAQ

Q: What does WLL mean on a bow shackle?

A: WLL stands for Working Load Limit, indicating the maximum weight the bow shackle can safely handle under normal conditions without risk of failure.

Q: How do I identify the grade of a bow shackle?

A: The grade is often stamped on the shackle and color-coded on the pin. Common grades are S, T, and M, corresponding to specific steel strength and chain compatibility.

Q: Can a bow shackle be used for side-loading?

A: No, bow shackles are rated for in-line loading. Side-loading can reduce the effective load capacity by up to 50% and increase stress on the bow and pin.

Q: How can I verify the manufacturer and traceability of a bow shackle?

A: Check the stamped manufacturer mark, batch number, or trace code. These details confirm authenticity and link the shackle to its production records and material testing.

Q: When should a bow shackle be retired?

A: Retire a shackle if it shows cracks, elongation, excessive wear over 10%, corrosion, or illegible markings. Any sign of overload or deformation requires removal from service.

Q: What is the difference between a screw pin and a safety pin shackle?

A: A screw pin can be quickly installed but may unscrew under vibration if not moused. A safety pin uses a nut and cotter, providing more secure, permanent connections.
