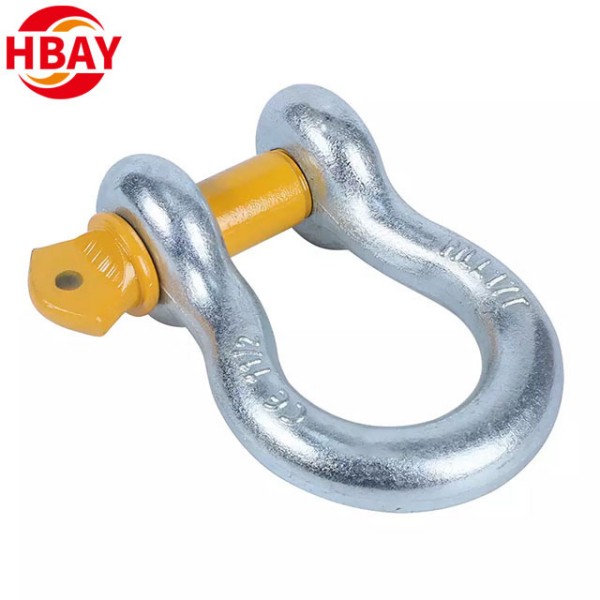

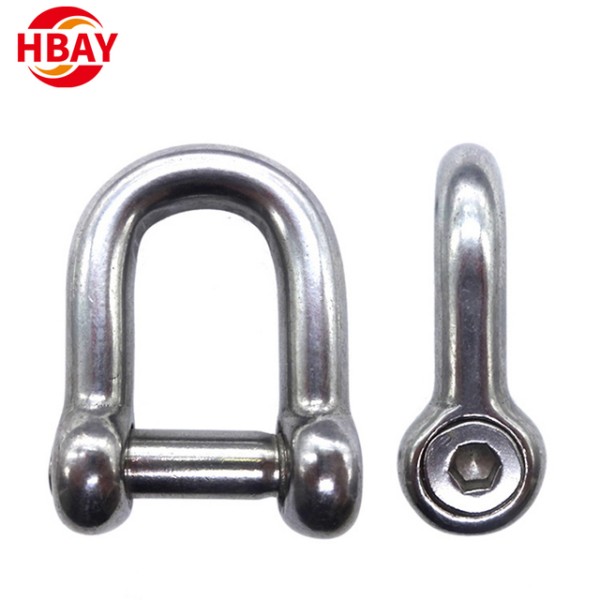

How To Inspect A Bow Shackle Before Use

Introduction

During lifting operations, even small wear or damage to a bow shackle can compromise load security and create serious safety risks. Inspectors often face challenges identifying subtle deformation, corrosion, or thread damage that isn’t immediately visible. Understanding how to evaluate the shackle’s body, pin, and overall integrity ensures each lift remains controlled and within safe limits.

Preparing for a Thorough Bow Shackle Inspection

Gather the Right Tools and Safety Equipment

Before inspecting a bow shackle, assembling precise measurement tools ensures accurate assessment of dimensional verification. Essential instruments include calipers for pin diameter and bow thickness, thread gauges to check pin threads, and visual magnifiers to detect fine cracks or surface defects. Personal protective equipment (PPE), such as cut-resistant gloves and safety glasses, safeguards against accidental injuries during handling. Inspectors should familiarize themselves with traceability codes to confirm shackle origin and verify compliance with ASME B30.26 and OSHA 1910.184 guidelines. A systematic approach—laying out all tools and safety gear in advance—reduces the risk of overlooking critical inspection points.

Understand Manufacturer Specifications and WLL

Accurate inspection begins with verifying the shackle’s Working Load Limit (WLL) and manufacturer-specific markings. Check the stamped WLL on the bow and match it to the original pin type. Using the correct pin type—screw pin, bolt-type, or safety pin—is crucial for maintaining rated load capacity.

Comparing pin options ensures proper load distribution and avoids unintentional disengagement. Always cross-reference the manufacturer’s datasheet to confirm material grade, tolerances, and certified testing standards. This practice prevents misjudging structural integrity and supports long-term reliability.

Environmental Factors to Consider Before Inspection

Environmental conditions significantly influence inspection rigor. Exposure to corrosion in marine or chemically active industrial settings can reduce cross-sectional thickness. Extreme temperatures can make steel brittle or compromise alloy strength, while high humidity accelerates surface oxidation. Adjust the inspection frequency and depth according to operational context: high-use or corrosive environments require more frequent visual and dimensional checks. Pro-Tip: document inspection conditions, noting ambient temperature, chemical presence, and any observable surface degradation to inform maintenance schedules and prevent overlooked deterioration.

Visual and Physical Inspection of the Shackle Body

Detect Cracks, Gouges, and Surface Defects

Begin by running a careful visual scan along the bow crown, pin holes, and ear transitions, areas most prone to stress concentration. Any sharp nicks, gouges, or visible cracks must be flagged, as these defects compromise load paths and can propagate under stress. A practical checklist includes: crown of the bow, inside edges of pin holes, transitions to ears, and bearing contact points. Use magnification for subtle fissures, particularly in high-strength alloy shackles. Minor surface scratches aligned with load direction may be tolerable, but crosswise damage significantly elevates failure risk. Documenting defects immediately helps maintain traceability and supports compliance with ASME B30.26 standards.

Identify Deformation or Overload Signs

Measure bow thickness, jaw spacing, and pin diameter against manufacturer specifications to detect deformation. Bending, twisting, elongation, or jaw spreading indicate past overloading and potential plastic deformation. Field measurements compared with original dimensions can reveal structural compromises before catastrophic failure occurs.

Regularly updated measurement tables provide quantitative guidance for inspectors, reducing subjectivity in determining whether a shackle remains serviceable. Pro-Tip: compare suspect shackles to a new unit of the same model to detect subtle asymmetry that may escape measurement tools.

Assess Heat Damage and Welding Marks

Heat exposure can reverse original tempering, weakening metal without obvious mechanical distortion. Inspect for temper colors—blue, straw, or bronze tints—especially near high-stress zones. Weld spatter or evidence of hot work attachment points must be treated as automatic disqualifiers. While surface discoloration alone is not always catastrophic, it signals that underlying heat damage may have reduced tensile strength and fatigue resistance. Pro-Tip: suspect areas should be evaluated using magnetic particle or dye penetrant testing when operational load is critical. Record environmental history to anticipate cumulative heat effects across repeated exposure cycles.

Pin Inspection and Engagement Verification

Check for Bending, Wear, and Thread Damage

Begin by visually inspecting the pin for any bending, cracks, or surface wear. Running the pin by hand through the shackle threads tests pin engagement and detects irregularities caused by corrosion or deformation. Damaged threads compromise secure attachment and increase the risk of accidental disengagement. Never substitute a generic bolt or non-original pin; improper pins alter load paths and can dramatically reduce the rated capacity. Inspectors should pay particular attention to bolt-type pins, ensuring nuts and cotter pins are fully seated and free from stripping. Using calibrated gauges to measure thread pitch and diameter ensures precise thread integrity, which is critical in high-stress lifting operations.

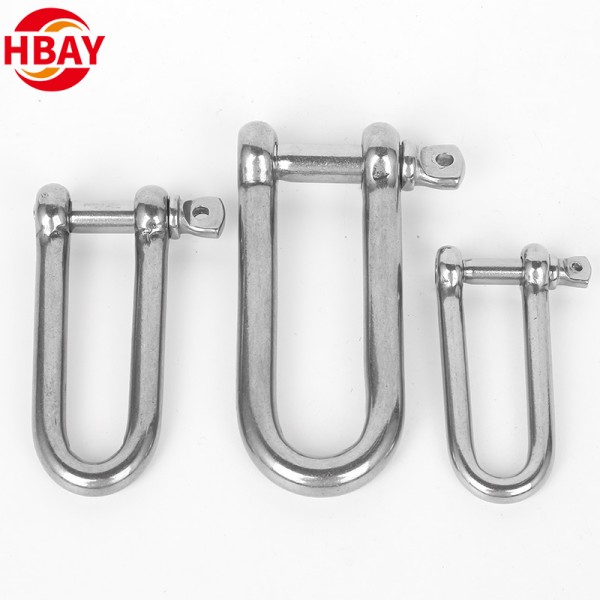

Confirm Correct Pin Type and Proper Fit

Selecting the appropriate pin type is essential for both operational efficiency and safety. Screw pins are ideal for temporary lifts due to quick installation, while bolt-type pins provide maximum security for semi-permanent or permanent applications. Safety pins with locking mechanisms are recommended in high-risk environments where accidental loosening could lead to load drops.

Using only manufacturer-approved pins guarantees that the pin material, diameter, and hardness match the shackle’s design parameters. Cross-referencing with the manufacturer’s datasheet prevents the risk of hidden incompatibilities that could compromise the load-bearing capacity.

Test Load Alignment and Secure Seating

Correct load alignment is critical for maintaining the shackle’s rated WLL. Position the load along the bow’s central axis, avoiding side loading which can reduce the effective working load by up to 50%. Multi-leg slings should rest fully in the bow rather than on the pin to evenly distribute stress across the shackle body. Pro-Tip: when the lifting angle deviates from the shackle axis, reduce the WLL proportionally to maintain a safety margin. Ensure the pin is fully seated, free of wobble, and threads smoothly, confirming that the engagement is complete and the load will remain stable throughout the lift.

Maintenance, Documentation, and Replacement Criteria

H3: Cleaning, Lubrication, and Storage Best Practices

Routine upkeep is essential to extend bow shackle life and prevent corrosion. After each use, remove dirt, grit, or rust from the bow and pin using a wire brush or mild solvent. Apply a light, compatible lubrication to threads to maintain smooth operation and prevent galling. Store shackles in a dry, well-ventilated area, away from chemical vapors or seawater exposure. Pro-Tip: implement seasonal maintenance, inspecting pins and threads for micro-pitting during periods of heavy use or harsh environmental exposure, to anticipate wear before it affects safety.

When to Remove a Shackle from Service

A shackle must be withdrawn immediately if wear exceeds 10% of original dimensions, if there are visible cracks, heat discoloration, illegible markings, or substituted pins. Dimensional checks should verify bow thickness, pin diameter, and jaw spacing against manufacturer specifications.

Following these criteria ensures consistent compliance and reduces the risk of catastrophic failure during lifting operations. Incorporating a quantitative measurement approach supports objective decision-making, avoiding reliance solely on visual judgment.

Documenting Inspections and Safety Compliance

Inspection logs should record the date, inspector, observed defects, and environmental conditions. Compliance with ASME B30.26 and OSHA 1910.184 ensures that inspection procedures are traceable and meet regulatory requirements. Use traceability codes to link each shackle to production records, heat treatment, and test certifications. Pro-Tip: digital record-keeping enhances fleet management, allowing quick audits and historical trend analysis to predict replacement cycles before wear compromises load integrity. Maintaining organized documentation not only supports safety but strengthens operational credibility in regulated industrial settings.

Common Mistakes and Expert Tips for Risk-Free Use

Avoid Side Loading and Improper Connections

Align the bow shackle load along the central axis to prevent side loading, which can reduce the effective WLL by up to 50%. When connecting multiple slings, always use bow-to-bow or bow-to-pin configurations; avoid pin-to-pin connections that create point loads and increase shock loading risk. Pro-Tip: consult WLL reduction charts for angled loads to maintain safety margins during multi-leg lifts.

Prevent Pin Misuse and Unauthorized Modifications

Never weld, re-machine, or substitute pins. Using anything other than manufacturer-approved pins compromises structural integrity and can lead to plastic deformation under load. Ensure all pin threads, nuts, and cotter pins are fully engaged and free from wear. Replacing a pin with a non-certified alternative invalidates testing compliance and can result in catastrophic failure.

Establish a Pre-Use Checklist Routine

Integrate all inspection steps into a recurring pre-use checklist to catch defects before every lift. Include visual checks for cracks, corrosion, and deformation, verify pin engagement, and confirm proper load alignment. A printed or digital field checklist improves consistency, reduces human error, and allows operators to document compliance with ASME B30.26 and OSHA 1910.184 standards. Pro-Tip: color-code critical checks such as bow integrity, pin type, and multi-leg sling placement for rapid field reference.

Conclusion

Ensuring the safety and reliability of a bow shackle begins with systematic inspection of its body, pin, and alignment under expected loads. Regular checks for wear, corrosion, deformation, and proper pin engagement help prevent failures and maintain operational consistency.

Products from Hebei Anyue Metal Manufacturing Co., Ltd. provide clearly marked, certified shackles designed to support these inspection practices. Integrating these tools into routine lifting operations allows teams to maintain compliance, reduce downtime, and extend equipment lifespan while keeping each lift controlled and safe.

FAQ

Q: How often should a bow shackle be inspected?

A: A bow shackle should be visually inspected before every use. For harsh or frequent lifting conditions, periodic detailed inspections should also be performed.

Q: What signs indicate a bow shackle is unsafe to use?

A: Look for visible cracks, bending, corrosion, excessive wear, illegible markings, or damaged threads. Any of these require removing the shackle from service immediately.

Q: How can I check if the pin of a bow shackle is secure?

A: Unscrew the pin by hand to ensure smooth threading, confirm it seats flush in the shackle, and verify that any cotter pin or locking mechanism is properly installed.

Q: What is the impact of side loading on a bow shackle?

A: Side loading can reduce the working load limit significantly, potentially by up to 50%, increasing the risk of failure even if the shackle appears undamaged.

Q: Can bow shackles be used in marine or corrosive environments?

A: Yes, but select corrosion-resistant materials such as stainless steel and inspect regularly for rust, pitting, or surface degradation to maintain safe operation.

Q: How do I measure wear on a bow shackle?

A: Compare key dimensions like bow thickness and pin diameter against manufacturer specifications. Wear exceeding 10% typically requires the shackle to be retired.
