How To Choose The Right Bow Shackle for Marine Use in 2026

A small connector can decide whether marine hardware holds or fails. Choosing the right Bow Shackle matters because saltwater, vibration, changing load angles, poor fit, and hidden wear all affect safety. In this guide, you will learn how to select a marine bow shackle for stronger anchoring, safer rigging, and longer service life.



Why Marine Use Requires a Carefully Selected Bow Shackle

Marine Loads Are Dynamic and Multi-Directional

Marine hardware does not work in a calm, fixed-load environment. A boat at anchor may shift with wind, swing with tide, pull against current, and experience sudden force changes when waves lift or drop the hull. Mooring lines and rigging assemblies can also change angle as the vessel moves, which means the connection point may be loaded from more than one direction during normal use.

This is where a Bow Shackle has a clear advantage over a narrower D shackle. Its rounded body gives more room for movement and is better suited to connections where the load path is not perfectly straight. However, that does not mean any bow shackle is automatically safe. It still needs to be selected according to real working conditions, not just a clean static load number on paper.

Saltwater Exposure Increases Corrosion Risk

Saltwater, coastal air, and moisture all accelerate the deterioration of marine hardware. Rust, pitting, coating loss, and thread damage can reduce strength long before a shackle looks completely unusable. General-purpose rigging hardware may perform well on land but fail faster near seawater if the material or coating is not suitable.

For marine use, corrosion resistance is not only about appearance. A cleaner, less corroded shackle is easier to inspect, less likely to seize at the pin, and more dependable in long-term anchor, mooring, or deck hardware applications.

The Bow Shackle Should Not Become the Weak Link

A marine connection is only as reliable as its weakest component. Even a strong chain or anchor can be compromised by an undersized shackle, a loose screw pin, unclear load rating, low-grade material, or poor fit between the pin and chain link.

Fitment matters because a shackle that is too tight, too loose, or badly aligned can concentrate stress in one area instead of distributing load properly. For this reason, buyers should evaluate the shackle as part of the full system: anchor, chain, pin, bow width, working load limit, and exposure conditions.



Choose the Best Bow Shackle Material for Saltwater Conditions

316 Stainless Steel for Corrosion Resistance

For saltwater and coastal exposure, 316 stainless steel is often the preferred material for a Bow Shackle because it offers strong resistance to chloride-related corrosion. Marine environments expose hardware to salt spray, humidity, and standing moisture, all of which can attack weaker materials over time. The added corrosion resistance of 316 stainless steel helps reduce pitting, surface staining, and thread seizure, especially when the shackle is used in exposed locations.

This makes 316 stainless steel a practical choice for yacht rigging, deck hardware, visible fittings, and long-term marine connections where appearance, low maintenance, and dependable performance matter. It is especially useful when the shackle may remain installed for extended periods or when frequent replacement would be inconvenient. However, stainless steel should still be inspected regularly because salt deposits, crevices, and poor drainage can still create localized corrosion risks.

Hot-Dipped Galvanized Steel for Anchor Chains and Mooring

Hot-dipped galvanized steel is widely used for anchor chains, mooring systems, and other working marine connections because it combines strength, availability, and cost efficiency. Its protection comes from a zinc coating that shields the base steel. In harsh conditions, the zinc layer sacrifices itself before the underlying steel begins to rust, which gives the hardware a useful protective barrier.

One practical benefit of galvanized steel is that wear is often easier to see. When the zinc coating becomes thin, scratched, or rusty, it signals that the shackle should be checked closely and possibly replaced before the base metal loses meaningful strength.

Alloy Steel Only for High-Strength Applications

Alloy steel may be suitable when a marine connection needs a higher load capacity than standard materials can provide. This can apply to heavy-duty lifting, commercial marine operations, or specialized rigging where strength is the main requirement. Even so, alloy steel should not be chosen simply because “stronger” sounds safer. In saltwater air, unprotected or poorly coated alloy steel can corrode quickly, which may reduce its useful life and reliability.

The key is to balance load capacity with environmental durability. A high-strength shackle that corrodes rapidly may be a worse choice than a slightly lower-rated shackle made from a material better suited to marine exposure. When alloy steel is used, its coating quality, inspection schedule, and compatibility with nearby hardware become especially important.

Avoid Galvanic Corrosion from Material Mismatch

Material compatibility is another important part of marine shackle selection. When dissimilar metals touch in saltwater, the electrolyte effect can speed up corrosion on one of the metals. This is known as galvanic corrosion, and it is especially relevant around anchors, chains, pins, and fittings that may stay wet for long periods.

Where practical, match the shackle material to the chain, anchor connection, or nearby fitting. If mixed metals cannot be avoided, the connection should be inspected more often for discoloration, pitting, coating breakdown, or unusual wear around contact points.



Match Bow Shackle Load Rating, Size, and Fitment Correctly

Use WLL as the Starting Point

The first number to check on any Bow Shackle is its Working Load Limit, usually marked as WLL. This is the maximum load the shackle is designed to carry during normal use, not the point where it breaks. In marine applications, WLL matters because anchor systems, mooring lines, and rigging hardware are exposed to repeated movement rather than one simple straight pull.

A bow shackle should never be selected by appearance alone. A polished finish, heavy feel, or larger-looking body does not automatically mean the shackle is suitable for the load. The WLL should be clearly marked on the shackle body, and that rating should exceed the expected marine working load. If the shackle has no readable WLL, size, or traceability marking, it should not be treated as dependable load-bearing hardware.

Allow for Safety Margin in Real Marine Conditions

Marine force can rise quickly. A calm anchorage may become rough, a boat may surge against the rode, or a mooring system may experience sudden loading from current and wind shifts. Because of this, the selected shackle should include a suitable safety margin instead of being matched exactly to the estimated load.

Breaking strength and WLL are often confused, but they are not the same. Breaking strength describes the approximate force at which failure may occur under test conditions, while WLL is the rated working capacity for normal service. For marine use, the safer approach is to choose based on WLL and leave room for dynamic load changes.

Confirm Chain, Pin, and Anchor Compatibility

A correctly rated bow shackle can still perform poorly if it does not fit the rest of the system. The pin diameter must pass through the chain link properly without forcing the connection or leaving excessive looseness. If the pin is too large, the user may be tempted to install it incorrectly. If it is too small, the load may concentrate on a narrow contact area and increase wear.

The bow opening and jaw clearance also need to match the anchor eye, swivel, chain end, or mooring fitting. In many marine setups, users choose a bow shackle slightly larger than the chain size so the shackle does not become the weakest link. That practice can be useful, but it should never replace an actual fitment check. The shackle must seat correctly, close fully, and allow the load to sit where the manufacturer intended.

Before installation, check these fitment points:

● The pin passes through the chain link without binding.

● The bow has enough internal width for the anchor or fitting.

● The pin threads engage fully and seat cleanly.

● The connected parts do not twist the shackle out of alignment.

● The shackle can move enough to follow the load without jamming.

Reduce Side Loading and Misalignment

Bow shackles are better than D shackles when the load angle may shift, but they are not unlimited. If the connection is twisted, pulled hard to one side, or seated unevenly, the effective strength of the shackle can be reduced. This is especially important in anchor and mooring systems, where the load direction may change as the vessel swings.

After installation, the load path should be checked under realistic alignment, not only while the hardware is loose in hand. The pin should sit correctly, the bow should carry the load evenly, and nearby fittings should not force the shackle into a sharp angle. A well-chosen bow shackle works as part of the complete marine connection, with the chain, anchor, pin, and attachment point all fitting together cleanly.



Select the Right Pin Type for Marine Bow Shackle Security

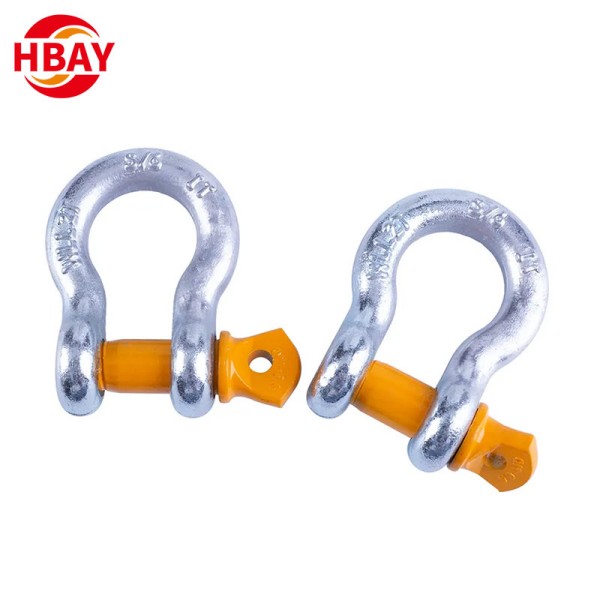

Screw Pin Bow Shackles for Temporary Use

Screw pin bow shackles are popular in marine work because they are simple to install, remove, and reposition. The threaded pin can usually be opened without complex tools, making this style useful when a connection needs to be adjusted during rigging, anchoring, or general deck work. For short-term setups, temporary rigging, or hardware that is checked frequently, a screw pin Bow Shackle can be a practical choice.

The main limitation is security under movement. Boats create constant vibration through wave motion, engine operation, towing loads, and shifting rigging angles. If a screw pin is installed and then left unsecured, repeated motion can slowly back the pin out of the shackle body. For this reason, screw pin shackles should be treated as convenient hardware, not automatically as permanent unattended connections.

Secure Screw Pins in Vibrating Marine Conditions

In marine environments, pin security is just as important as shackle strength. A shackle may have the right material and Working Load Limit, but if the pin loosens, the entire connection can fail. Mousing is a common method used to prevent a screw pin from turning loose. This usually involves passing wire through the pin hole and securing it to the shackle body so the pin cannot rotate freely.

Stainless steel wire or another marine-suitable wire is usually preferred because it resists corrosion better in saltwater exposure. Whatever method is used, the pin should still be inspected after heavy weather, towing, long passages, or repeated load cycles.

Bolt-Type Bow Shackles for Long-Term Connections

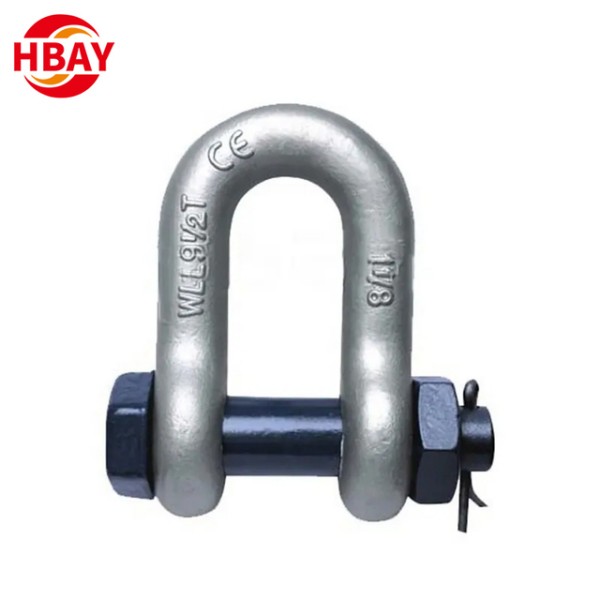

Bolt-type bow shackles use a pin secured with a nut and cotter pin. This design takes longer to install than a screw pin, but it provides a much more secure connection where vibration or long service periods are expected. For mooring systems, anchor-to-chain connections, and semi-permanent marine installations, bolt-type shackles are often the safer choice.

The nut-and-cotter-pin structure helps prevent accidental loosening because the pin is not relying only on thread friction. This makes it better suited to connections that may remain in place for weeks, months, or a full boating season.

Captive Pin Options for Frequently Handled Deck Hardware

Captive pin shackles are useful when the main concern is losing the pin during handling. On a moving boat, a dropped pin can easily disappear overboard or fall into an inaccessible area. This makes captive pin options helpful for deck fittings, blocks, halyards, and other frequently adjusted rigging points.

However, convenience should not override the core selection criteria. A captive pin shackle still needs the right material, WLL, size, and fitment for the application.



Check Standards, Markings, and Inspection Condition Before Use

Look for Clear Identification Markings

Before using any Bow Shackle in a marine connection, check the markings on the body and pin area. These markings help confirm that the shackle is rated, traceable, and suitable for load-bearing work. A marine shackle should not be chosen only by appearance because polished, heavy, or well-finished hardware can still be unsuitable if its rating is unclear. Unmarked shackles should be avoided for anchor, mooring, lifting, or rigging applications because there is no reliable way to verify their working capacity or manufacturing quality.

Choose Rated and Properly Manufactured Hardware

For critical marine use, choose shackles made to recognized rigging hardware standards such as ASME B30.26 or EN 13889 where applicable. These standards help support consistent manufacturing, rated performance, and traceability, which are especially important when hardware is exposed to saltwater, vibration, and dynamic loading.

Decorative, cast, or non-rated shackles should not be used in structural marine connections. Some products may look similar to working shackles, but appearance does not prove load capacity. For anchors, moorings, and rigging systems, rated forged hardware is generally the safer choice because it is designed for predictable strength and real load-bearing service.

Inspect for Wear, Corrosion, and Deformation

Inspection should happen before installation and during regular marine service. Look closely for rust, pitting, bent pins, damaged threads, distorted bow shape, cracks, and worn bearing surfaces. These problems can reduce strength, prevent proper pin seating, or create stress points under load.

Pay special attention to areas where the shackle contacts chain, anchor hardware, or other fittings, because those surfaces often wear first. If the shackle shows significant material loss, visible deformation, deep corrosion, or a pin that no longer threads and seats properly, it should be replaced rather than reused.



Conclusion

Choosing the right Bow Shackle in 2026 means looking at the full marine connection system, including load conditions, saltwater exposure, WLL, size, fitment, pin security, and inspection needs. A well-matched shackle is not simply the strongest option, but the one that works safely with the anchor, chain, and surrounding hardware. For marine buyers comparing dependable metal fittings, Hebei Anyue Metal Manufacturing Co., Ltd. is one manufacturer to consider when sourcing bow shackles built for practical strength, stable connections, and long-term use in demanding environments.



FAQ

Q: What is the best Bow Shackle material for marine use?

A: A Bow Shackle made from 316 stainless steel suits saltwater exposure, while galvanized steel is common for anchor chains.

Q: How do I size a Bow Shackle for anchor chain?

A: Match the Bow Shackle WLL, pin diameter, and bow clearance to the chain, anchor, and expected marine load.

Q: Which pin type is safest for long-term marine connections?

A: A bolt-type Bow Shackle is safer for mooring or anchor-to-chain connections because it resists vibration loosening.

Q: When should marine shackles be replaced?

A: Replace shackles showing deep corrosion, bent pins, damaged threads, cracks, deformation, or significant bearing-surface wear.
