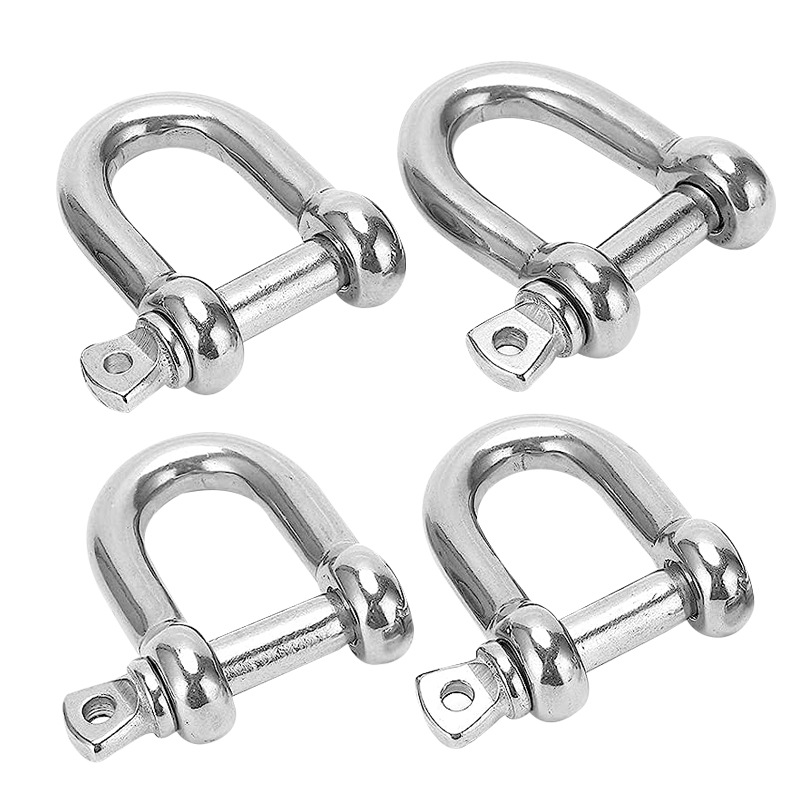

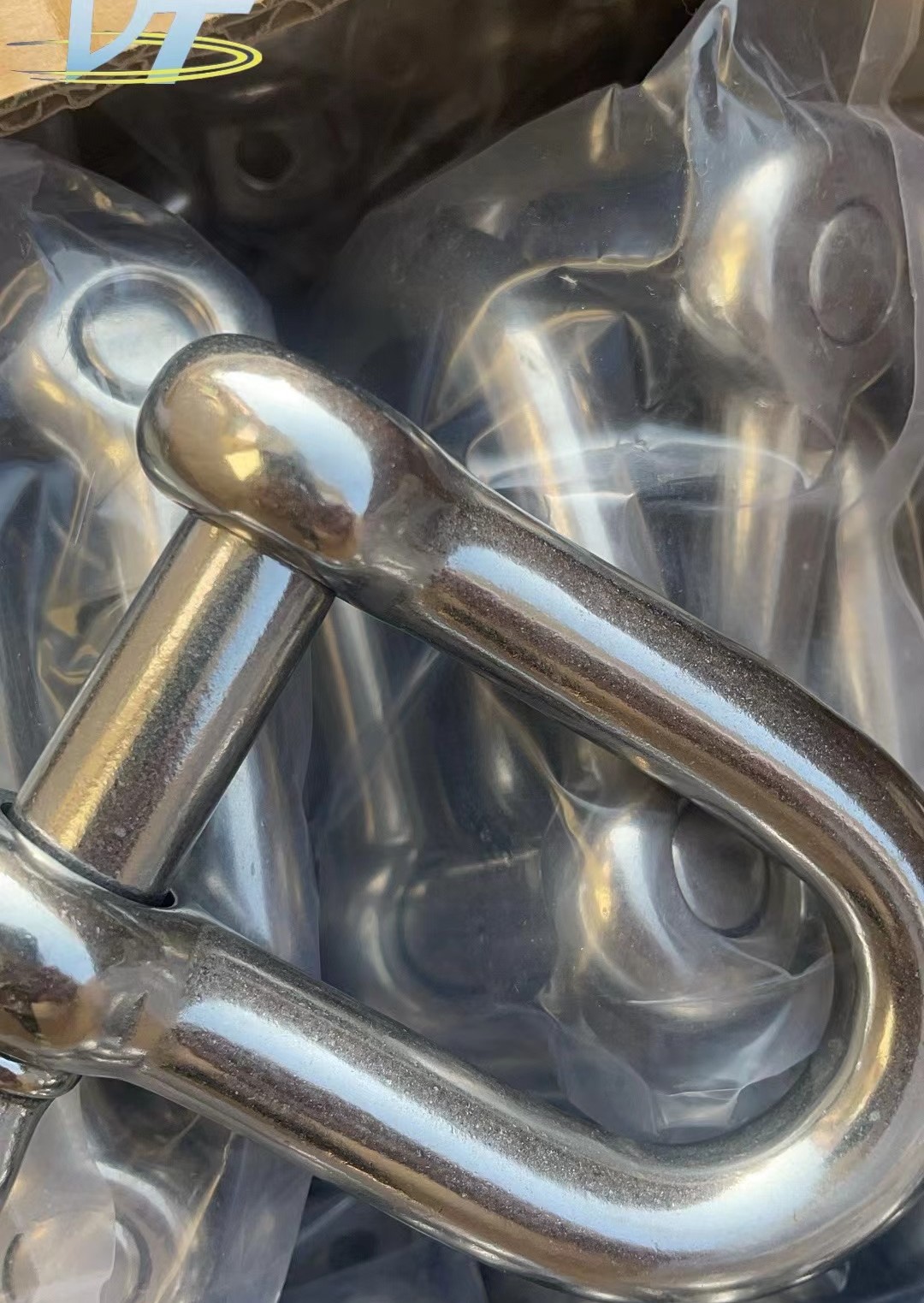

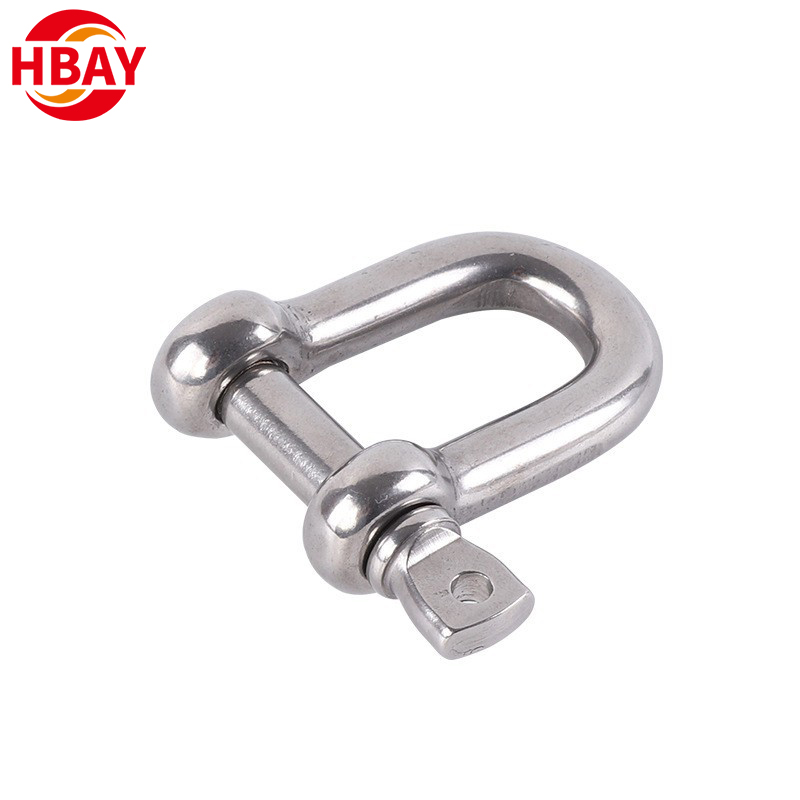

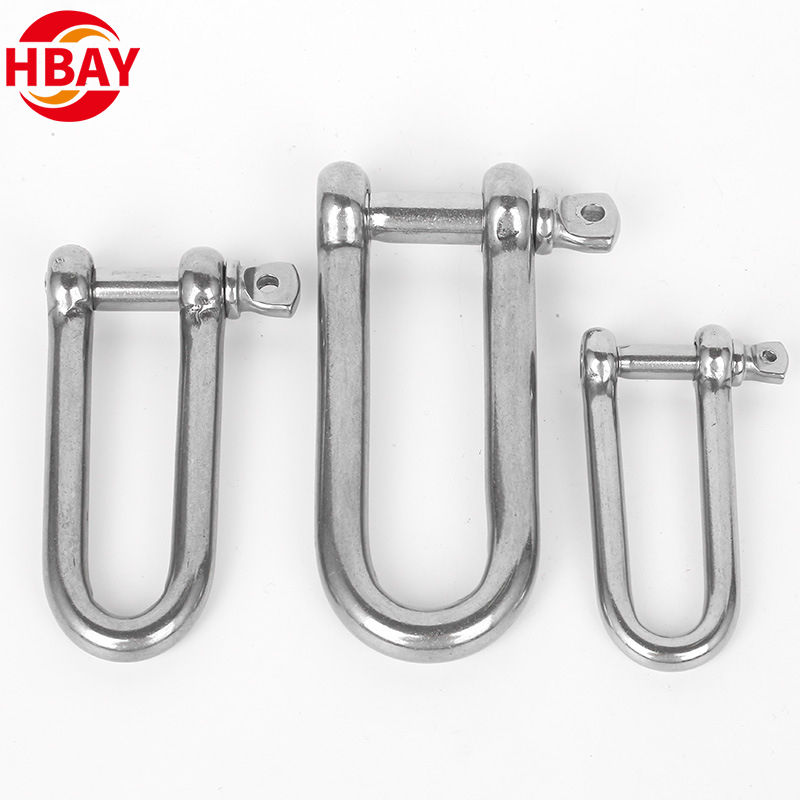

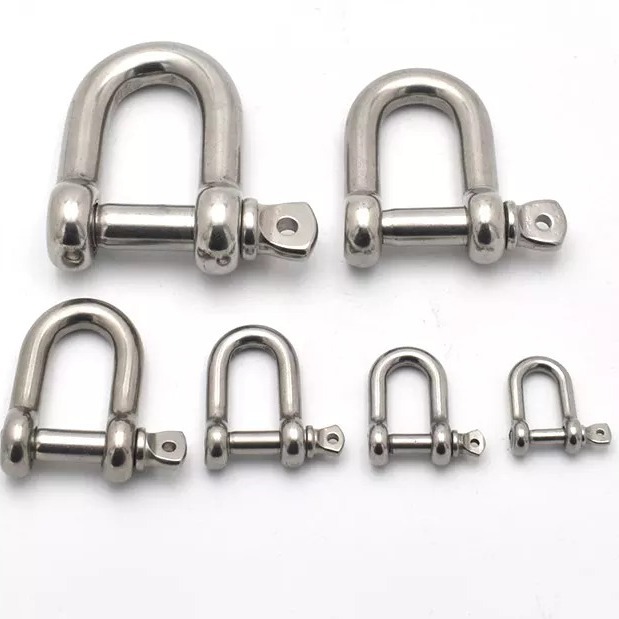

Rigging Stainless Steel D Type Shackles G210 Pin Chain Dee Shackle for Mining Lifting

1. Excellent corrosion resistance

Material: Made of AISI 316/316L stainless steel (marine grade), it has strong corrosion resistance and is suitable for: humid and acidic industrial environments in seawater environments (ships, docks, offshore platforms), long-term outdoor exposure, and is not easy to rust or oxidize

2. High strength and safety

High load capacity: Strictly compliant with international standards such as ISO 2415 and DIN 3480, with clear rated working load (WLL) and high safety factor.

Reliable locking: bolt type or screw pin design to prevent accidental loosening and ensure safe lifting.

3. Wide range of application scenarios

Ship shipping: Mooring, rigging, lifting equipment.

Engineering construction: crane, sling connection, steel structure installation.

Industrial field: equipment handling, pipeline fixation, mining machinery.

Outdoor facilities: curtain wall support, decorative engineering and other aesthetic demand scenarios.

4. Durability and Long Life

Wear resistance: Surface polishing treatment to reduce rope wear.

Temperature adaptation: Stable performance in environments ranging from -20 ° C to+200 ° C.

Maintenance free: No need for frequent oiling or rust prevention treatment, reducing usage costs.

5. Convenient design and installation

Quick operation: The screw pin can be tightened by hand without the need for tools (some models).

Strong compatibility: Suitable for various rigging such as steel wire ropes, slings, chains, etc.

6. Certification and Quality Assurance

Provide third-party testing reports through certifications such as CE, DNV, ABS, etc.

1. Material & Specifications

• Material: AISI 316/316L Stainless Steel (Marine Grade)

• Standard: ISO 2415, DIN 3480, ASME B30.26

• Finish: Polished / Matte (Anti-Scratch)

• Type: Screw Pin (G210) / Bolt Type (Optional)

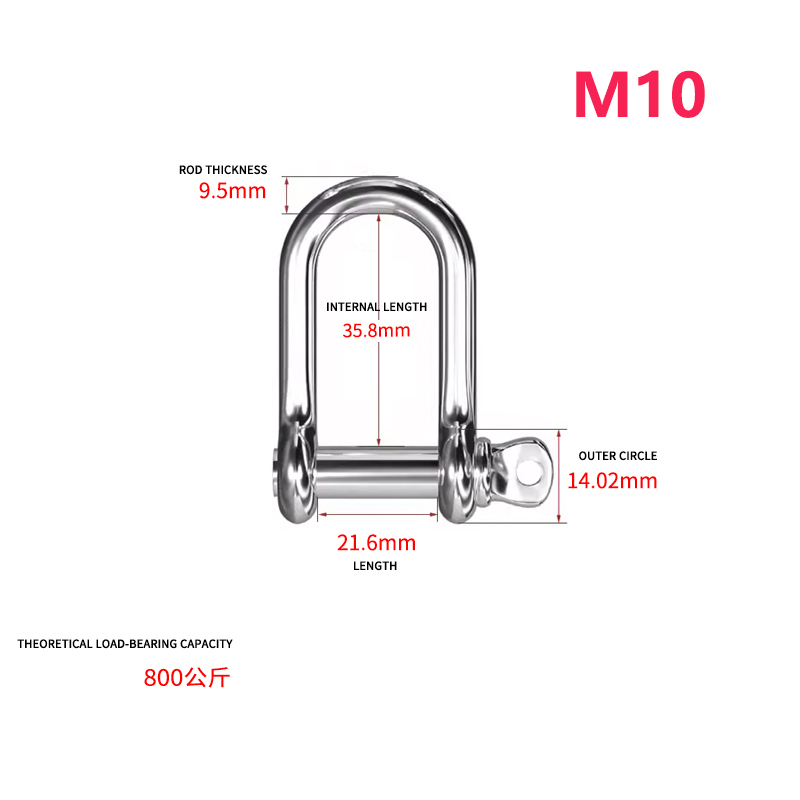

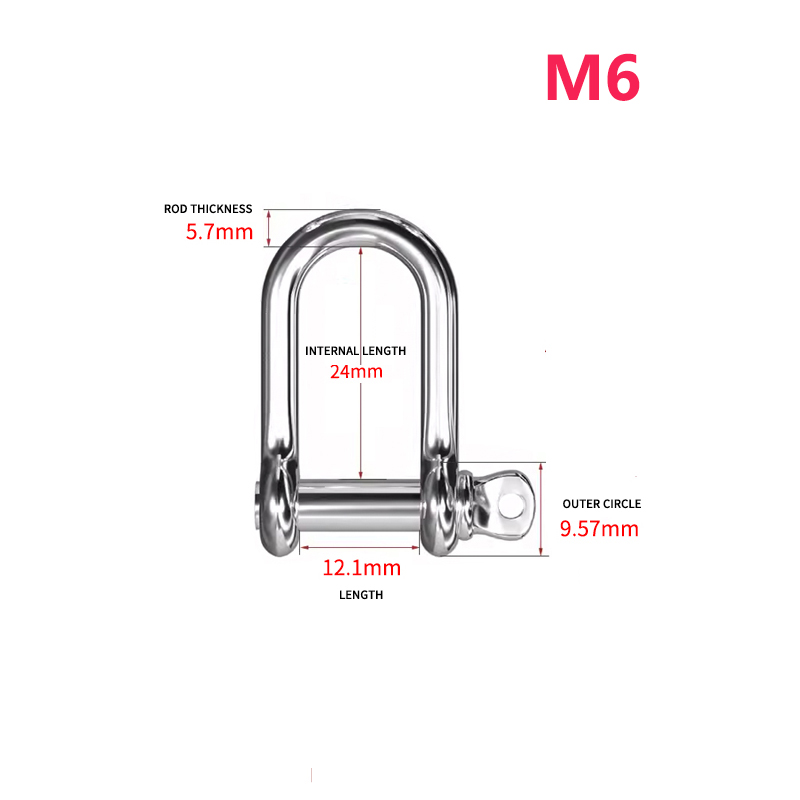

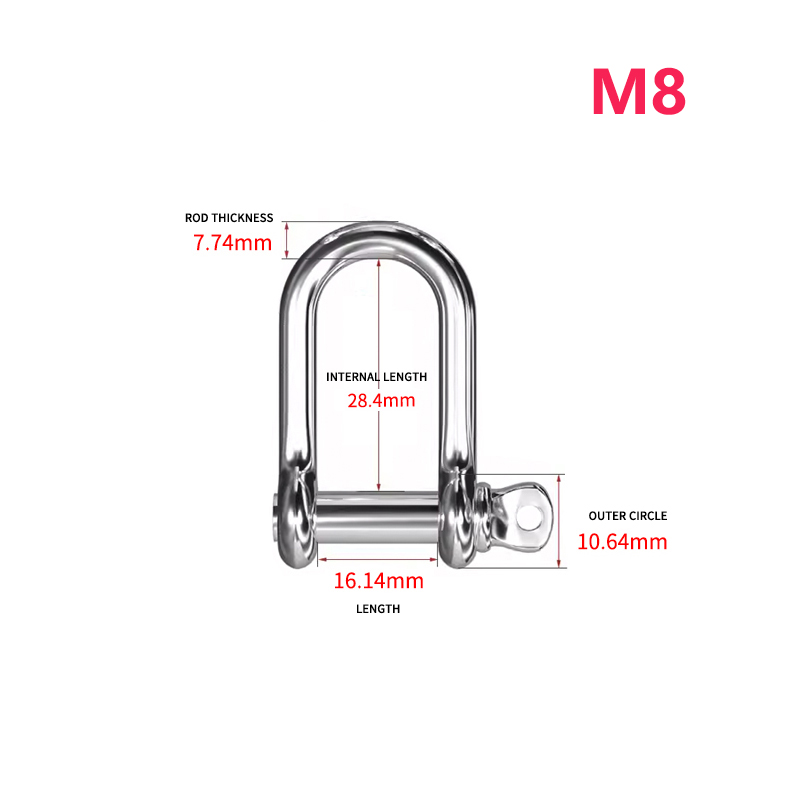

2. Load Capacity & Dimensions

1. Marine & Offshore Applications

✅ Boat Rigging & Sailing – Used for sailboat hardware, mast fittings, and rigging connections.
✅ Mooring & Docking – Secures ropes, chains, and cables in docks, piers, and floating platforms.
✅ Fishing & Aquaculture – Connects nets, buoys, and trawl lines in saltwater environments.
✅ Offshore Oil & Gas – Ideal for subsea lifting, buoyancy modules, and platform rigging.

2. Construction & Lifting

✅ Crane & Hoist Operations – Connects slings, cables, and hooks for heavy lifting.
✅ Scaffolding & Suspension – Secures support structures in high-rise construction.
✅ Bridge & Infrastructure – Used in cable-stayed bridges and structural tie-downs.
✅ Tower & Wind Turbine Maintenance – Supports rigging for equipment installation and repairs.

3. Industrial & Manufacturing

✅ Material Handling – Connects chains, straps, and lifting beams in warehouses.
✅ Mining & Quarrying – Secures heavy loads in rugged, high-wear environments.
✅ Pulp & Paper Industry – Resistant to moisture and chemicals in processing plants.
✅ Power Plants & Refineries – Used in pipe supports, cable management, and maintenance rigging.

4. Transportation & Automotive

✅ Towing & Recovery – Attaches winch cables and recovery straps for vehicles.
✅ Cargo Securing – Locks down containers, trailers, and heavy equipment.
✅ Railway & Aviation – Used in maintenance rigging and ground support equipment.

5. Outdoor & Architectural Uses

✅ Zip Lines & Adventure Parks – Provides secure connections for high-load activities.
✅ Stage & Event Rigging – Safely suspends lighting, sound systems, and banners.
✅ Architectural Hardware – Used in glass facades, tension structures, and decorative installations.

1. What is the Working Load Limit (WLL) of the G210 shackle?

The WLL varies by size (see product parameters), with a typical safety factor of 6:1 (Breaking Load = 6 × WLL). For example:

• 10mm shackle: WLL = 1.2 tons | Breaking Load = 7.2 tons

• 20mm shackle: WLL = 5.0 tons | Breaking Load = 30.0 tons

2. Can the G210 shackle be used in saltwater environments?

✅ Yes! Its 316 stainless steel construction provides excellent resistance to saltwater corrosion, making it ideal for marine and offshore use.

3. Can I customize the G210 shackle with laser engraving?

✅ Yes! We offer laser engraving for WLL markings, logos, or batch numbers upon request.

4. How do I choose the right shackle size for my application?

✔ Load requirements (WLL should exceed max expected load).
✔ Compatibility with ropes, chains, or slings.
✔ Environmental conditions (corrosive, high-temp, etc.).
