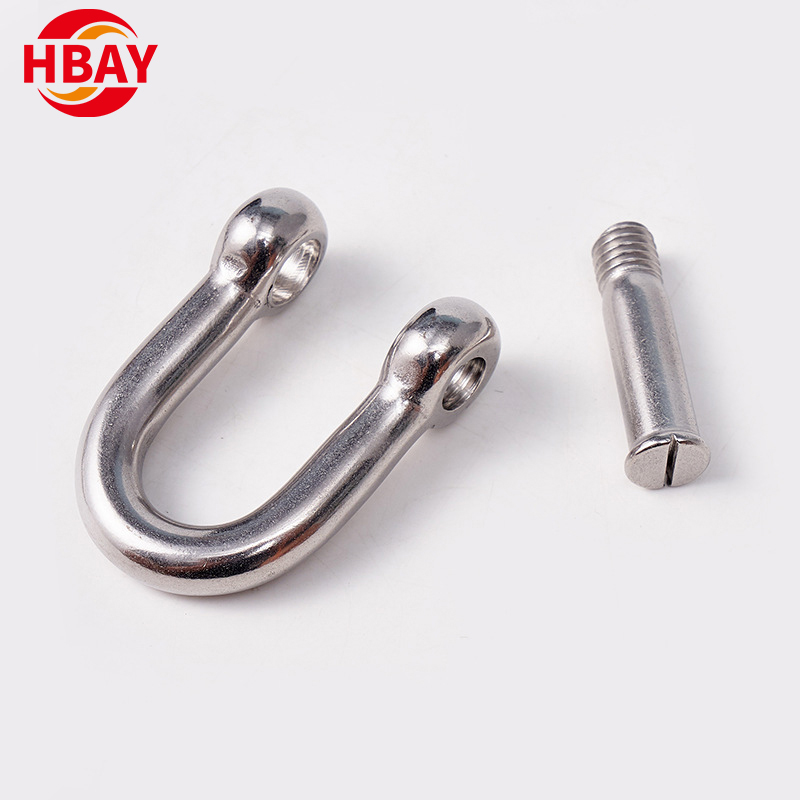

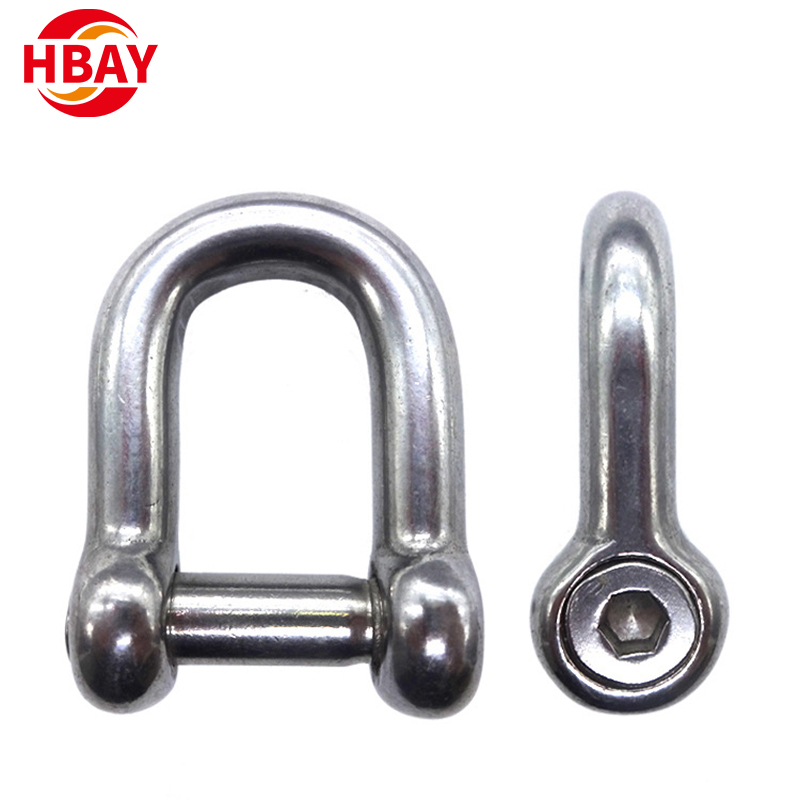

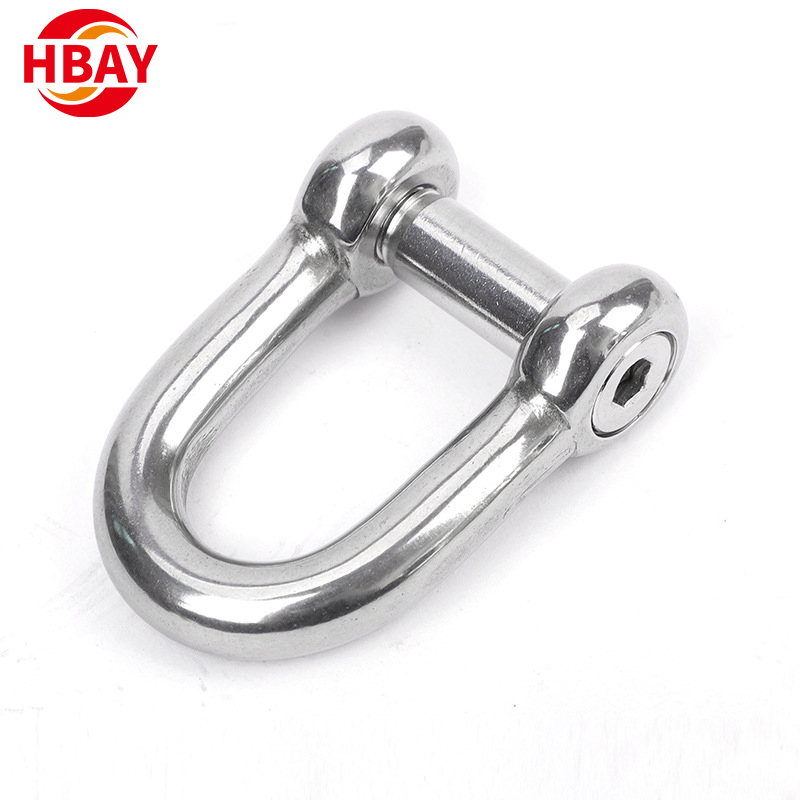

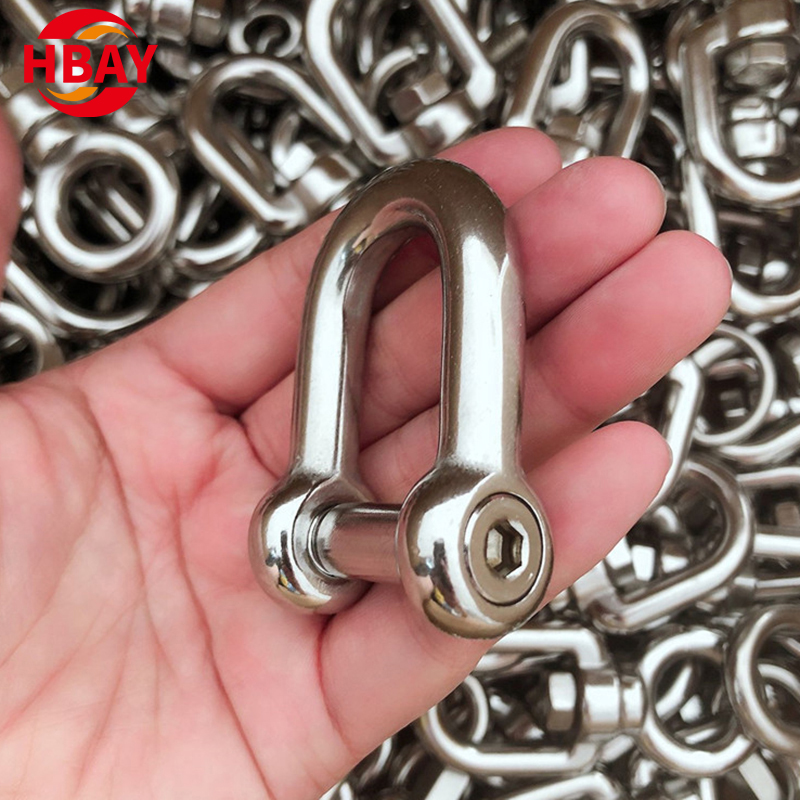

Rigging Hardware 304/316Stainless Steel Hexagon Pin Polished D Shackle European Type D Shackle

1. Superior Strength & Durability

• Made from high-grade stainless steel (304 or 316), ensuring excellent resistance to corrosion, rust, and harsh environments (saltwater, chemicals, UV exposure).

• Hexagon pin design provides a more secure fit and higher load-bearing capacity compared to standard round pins.

2. Enhanced Safety & Reliability

• Polished finish reduces friction and wear, improving longevity.

• Smooth, rounded edges prevent damage to ropes, cables, or slings.

• Secure locking mechanism (threaded or captive pin) prevents accidental loosening under load.

3. Versatile Applications

• Ideal for marine, sailing, towing, lifting, and rigging due to high corrosion resistance.

• Suitable for construction, forestry, and industrial use where strength and durability are critical.

4. Aesthetic Appeal

• Polished finish provides a sleek, professional look, making it suitable for visible applications (e.g., yacht rigging, architectural uses).

5. Easy Maintenance

• Stainless steel resists pitting and staining, requiring minimal upkeep.

• Can be easily cleaned with mild soap and water.

6. Compliance with Standards

• Often meets or exceeds international standards (e.g., ISO 2415, DIN 82101) for quality and safety.

1、Comparison with Standard D Shackles

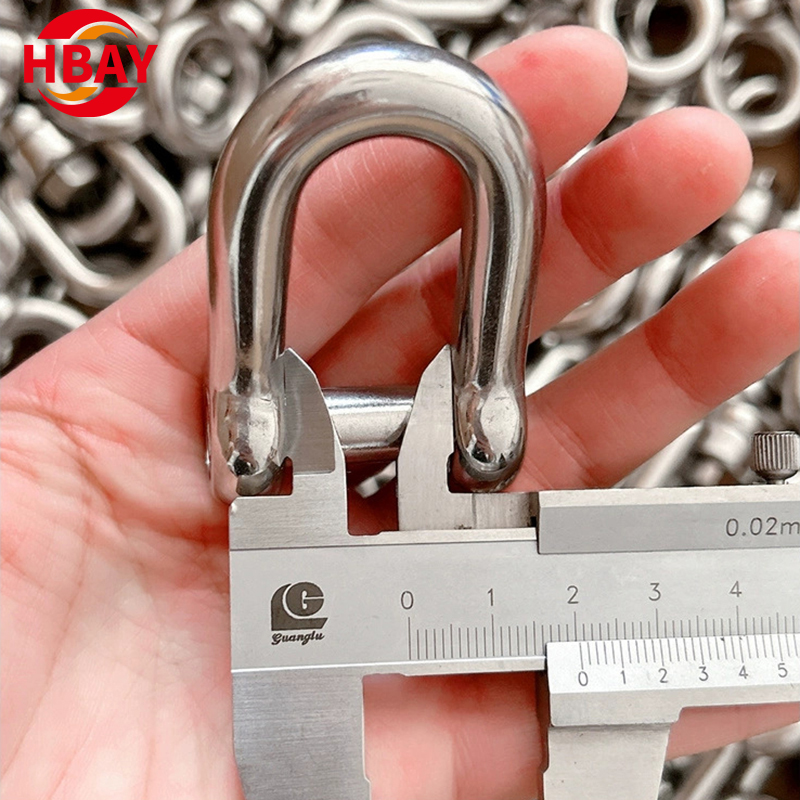

2、Size & Dimensions (Common Range)

Stainless Steel Hexagon Pin Polished D Shackle – Product Applications

1. Marine & Offshore

✔ Boat Rigging & Sail Control – Secure sails, sheets, and halyards.
✔ Mooring & Anchoring – Connect anchor chains, ropes, and dock lines.
✔ Deck Hardware – Pulleys, winches, and lifeline attachments.
✔ Fishing & Aquaculture – Net rigging, buoy connections, and trawl systems.

2. Lifting & Rigging (Industrial/Construction)

✔ Crane & Hoist Systems – Secure slings, chains, and wire ropes.
✔ Scaffolding & Fall Protection – Anchor points for safety harnesses.
✔ Material Handling – Connect lifting straps in warehouses/logistics.
✔ Stage & Event Rigging – Secure trusses, lighting, and sound equipment.

3. Off-Road & Vehicle Recovery

✔ Winching & Towing – Attach recovery straps to trucks/SUVs.
✔ 4x4 & Overlanding – Secure spare tires, roof racks, and cargo.
✔ ATV/UTV Trail Rigging – Recovery points and accessory mounts.

4. Agriculture & Forestry

✔ Tractor & Farm Equipment – Link chains, tow hitches, and PTO shafts.
✔ Logging & Lumber Handling – Secure cables for dragging loads.

5. Decorative & Architectural

✔ Yacht & Luxury Boat Trim – Sleek, polished look for visible hardware.
✔ Fencing & Gates – Secure chains with an aesthetic finish.
✔ Interior Design – Industrial-chic decor (e.g., hanging lights, shelves).

6. Safety & Rescue Operations

✔ Climbing & Rappelling – Anchor points for ropes.
✔ Fire/Rescue Rigging – Secure harnesses and equipment.

Stainless Steel Hexagon Pin Polished D Shackle – Operation Guide

1. Pre-Use Inspection

✅ Check for Damage – Look for cracks, deformations, or corrosion.
✅ Verify Load Rating – Ensure the Working Load Limit (WLL) matches your application.
✅ Inspect Threads – Confirm the hexagon pin threads are clean and undamaged.
✅ Lubrication – Apply anti-seize grease (for marine/rust-prone environments).

2. Proper Installation

Step-by-Step Attachment

1. Align the Shackle – Position the D-shackle so the load pulls straight (avoid side-loading).

2. Insert the Hexagon Pin – Hand-tighten first to avoid cross-threading.

3. Secure with a Wrench – Use a hex key or spanner to fully tighten (prevents loosening under vibration).

4. Check Fit – Ensure the pin is flush and the shackle moves freely.

3. Loading & Usage Best Practices

✔ Center Loads – Always apply force in-line with the shackle (avoid angular stress).
✔ Avoid Side Loading – Can reduce strength by 50% or more.
✔ Dynamic Loads? – Use a higher safety factor (e.g., 6:1 instead of 4:1).
✔ Temperature Limits – Stay within -40°C to 400°C (for stainless steel integrity).

4. Maintenance & Storage

After Saltwater Use – Rinse with fresh water and dry.
Lubricate Threads – Prevents seizing (use marine-grade grease for 316 steel).
Store Properly – Keep in a dry place, away from chemicals.

1. What’s the difference between 304 and 316 stainless steel?

• 304 (A2): Good for general use, resists rust in mild environments.

• 316 (A4): Superior for saltwater, acids, and chemicals (ideal for marine/offshore).

2. Can I use this shackle for overhead lifting?

✅ Yes, if it meets rated WLL and safety standards (e.g., DIN/ISO). Always inspect before use.

3. How do I prevent the hex pin from loosening?

• Tighten with a wrench (hand-tight isn’t enough).

• For extreme vibration, use threadlocker or a safety wire.

4. Can I replace a round pin shackle with this hex pin version?

✅ Yes! Hex pins offer better grip and security, especially under vibration.

5. What’s the safety factor?

• Standard is 4:1 or 5:1 (e.g., 10T shackle breaks at ~40–50T).
