1. High - strength and Load - bearing Capacity

• Superior Material Selection: Clevis grab hooks are typically crafted from high - quality alloy steels, like quenched and tempered alloy structural steel. This choice of material endows them with exceptional tensile strength.

• Rigorous Manufacturing Standards: The manufacturing process adheres to strict industry norms. Through forging and precise heat treatment, the hooks achieve a fine - grained microstructure, enhancing their overall mechanical properties.

2. Excellent Safety Features

• Anti - Safety Latches: A key safety enhancement is the presence of anti - safety latches. These latches, often in the form of spring - loaded or flip - type mechanisms, close securely over the hook's opening once a rigging component is attached. This prevents accidental disengagement of the load during lifting, which is crucial in applications like port cargo handling. In busy port environments where containers are constantly being hoisted and moved, the safety latch ensures that the containers remain firmly attached to the hook, minimizing the risk of dangerous load drops.

3. Versatile Compatibility

• Wide Range of Rigging Compatibility: Clevis grab hooks can be easily paired with various types of rigging equipment, including lifting chains, wire rope slings, and synthetic slings. Their design allows for quick and secure attachment, making them a flexible choice for different lifting scenarios. For example, in a warehouse setting, they can be used interchangeably with chain slings for lifting heavy pallets of goods or with wire rope slings for more precise positioning of delicate equipment.

• Suitability for Multiple Lifting Equipment: They are compatible with a diverse range of lifting machinery, from overhead cranes and gantry cranes to electric hoists and manual chain hoists. This adaptability means that a single type of clevis grab hook can be used across different workplaces and applications, reducing the need for multiple specialized hooks and streamlining inventory management.

1. Industrial Manufacturing

• Workpiece Transfer: Used to lift and move heavy components (e.g., machine parts, molds, metal castings) between production lines, assembly stations, or storage areas. They often work with chain slings or electric hoists to streamline workflow.

• Equipment Maintenance: Assists in hoisting large machinery (e.g., motors, pumps) during installation, repair, or replacement, ensuring safe and precise positioning.

2. Construction and Infrastructure

• Material Hoisting: Lifts steel bars, steel beams, precast concrete panels, and cement bags to high-rise floors or designated construction points, paired with cranes or tower cranes.

• Temporary Rigging: Used in temporary structures (e.g., scaffolding installation, formwork support) to secure or adjust load-bearing components, ensuring stability during construction.

3. Logistics and Warehousing

• Loading/Unloading: Facilitates the lifting of palletized goods, containers, or bundled packages (e.g., cartons, pipes) onto trucks, trains, or storage racks, often 配合 forklifts or gantry cranes.

• Inventory Management: Helps rearrange heavy items in warehouses, enabling quick relocation of stock to maximize storage space.

4. Ports and Marine Operations

• Cargo Handling: Used in port cranes to lift containers, bulk cargo (e.g., coal, grain), or heavy machinery onto ships or docks. Stainless steel or galvanized clevis grab hooks are preferred here for their resistance to saltwater corrosion.

• Ship Maintenance: Assists in hoisting ship parts (e.g., propellers, hull sections) during repair or docking operations.

5. Mining and Heavy Industry

• Ore Transportation: Lifts mined ores, rocks, or mineral concentrates from extraction points to processing plants or transport vehicles, paired with robust chain slings.

• Machinery Moving: Moves large mining equipment (e.g., excavators, crushers) within mining sites, ensuring safe transport over uneven terrain.

6. Emergency Rescue

• Vehicle Recovery: Used with winches or cranes to pull trapped vehicles (e.g., cars, trucks) out of ditches or collapsed structures.

• Debris Removal: Helps lift and clear heavy rubble or debris after earthquakes, floods, or building collapses, aiding rescue teams in accessing survivors.

Product Operation Guide for Clevis Grab Hooks

1. Pre-Operation Inspection

2. Correct Connection Steps

• Step 1: Prepare the Load: Ensure the load is properly secured and balanced. For irregularly shaped objects, use additional slings or straps to prevent shifting during lifting.

• Step 2: Attach the Hook to Rigging:

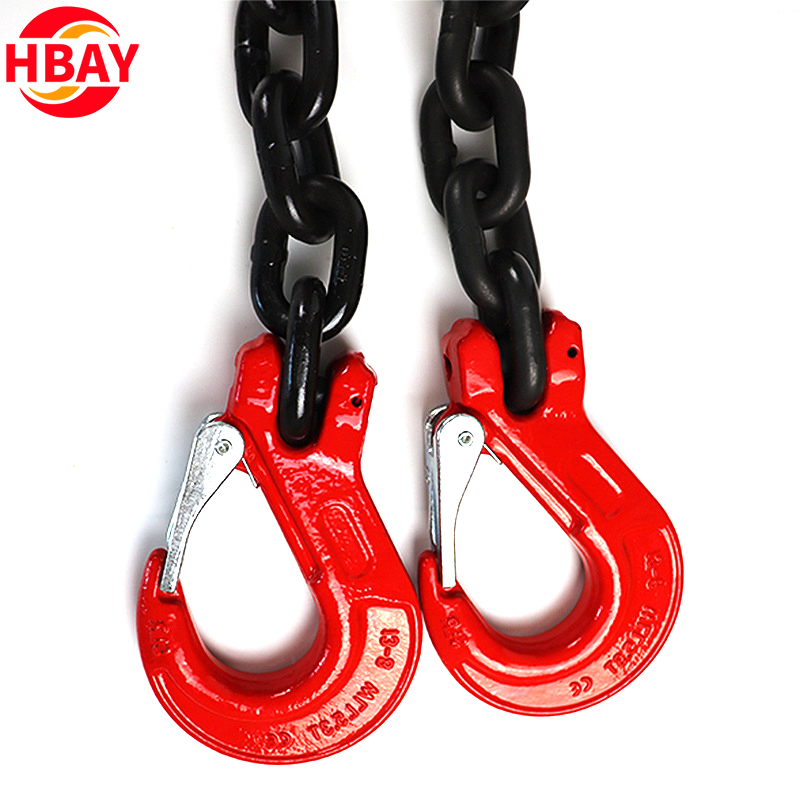

• For chain rigging: Insert the chain link into the hook’s opening, ensuring the link fully engages with the hook’s curve. Avoid partial hooking, which may cause the chain to slip.

• For clevis connection: Align the clevis hole of the hook with the hole of the lifting equipment (e.g., crane shackle), insert the clevis pin, and secure it with a cotter pin or nut to prevent the pin from falling out.

• Step 3: Engage the Safety Latch: If the hook has a safety latch, close it firmly after connecting the load or rigging. Ensure the latch presses against the load/rigging to block the opening, preventing accidental disengagement.

3. Lifting Operation

• Test Lift: Before full lifting, perform a “test lift” by raising the load 10-30cm off the ground. Pause to check:

• Whether the hook and rigging are securely connected (no slipping or loosening).

• Whether the load is balanced (no tilting or swinging).

• Whether the lifting equipment operates normally (no unusual noises or jolts).

• Formal Lifting: If the test lift is successful, proceed to lift the load smoothly. Avoid sudden starts, stops, or jerks, as these can create excessive impact forces on the hook.

• Load Positioning: Keep the load at a safe height (clear of obstacles and personnel) during movement. Do not drag the load across the ground, as this increases wear on the hook and rigging.

4. Post-Operation Steps

• Lower the Load Safely: Lower the load slowly and steadily to the target position. Ensure the load is fully supported (e.g., placed on a stable surface) before disconnecting the hook.

• Disconnect the Hook: Open the safety latch (if applicable) and carefully remove the hook from the rigging or load. Avoid forcing the hook, as this may damage the latch or hook body.

• Clean and Inspect: After use, clean the hook with a dry cloth to remove dirt, debris, or moisture (especially in corrosive environments like marine settings). Re-inspect for wear or damage, and store in a dry, ventilated area away from direct sunlight or extreme temperatures.

5. Prohibited Operations

• Do not use the hook to lift people or lift loads over occupied areas.

• Do not modify the hook (e.g., welding, grinding) to alter its shape or load capacity.

• Do not use the hook if it has been subjected to excessive impact (e.g., dropped from a height) or overloading, even if no visible damage is present.

• Do not twist, kink, or drag the rigging connected to the hook, as this can transfer abnormal stress to the hook.

6. Maintenance and Replacement

• Regular Lubrication: Apply lubricating oil to the safety latch pivot point (if applicable) to ensure smooth movement, especially in dusty or humid environments.

• Replacement Criteria: Replace the hook immediately if:

• The wear on the critical section exceeds 10% of the original thickness.

• The hook opening is enlarged by more than 15% of the original size.

• The hook is twisted by more than 10 degrees.

• Cracks are detected (even small ones) during inspection.

Additional FAQs about Clevis Grab Hooks

Q1: How often should clevis grab hooks be inspected?

• Pre-use inspection: Mandatory before every lift to check for visible damage, wear, or latch issues.

• Regular formal inspection: Conducted monthly (for frequent use) or quarterly (for occasional use) by a qualified inspector. This includes non-destructive testing (e.g., magnetic particle inspection) to detect hidden cracks.

• Annual certification: For hooks used in high-risk industries (e.g., ports, construction), annual certification by a third-party authority ensures compliance with safety standards.

Q2: What’s the difference between a clevis grab hook and a clevis slip hook?

• Clevis grab hook: Designed with a narrow, curved throat to "grab" and lock onto specific chain links, preventing sliding. Ideal for fixed connections (e.g., securing slings to loads).

• Clevis slip hook: Has a wider, smoother throat that allows chain links to slide through, making it suitable for adjustable connections (e.g., shortening or lengthening a chain sling).
  Choose based on whether the connection needs to be fixed or adjustable.

Q3: What should I do if the hook’s opening becomes enlarged during use?
