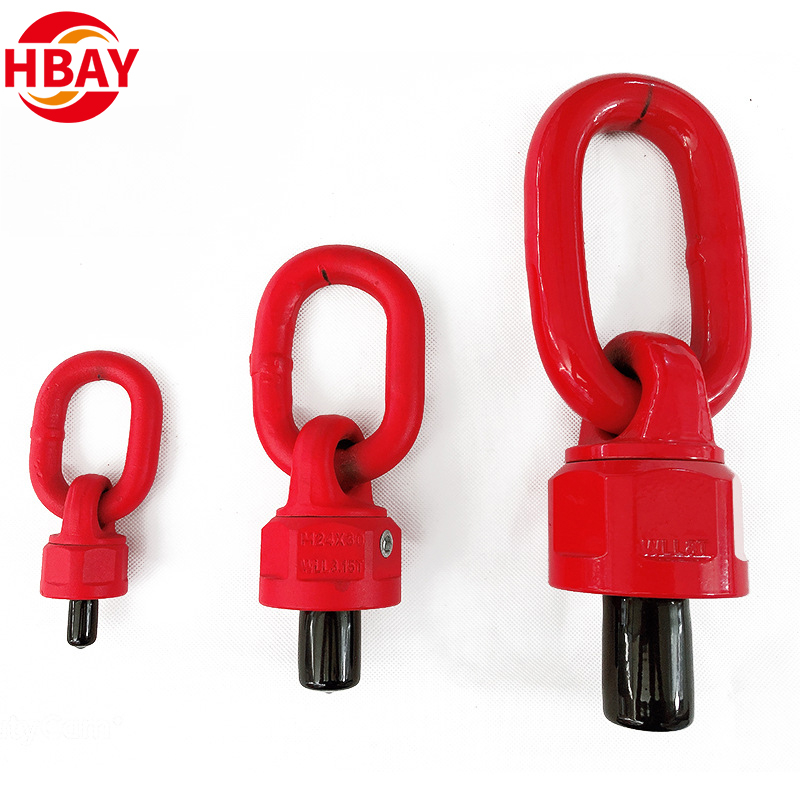

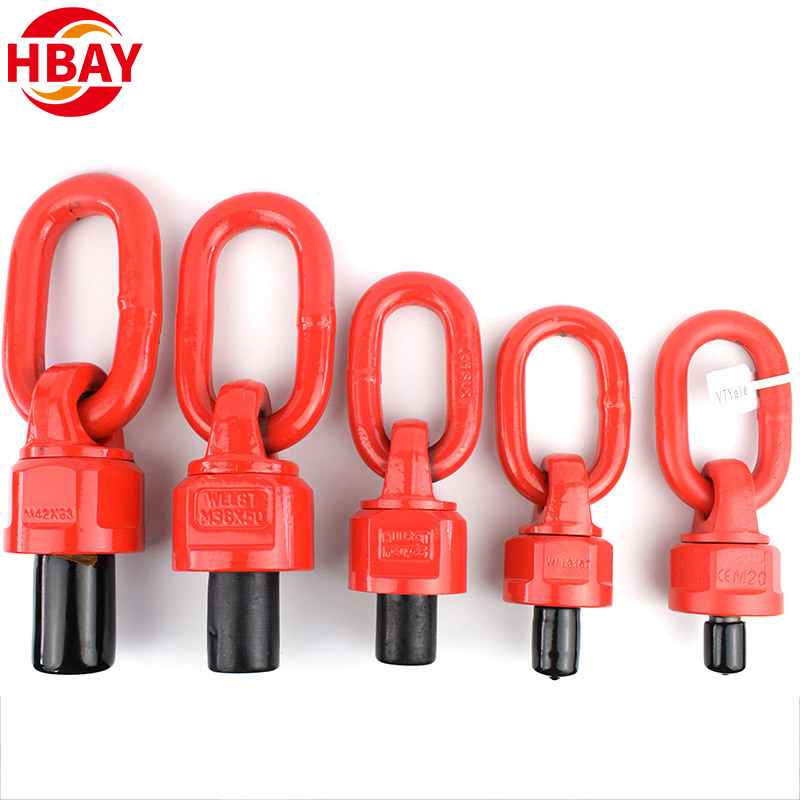

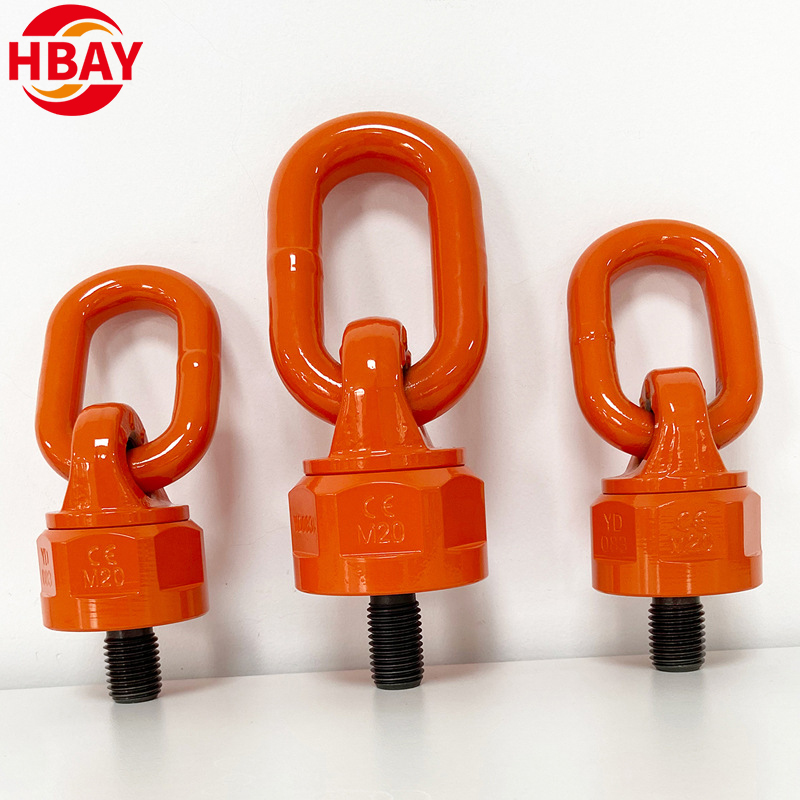

360 Degree Rotating Hoist Rings Swivel Lifting Eyes Bolt

Rotate the lifting ring. The rotating lifting ring is a key component used for lifting operations, with a 360 degree rotation function, which can effectively avoid the entanglement and twisting of steel wire ropes or chains during the lifting process. It is made of high-strength alloy materials and has excellent load-bearing capacity and fatigue resistance. It is widely used in lifting and handling scenarios in industries such as machinery manufacturing, molds, ships, and automobiles, ensuring the safety and efficiency of lifting operations. It is an important component in lifting equipment to ensure smooth lifting of heavy objects.

Availability:

Quantity:



Inquire Add to Basket

Product Advantage

1. High Load - Bearing Capacity

Made of high - strength alloy steel, these rotating lifting rings have an impressive load - bearing range. For example, the medium - sized model can bear up to 10 tons, and the large one even reaches 20 tons. Such high strength ensures they can handle heavy - duty lifting tasks in industries like machinery manufacturing and shipbuilding with ease.

2. 360° Rotation Function

Featuring a 360 - degree free rotation design, these lifting rings effectively prevent the winding and twisting of steel wires or chains during lifting operations. This not only enhances the safety of the lifting process but also improves the efficiency of material handling, making them ideal for scenarios that require flexible lifting angles.

3. Excellent Durability

Thanks to the special heat - treatment process on the alloy steel material, these rotating lifting rings exhibit outstanding anti - fatigue performance. They can withstand more than 10,000 times of repeated lifting operations without obvious wear, greatly extending their service life and reducing the frequency of replacement for enterprises.

Keywords and Long - Tail Keywords

Rotating lifting ring
High - strength rotating lifting ring
360° rotating lifting ring for heavy - duty
Durable rotating lifting ring
Rotating lifting ring with high load capacity

Product Parameters

Swivel Lifting Eye – Technical Parameters

Category	Parameter	Standard Range	Remarks
Load Capacity	Working Load (WLL)	0.5T ~ 30T (or custom higher)	Safety factor ≥1.5 recommended
	Breaking Load (MBL)	Typically 4-5× WLL	Static test standard
Rotation	Horizontal Rotation	360° unlimited swivel	Prevents cable twisting
	Tilt Angle	0°~180° (common: 45°, 90°)	Model-dependent
Material	Body Material	Alloy Steel (42CrMo), Stainless (304/316)	SS for corrosion resistance
	Surface Finish	Zinc-plated, Chrome, Black Oxide, Painted	Anti-rust/chemical resistance

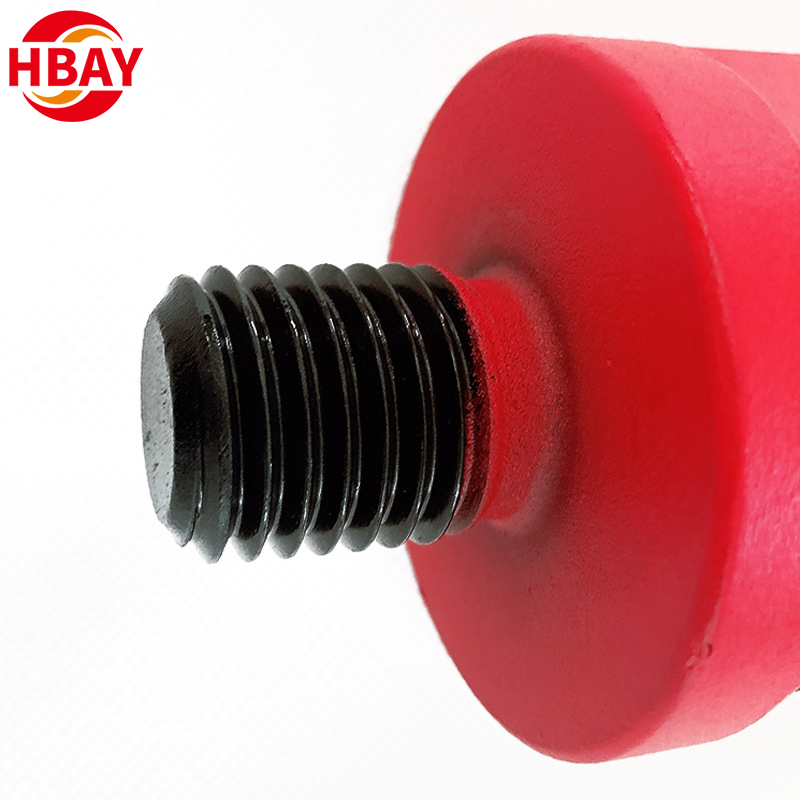

Mounting	Bolt-On Type	Thread Size: M8~M64 (or UNC/UNF)	Requires pre-drilled holes
	Weld-On Type	Base Thickness: ≥10mm (load-dependent)	Professional welding required
Dimensions	Total Height (H)	50mm ~ 300mm (model-specific)	Installation space consideration
	Eye Diameter (D)	15mm ~ 80mm	Compatible with hooks/straps
Certifications	Standards	ISO 8752, CE, ASME B30.26, DNV.GL	Marine/wind energy compliance
Temperature	Operating Range	-40°C ~ +200°C (high-temp: up to +400°C)	Low-temp anti-embrittlement

Product Applications

1. Industrial Machinery & Equipment Handling

Machine Tool Installation – Safe lifting of CNC machines, presses, and molds.
Heavy Equipment Maintenance – Swivel function allows easy positioning during repairs.
Factory Relocation – Adjustable angle reduces stress on rigging during transport.

2. Wind & Energy Sector

Wind Turbine Assembly – Used for lifting rotor blades, nacelles, and tower sections.
Solar Panel Installation – Enables precise alignment during mounting.
Power Plant Maintenance – Ideal for handling turbines, transformers, and generators.

3. Marine & Offshore Applications

Shipbuilding & Repair – Lifting engines, propellers, and ship components.
Offshore Rigging – Corrosion-resistant (316 stainless steel) models for saltwater use.
Container Handling – Secures cargo with 360° rotation to prevent sling twisting.

4. Automotive & Aerospace

Aircraft Component Handling – Engine and wing assembly with controlled rotation.
Vehicle Manufacturing – Lifting car frames, engines, and heavy assemblies.
Rescue & Recovery – Used in towing and recovery of trucks, buses, and military vehicles.

5. Construction & Infrastructure

Steel Structure Erection – Lifting beams, columns, and prefabricated modules.
Bridge & Dam Construction – Adjustable angle for complex rigging setups.
Concrete Precast Handling – Safe lifting of heavy concrete elements.

6. Logistics & Warehousing

Heavy Cargo Transport – Secures machinery, industrial parts, and oversized loads.
Warehouse Lifting Systems – Integrated into overhead cranes for flexible load handling.

7. Specialized Applications

Mining & Heavy Industry – Rugged models for harsh environments.
Railway Maintenance – Lifting rail tracks, locomotives, and carriages.
Entertainment & Stage Rigging – Adjustable load positioning for lights and equipment.

Why Choose Swivel Lifting Eyes?

✔ 360° Rotation – Prevents sling twisting and reduces wear.
✔ High Load Capacity – Supports up to 30T+ (depending on model).
✔ Safety Compliant – Meets ISO, CE, ASME, DNV.GL standards.
✔ Corrosion-Resistant Options – Stainless steel for marine/chemical use.

Product Operate Guide

1、Inspection Before Use:

Thoroughly check the rotating lifting ring for any signs of damage, such as cracks or deformations. Also, ensure all components are tightly connected.

2、Proper Connection:

Securely attach the lifting ring to the load and the lifting equipment. Make sure the connection is firm to prevent any slippage during operation.

3、Lifting Operation:

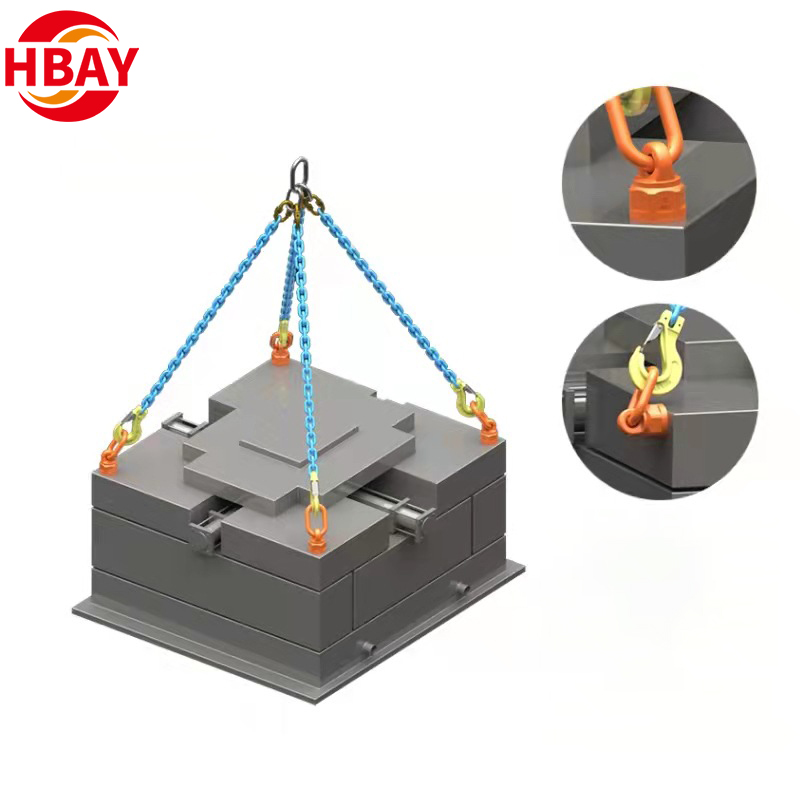

When lifting, ensure the load is balanced. Utilize the 360° rotation feature to avoid twisting of the lifting ropes or chains. Lift the load smoothly and avoid sudden jerks.

4、Post - Operation Check:

After use, inspect the lifting ring again for any wear or damage. Store it in a dry and clean place to maintain its performance for the next use.

FAQ

Swivel Lifting Eye – Frequently Asked Questions (FAQ)

1. What is the difference between a standard lifting eye and a swivel lifting eye?

Standard Lifting Eye: Fixed, no rotation, best for straight vertical lifts.
Swivel Lifting Eye: Allows 360° rotation + tilt, reducing sling/chains twisting and enabling multi-angle lifts.

2. Can I side-load a swivel lifting eye?

No! Swivel eyes are designed for vertical lifting. Side-loading can reduce capacity by 50%+ and cause failure. Always center the load.

3. How do I know the Working Load Limit (WLL)?

Check the engraved marking on the product (e.g., "WLL 5T"). Never exceed this limit—include a safety factor (usually 1.5x expected load).

4. Can I weld a bolt-on swivel lifting eye?

No! Bolt-on types require threaded installation. Welding can weaken the material and void certifications. Use weld-on models if needed.
