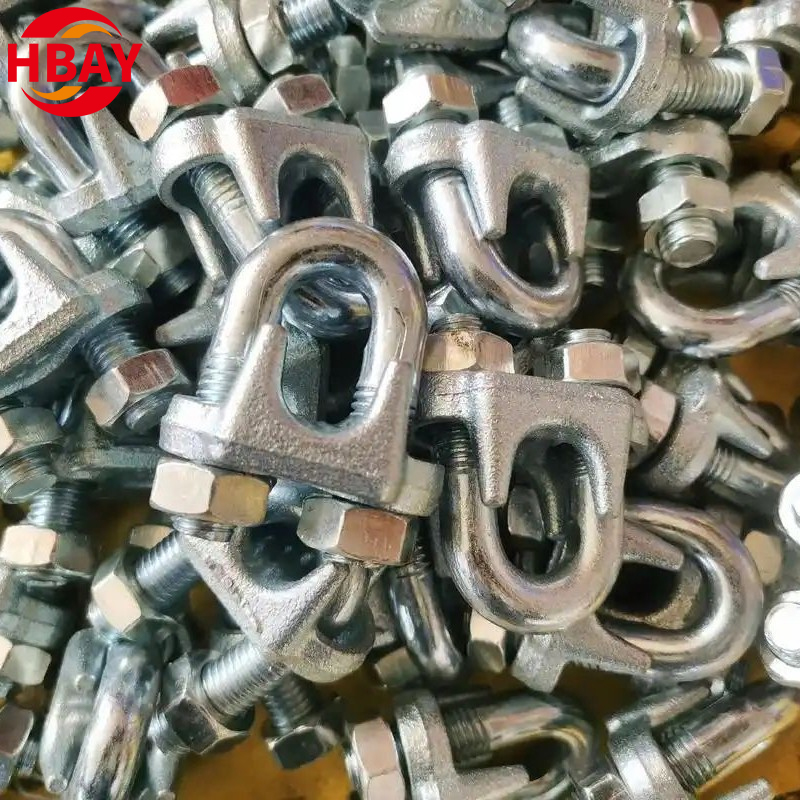

DIN741 Galvanized US Type Wire Rope Clips Malleable Wire Clamp

Forged from premium 45# carbon steel, these heavy-duty DIN741 wire rope clips undergo advanced quenching and tempering processes to achieve superior structural integrity. The material delivers a remarkable tensile strength exceeding 800MPa, which is approximately 30% higher than standard carbon steel alternatives available in the market. This enhanced strength directly translates to higher safety margins for demanding lifting and rigging operations. After rigorous professional testing, the clamps have proven to withstand over 50,000 vibrations without any signs of looseness under rated load conditions. This ensures long-term, reliable performance, significantly reducing the risk of equipment failure and minimizing replacement frequency for your projects.

Complete Specifications and Wide Adaptability

To meet diverse engineering and rigging requirements, our galvanized wire rope clips are manufactured in a comprehensive range of sizes. The standard models cover specifications from M4 to M48, making them highly suitable for securing steel wire ropes with diameters ranging from 6mm to 60mm. This extensive adaptability ensures that procurement teams can source the exact dimensions needed for various applications, including industrial traction, suspended platforms, and general fastening tasks. Furthermore, we support custom specifications to accommodate specialized fixing requirements across different sectors, providing a highly flexible supply solution that aligns with your specific operational demands.

Anti-Slip Design for Efficient Fastening

The core functionality of a wire rope clip relies on its gripping capability. Our clips feature a precision-engineered U-bolt that tightly matches the saddle, incorporating a specialized anti-slip serrated pattern on the inner contact surface. This critical design enhancement increases the gripping friction by 40%, ensuring the steel wire rope is firmly clamped without any risk of dangerous slipping. When correctly installed according to standard procedures, testing confirms that the clamping force can reach up to 80% of the breaking force of the steel wire rope itself. This level of secure fastening far exceeds standard industry benchmarks, offering unparalleled stability and peace of mind for critical load-bearing applications.

Anti-Corrosion and Wear-Resistant for Long-Lasting Protection

For outdoor, marine, and heavy industrial environments, corrosion resistance is a primary concern for procurement. The surface of our malleable wire clamps undergoes a specialized hot-dip galvanizing treatment, achieving a dense zinc layer thickness of ≥ 85 μm. In rigorous laboratory evaluations, these clips exhibited absolutely no rust formation even after enduring more than 1,000 hours of salt spray testing. This reliable anti-corrosion barrier provides long-lasting protection against harsh environmental factors, including high humidity, acidity, and alkalinity. Compared to standard commercial coatings, our galvanized finish extends the functional service life by more than twice, significantly reducing ongoing maintenance costs and the need for frequent hardware replacements.

The following technical specifications and dimensional data for DIN741 Galvanized US Type Wire Rope Clips are provided to assist engineers and procurement professionals in accurate product selection. Please ensure the selected model strictly matches your wire rope diameter and working load requirements.

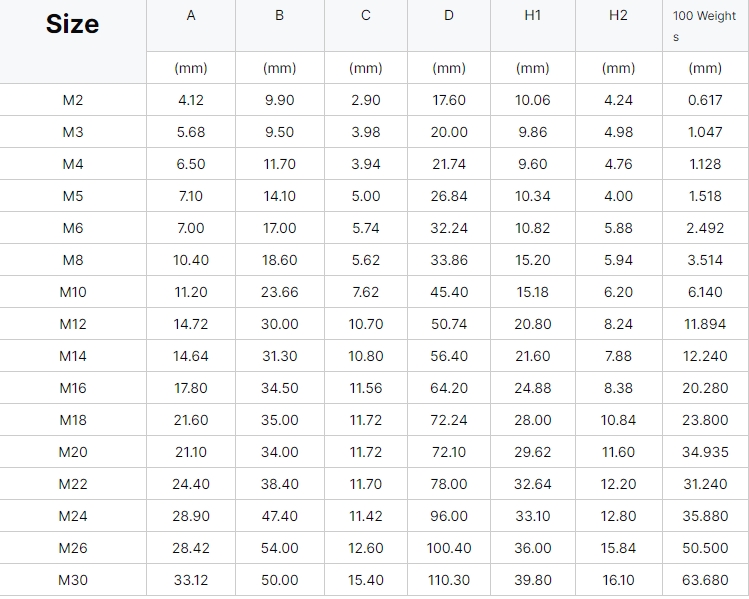

General Technical Parameters

Dimensional and Load Data (Models K-3 to K-6)

Construction and Lifting Equipment

DIN741 galvanized malleable wire rope clips are widely utilized for securing wire rope ends in critical heavy-duty equipment, including tower cranes, industrial elevators, and construction scaffolding. Their robust strength and wear resistance ensure maximum safety during heavy lifting operations, particularly in scenarios involving frequent dynamic loads. Proper installation with standard spacing and regular bolt tightening checks are essential to maintain structural integrity and prevent slippage on construction sites.

Ship and Ocean Engineering

In marine environments, galvanized wire rope clamps provide reliable corrosion resistance for dock mooring systems, ship cranes, and offshore platform rigging. The sturdy U-bolt and saddle design enhances tensile strength, making these clamps highly suitable for securing anchor chains and managing towing operations under high-load conditions and extreme weather. Their durable galvanized coating helps mitigate the effects of saltwater exposure, ensuring long-term reliability.

Mining and Transportation Machinery

Mining hoists, heavy-duty conveyor belts, and cableway systems rely heavily on secure steel wire rope clamps to connect key stress nodes. Our malleable iron galvanized clamps deliver excellent impact resistance and rust protection, making them ideal for dust-filled and highly humid mining environments. Selecting the correct clip size that matches the rope diameter is crucial to avoid clamp deformation caused by operational overloads.

Power and Communication Towers

These wire clamps are essential for fixing guy wires and cables in high-voltage power transmission towers and telecommunication signal towers, ensuring structural stability against strong winds. The galvanized surface treatment allows the fixtures to resist outdoor ultraviolet degradation and rainwater erosion over extended periods. During installation, balancing the force by orienting the rope clamps in the correct direction is vital for maintaining tower safety.

Agricultural and Forestry Machinery

For tractor towing ropes and logging lifting equipment, malleable wire rope clips offer a fast, reliable, and cost-effective connection solution. Their practical design facilitates efficient field operations and quick adjustments. To ensure continuous optimal performance in agricultural settings, regular lubrication of the U-bolts and nuts is recommended to prevent rusting and mechanical jamming.

Emergency Rescue and Military Operations

In demanding scenarios such as the deployment of rescue ropes and the construction of military floating bridges, high-strength wire rope clamps must withstand sudden impact loads and harsh conditions. The reliable clamping mechanism meets the strict requirements for quick assembly and disassembly, providing secure fastening when time and safety are critical.

Product Operation Guide: 5-Step Installation

To ensure maximum safety and performance, please follow this professional step-by-step installation guide for DIN741 wire rope clips:

• Step 1: Check Products and Tools
  Verify the model carefully. Ensure that the selected wire rope clamp perfectly matches the diameter of the wire rope (allowing for a strict error margin of ± 1mm). Prepare the necessary tools before starting: a calibrated torque wrench, appropriate lubricant (optional but recommended for threads), heavy-duty work gloves, and standard safety gear.
• Step 2: Determine the Installation Location
  Identify the active end and dead end of the cable. The saddle (base) of the clamp must be pressed against the "active end" (the force-bearing side) of the wire rope, while the U-bolt must face the "dead end" (the short, fixed tail side). Ensure the spacing requirement is met: the distance between adjacent rope clamps should be 6-7 times the diameter of the steel wire rope (for example, maintain a 60-70mm spacing for a 10mm diameter rope).
• Step 3: Install the Rope Clamp
  For preliminary fixation, position the rope clamp onto the steel wire rope and manually tighten the nuts until you feel slight resistance. Follow a symmetrical arrangement rule: use at least 3 rope clamps for rope diameters ≤ 19mm. Distribute them evenly along the specified spacing and maintain a consistent direction for all clips (never alternate the U-bolt direction).
• Step 4: Tighten the Bolts
  Perform precise torque calibration. Operate using a torque wrench according to the standard tightening torque specifications (for instance, apply 15-20N·m for M8 bolts). After the initial tightening, conduct a secondary inspection by gently tapping the clamp seat to confirm that there is no looseness, offset, or improper seating.
• Step 5: Load Testing and Maintenance
  Always perform an empty load test before full operation. Gently pull the steel wire rope under a light load and carefully observe whether any of the rope clamps slide or shift. Implement a regular maintenance schedule: check the tightness of all bolts and inspect the wear of the clamp seats every month. If severe corrosion or deformation is detected, the clip must be replaced immediately to prevent safety hazards.

Definition: A wire rope clamp, also commonly known as a wire rope clip, is a specialized metal fixture designed to secure the loose end of a wire rope, or to connect and lock two wire ropes together. It typically consists of a saddle (clamp seat), a U-bolt, and two securing nuts.

Main Function: Its primary role is to tightly secure the end of the steel wire rope to prevent slipping or loosening under tension. This is essential for creating secure load-bearing eye loops in lifting, towing, securing cargo, and general bundling applications.

Q2. What are the main types of wire rope clamps available?

Wire rope clips can be categorized by their structural design and manufacturing material to suit different project requirements:

Classified by Structure:

• U-Bolt Clips: The most common configuration, combining a U-bolt with a saddle. It is highly suitable for general fixation and everyday securing tasks.
• Double Saddle Clips: Featuring flat saddle plates on both sides, this design minimizes crushing damage to the steel wire rope, making it ideal for applications requiring high-strength connections without compromising rope integrity.
• Drop Forged Rope Clamps: Manufactured through drop forging for superior strength and durability. These are typically used in heavy-duty lifting applications, such as in marine, construction, and mining industries.

Classified by Material:

• Carbon Steel Rope Clamps: Often galvanized (such as the DIN741 standard), providing an economical, universal, and durable solution for general industrial use.
• Stainless Steel Rope Clamps: Highly corrosion-resistant, making them the preferred choice for marine, chemical, and continuously humid environments.

Q3. How should I correctly choose a steel wire rope clamp for my project?

Selecting the right clamp is crucial for safety and optimal performance. Consider the following key procurement factors:

• Match the Wire Rope Diameter: The size of the rope clip must strictly correspond to the exact diameter of the steel wire rope. For example, a 10mm wire rope requires a 10mm rope clamp to ensure a secure, slip-free grip.
• Working Load Limit (WLL): The chosen clamp must meet the safety and load-bearing requirements of your specific application. Overloading is strictly prohibited to prevent structural failure.
• Usage Environment: Assess the working conditions. Galvanized carbon steel is suitable for general outdoor use, while stainless steel should be selected for harsh, corrosive environments to ensure long-term stability.

Q4. What are the basic principles for installing a steel wire rope clamp?

Proper installation is vital for maintaining the holding power of the wire rope assembly. The fundamental principles include:

• Correct Orientation: Always place the live end (the main load-bearing part) of the wire rope in the saddle, and the dead end (the short, cut end) against the U-bolt.
• Even Tightening: Secure the nuts evenly and firmly to ensure uniform pressure. (For detailed step-by-step instructions and specific torque values, please refer to the Application & Operation section.)
• Post-Installation Inspection: After initial installation and applying the first load, always re-tighten the nuts and inspect the clamps to ensure no sliding or loosening has occurred during operation.
